>>M<< Tab Washer/Tie Rod Installation

After installing the tie rod to the rack, fold tab washer end (two locations) to tie rod notch.

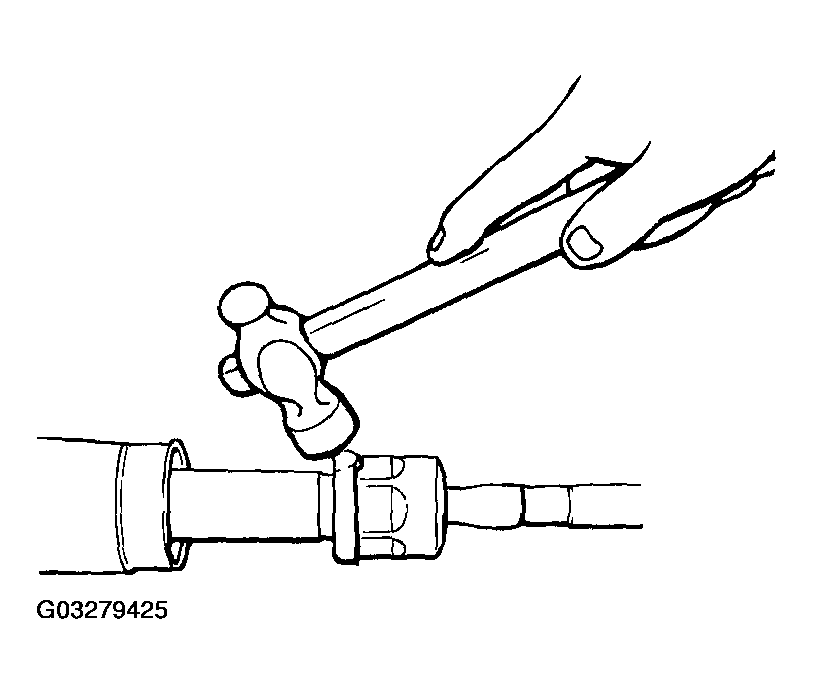

Fig 1: Folding Tab Washer End To Tie Rod Notch
G03279425Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
