Data List Reference Table

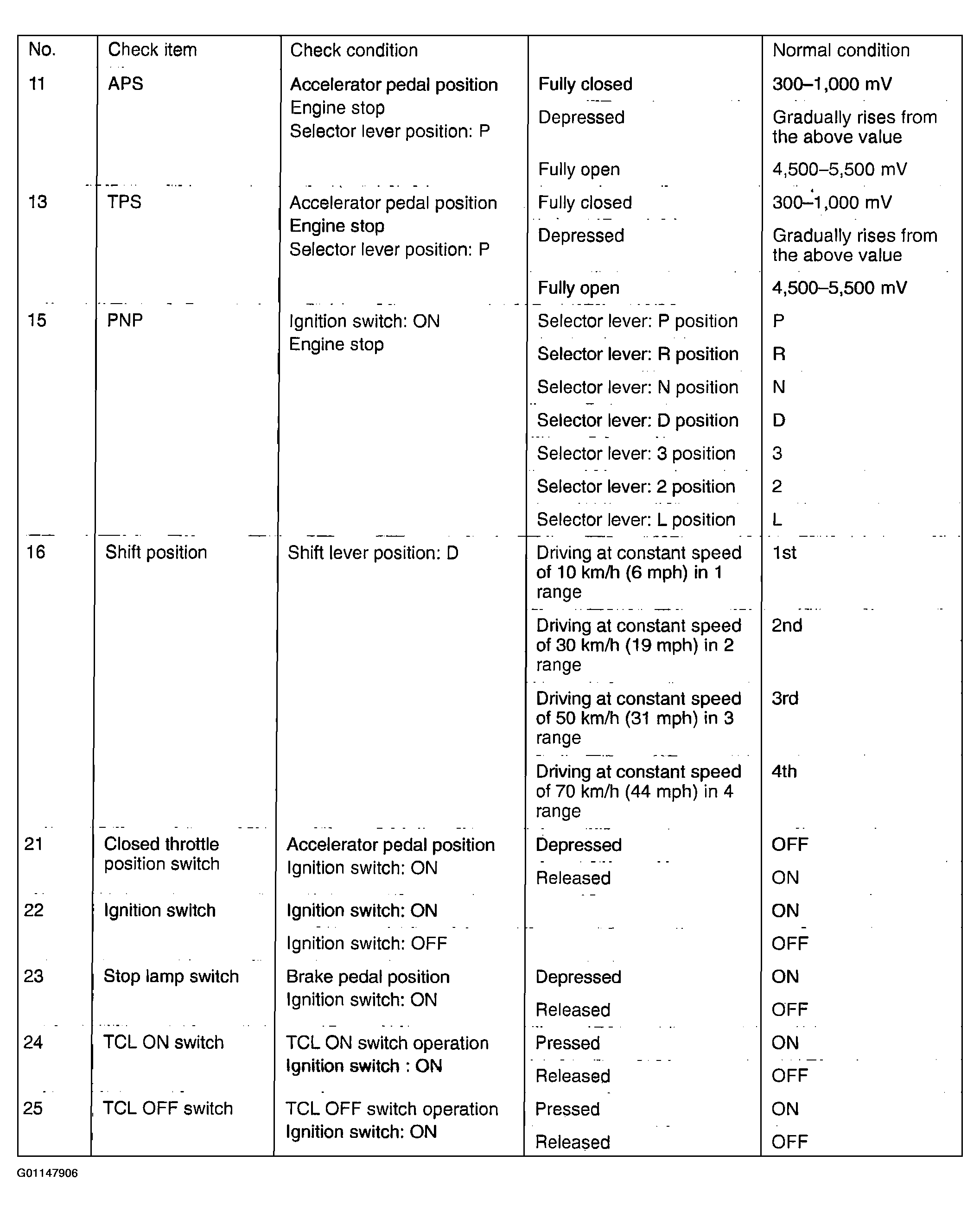

Fig 1: Data List Reference Table (1 Of 2)

G01147906

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

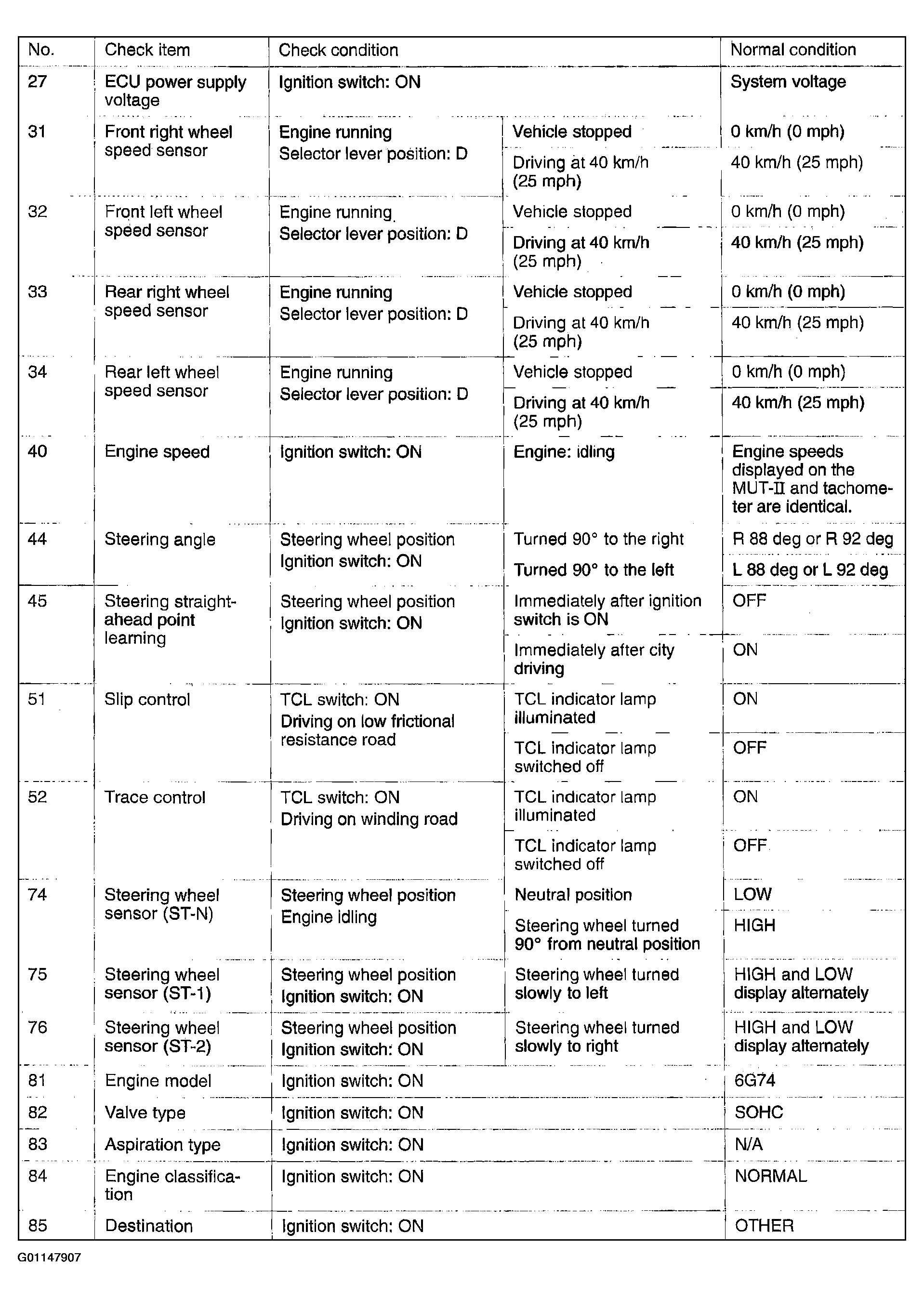

Fig 2: Data List Reference Table (2 Of 2)

G01147907

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
