Removal And Installation

NOTE: The bold directional arrows around letter designations in illustration are covered in SERVICE POINT for each component.

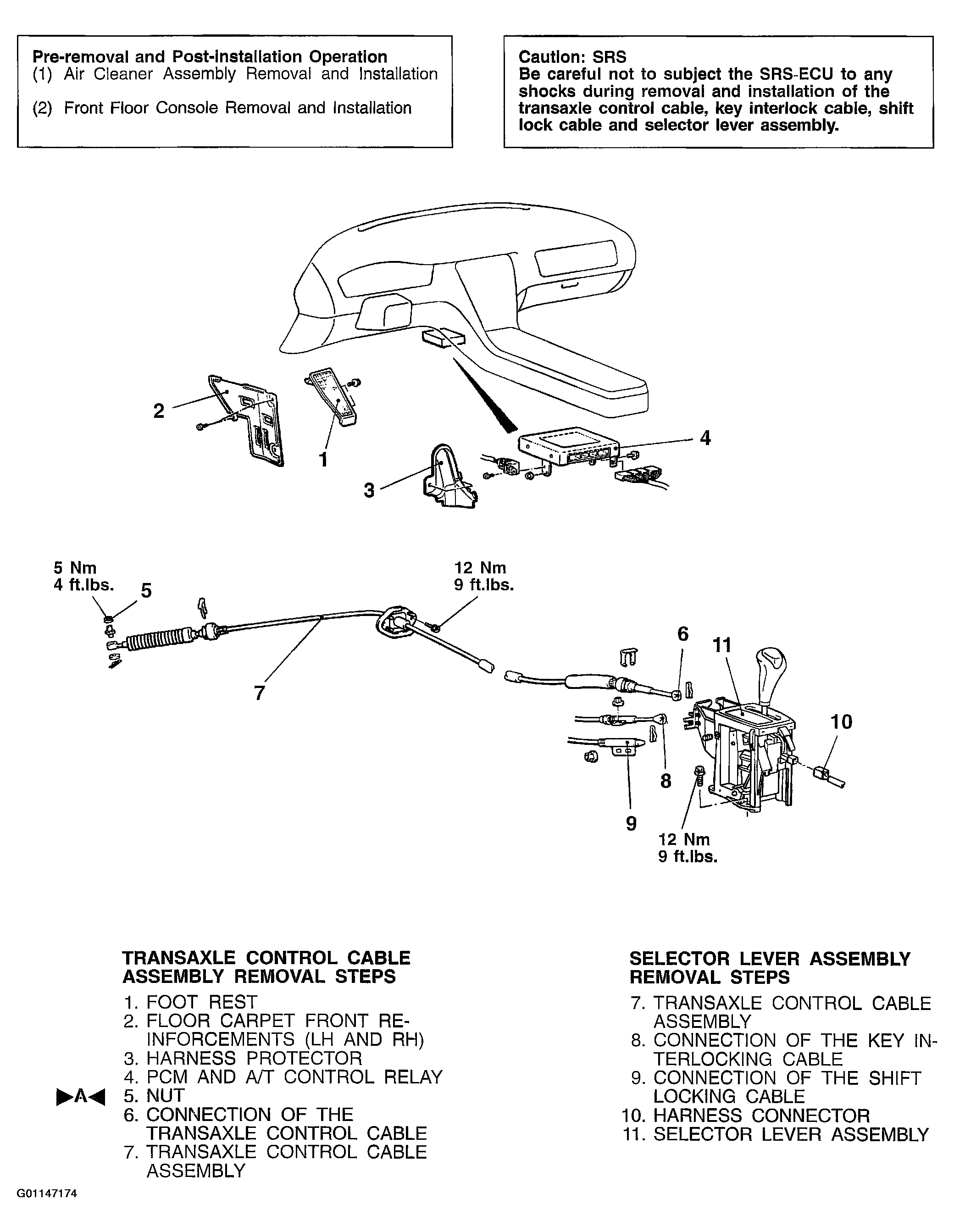

Fig 1: Removing & Installing Transaxle Control Components
G01147174Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
