Key Interlock Mechanism Check

Carry out the following inspection.

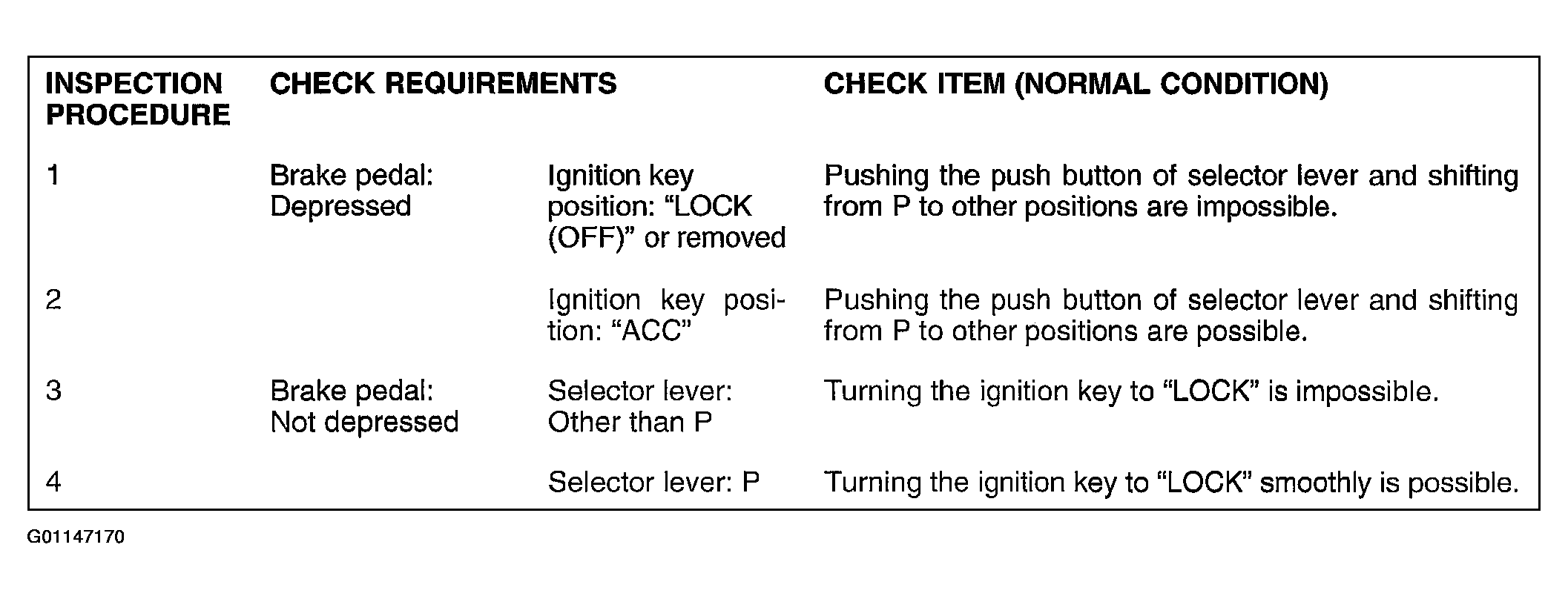

Fig 1: Performing Key Interlock Mechanism Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the above operations are defective, adjust the key interlock cable in following procedure.
1. Remove the front floor console.
2. Shift selector lever to "P".
3. Turn the ignition key to "LOCK".
4. Loosen the locking nut of the key interlock cable.
5. Push the cable joint on the lock cam gently toward the arrow, and tighten the locking nut.

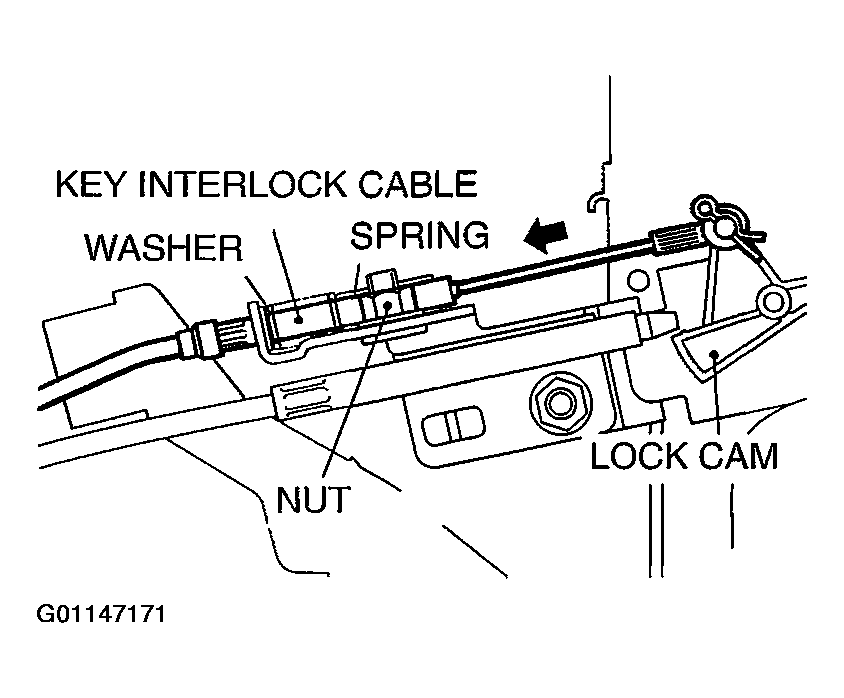

  Fig 2: Adjusting Key Interlock Cable
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Install the front floor console.
