A/T Control Component Check

  1. CRANKSHAFT POSITION SENSOR CHECK

    Refer to MULTIPORT FUEL INJECTION .

  2. THROTTLE POSITION SENSOR CHECK

    Refer to ON-VEHICLE SERVICE .

  3. OIL TEMPERATURE SENSOR CHECK
    1. Remove the oil temperature sensor.
    2. Measure the resistance between terminals No. 1 and No. 2 of the oil temperature sensor connector.
      Fig 1: Checking Oil Temperature Sensor
      G01147145Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 2: Temperature/Resistance Chart
      G01147146Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Replace the sensor if not within the standard value.
  4. PARK/NEUTRAL POSITION SWITCH CHECK

    Refer to PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK <TYPE 1>  or PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK <TYPE 2>  .

  5. STOP LIGHT SWITCH CHECK

    Refer to DISC .

  6. VEHICLE SPEED SENSOR CHECK

    Refer to ON-VEHICLE SERVICE .

  7. DUAL PRESSURE SWITCH CHECK

    Refer to ON-VEHICLE SERVICE .

  8. CLOSED THROTTLE POSITION SWITCH CHECK

    Refer to ON-VEHICLE SERVICE .

  9. A/T CONTROL RELAY CHECK
    1. Remove the A/T control relay.
    2. Use jumper wires to connect the A/T control relay terminal to the battery (-) terminal and terminal to the battery (+) terminal.
      Fig 3: Testing A/T Control Relay
      G01147147Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Check the continuity between the terminal and the terminal of the A/T control relay when the jumper wires are connected to and disconnected from the battery.
      Fig 4: Checking A/T Control Relay Continuity
      G01147148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    4. If there is a problem, replace the A/T control relay.
  10. SOLENOID VALVE CHECK
    1. Remove the valve body cover.
    2. Disconnect the connectors of each solenoid valve.

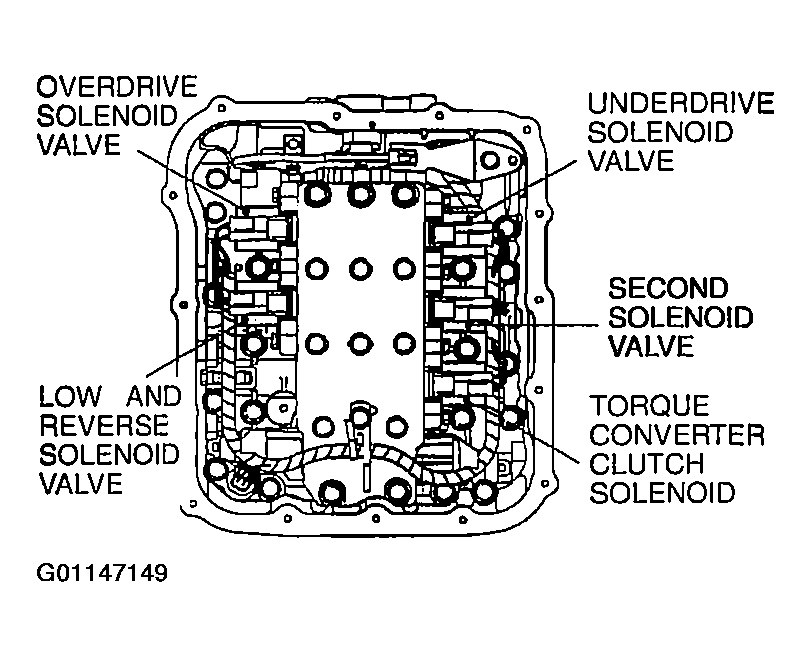

      Fig 5: Identifying Solenoid Valves
      G01147149Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Measure the resistance between terminals 1 and 2 of each solenoid valve.
      Fig 6: Testing Solenoid Valve
      G01147150Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 7: Checking Solenoid Valve Resistance
      G01147151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    4. If the resistance is not within the standard value, replace the solenoid valve.
