Disassembly And Reassembly

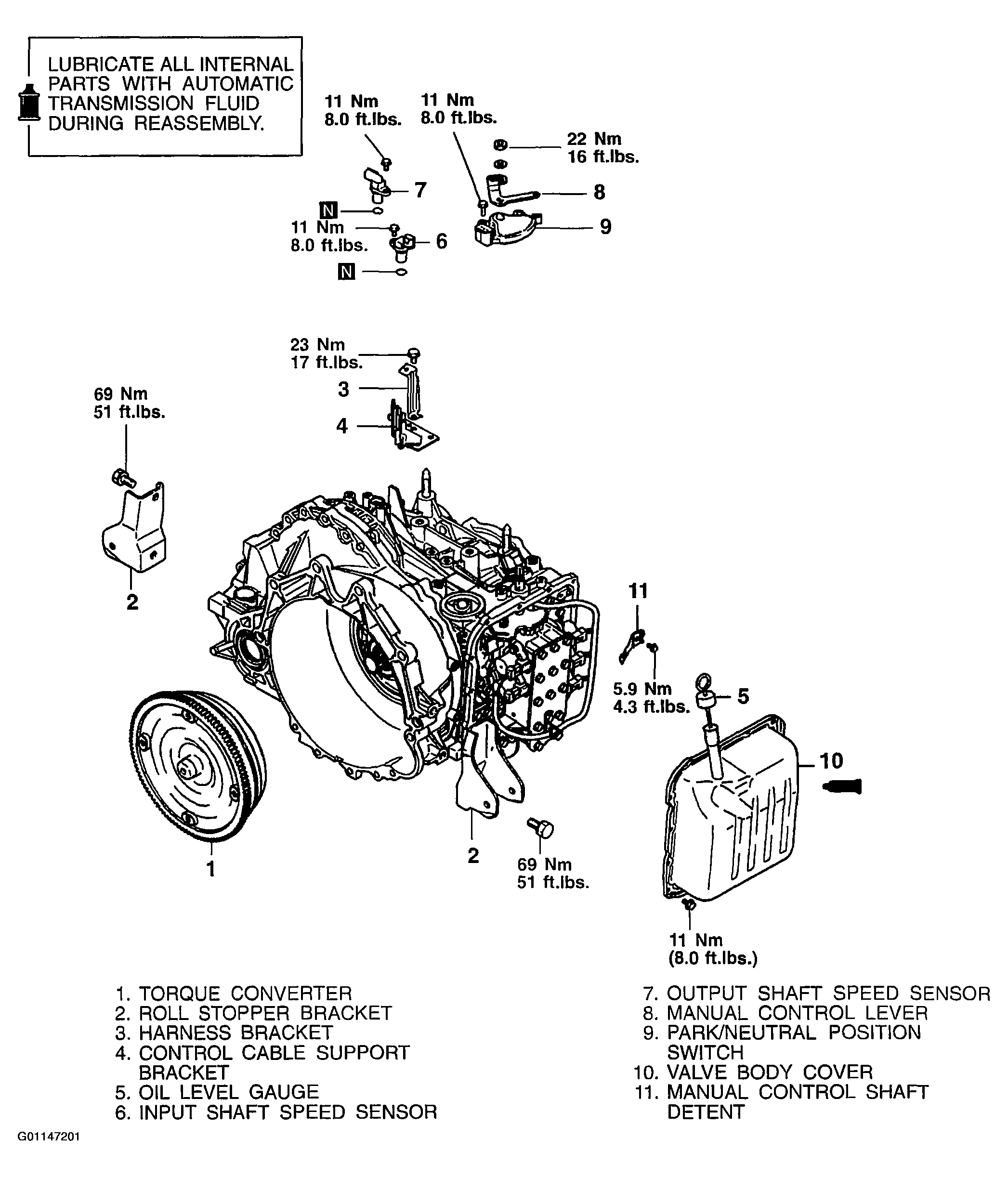

Fig 1: Transaxle Disassembly And Reassembly (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

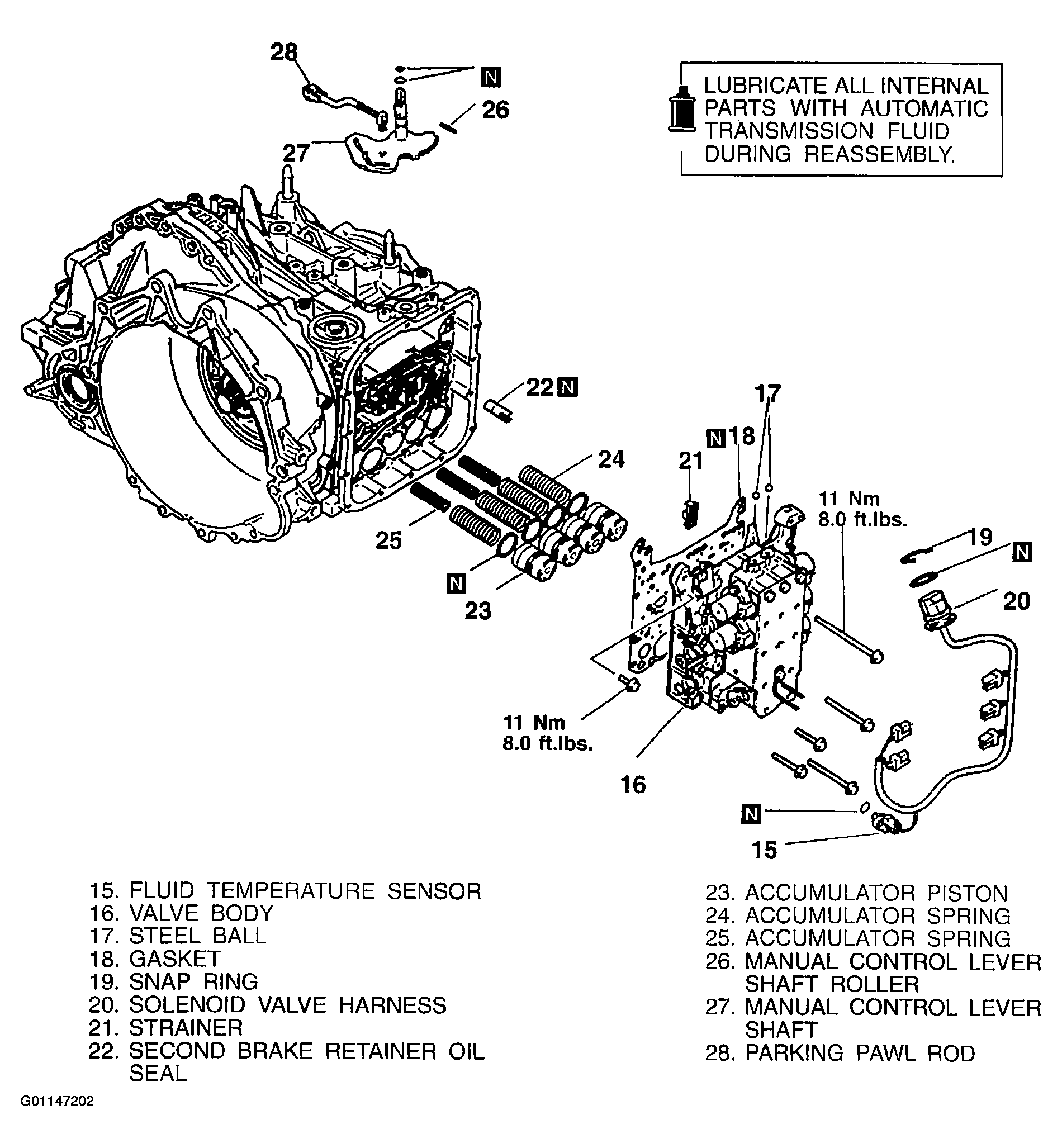

Fig 2: Transaxle Disassembly And Reassembly (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

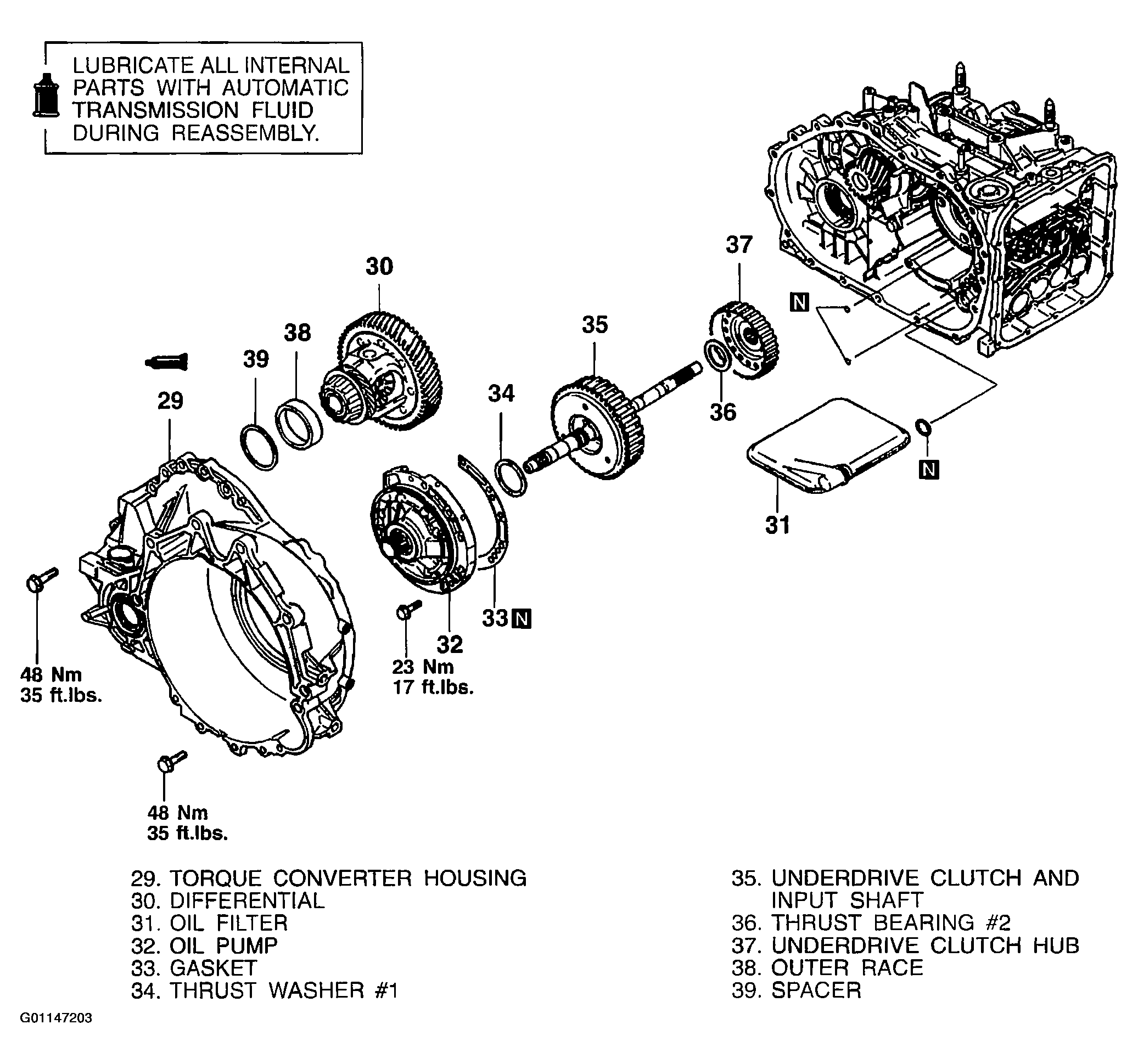

Fig 3: Transaxle Disassembly And Reassembly (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

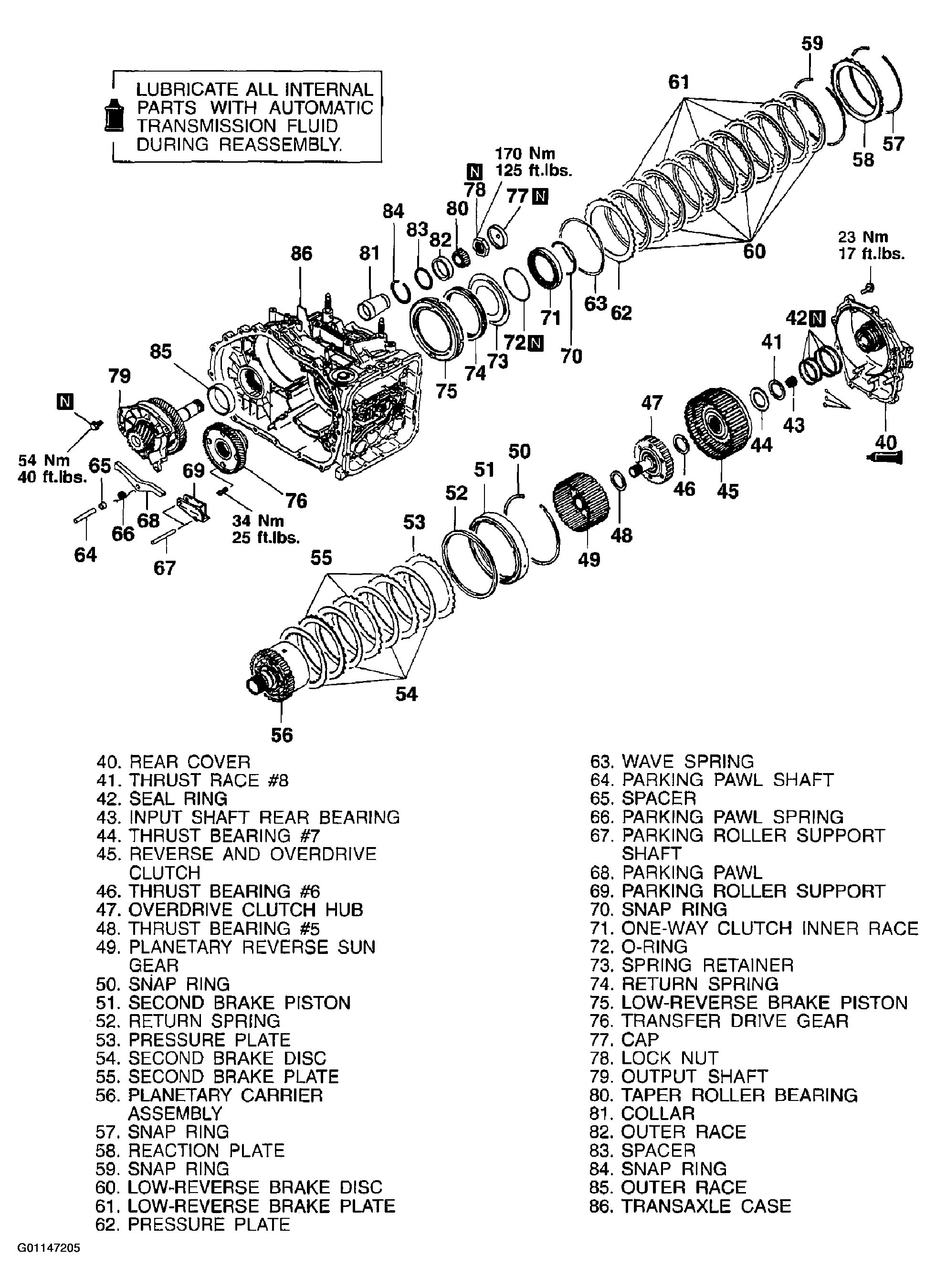

Fig 4: Transaxle Disassembly And Reassembly (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

No. Of Brake Discs and Plates

Fig 5: No. Of Brake Discs And Plates

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
