Disassembly And Reassembly
NOTE:
The bold directional arrows around letter designations in illustration are covered in REASSEMBLY SERVICE POINT for each component.

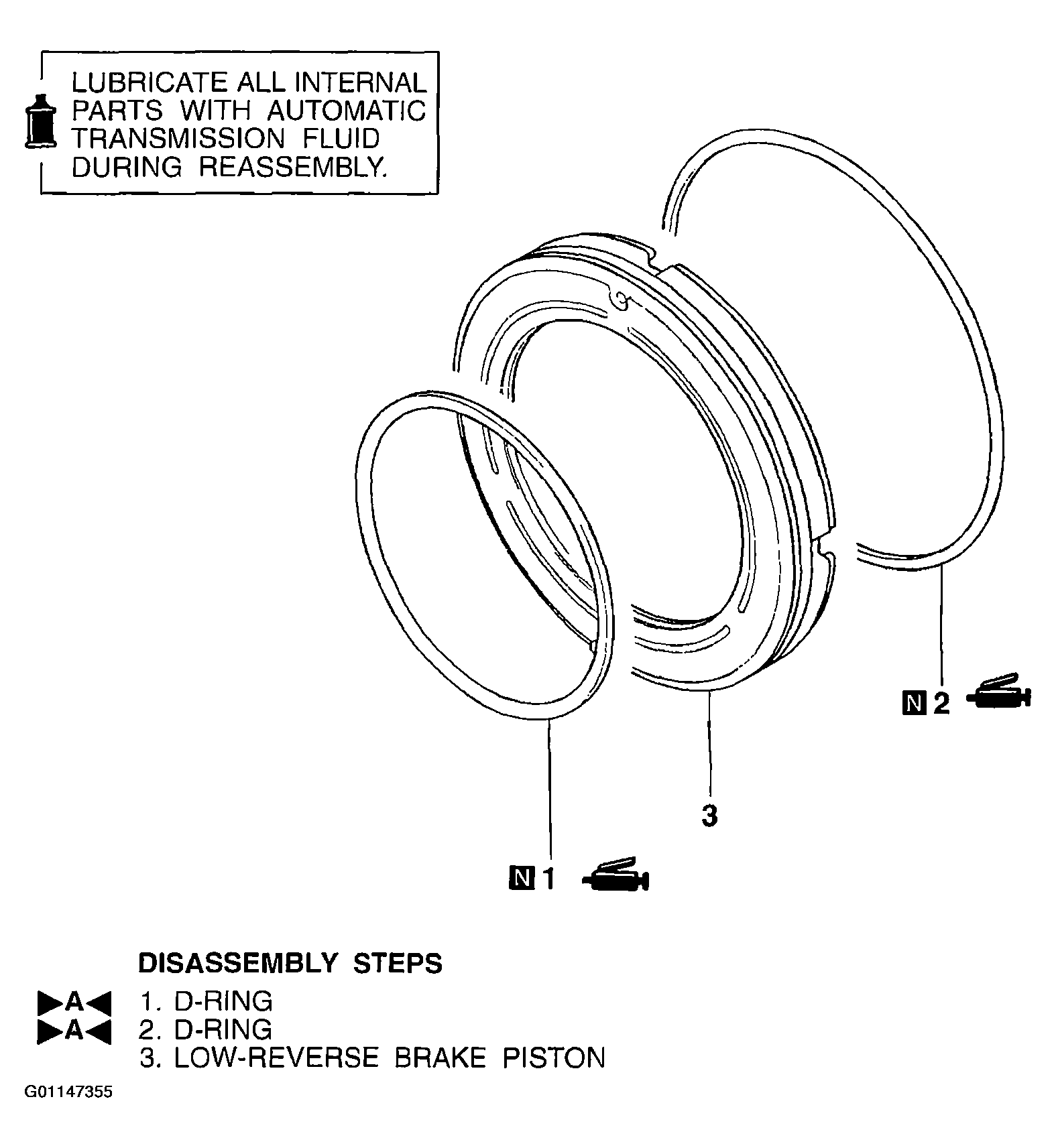

Fig 1: Low-Reverse Brake Disassembly And Reassembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
