Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

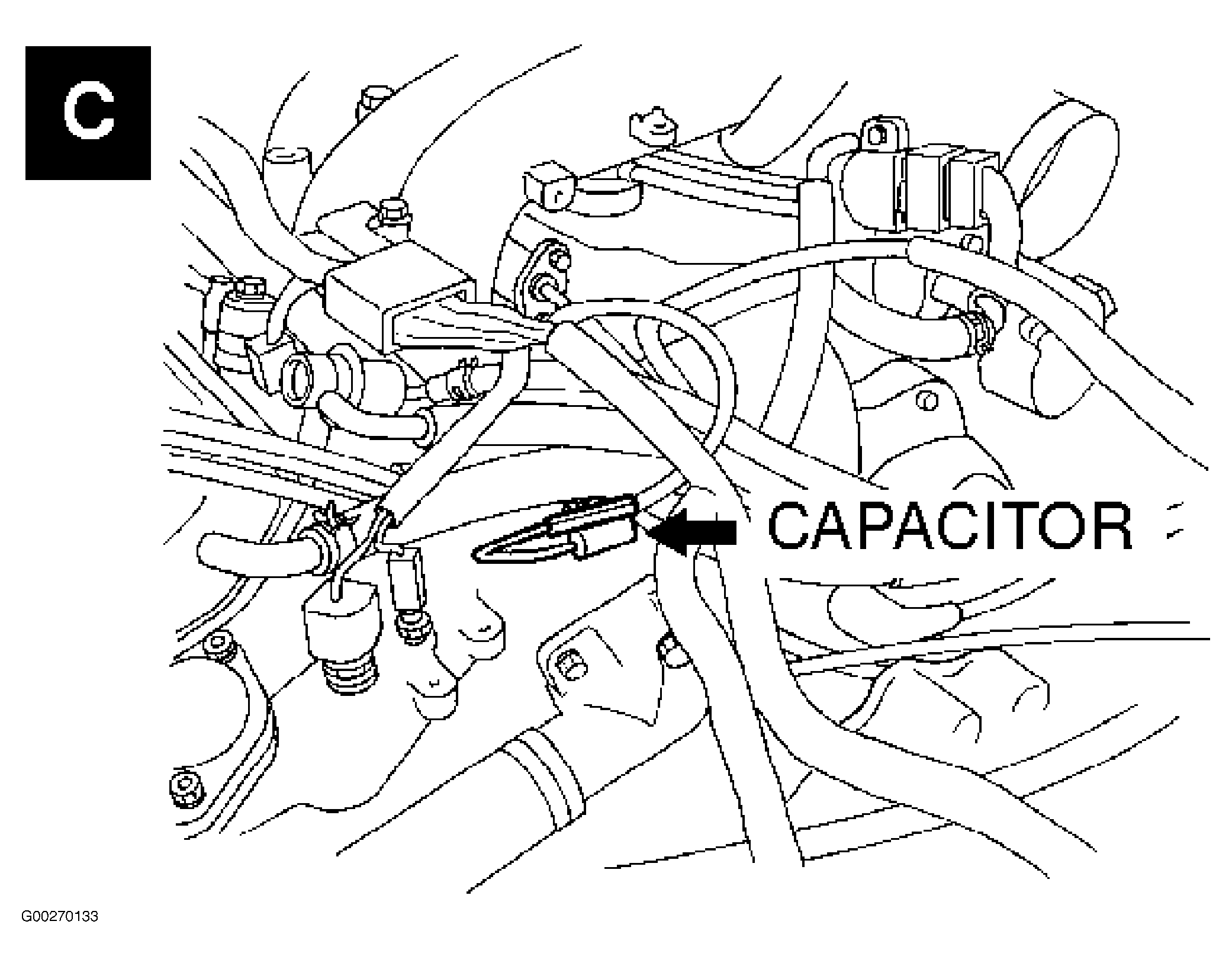

| Capacitor | On left rear of engine compartment. See Figure . |

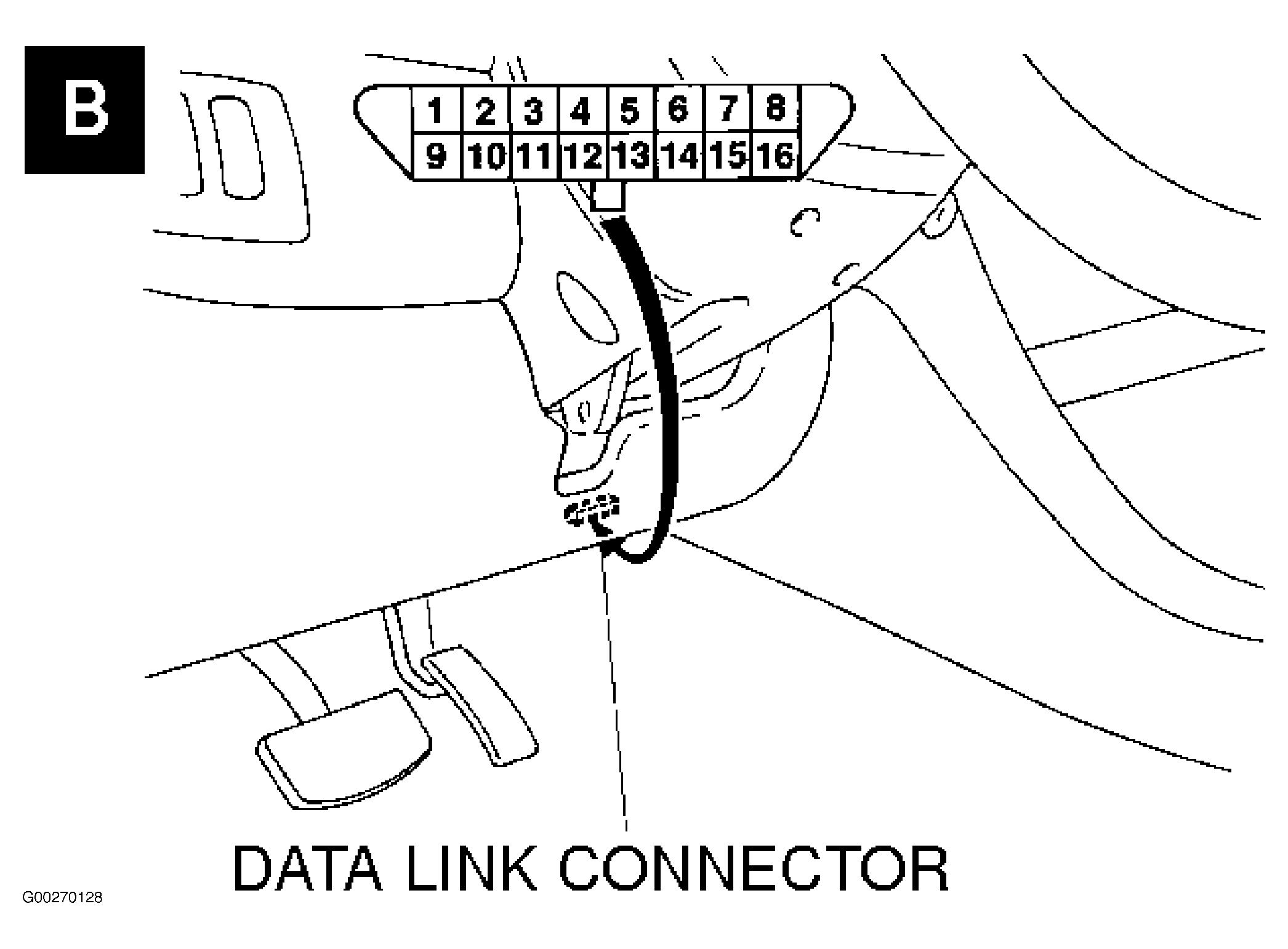

| Data Link Connector | Under left side of dash, near steering column. See Figure . |

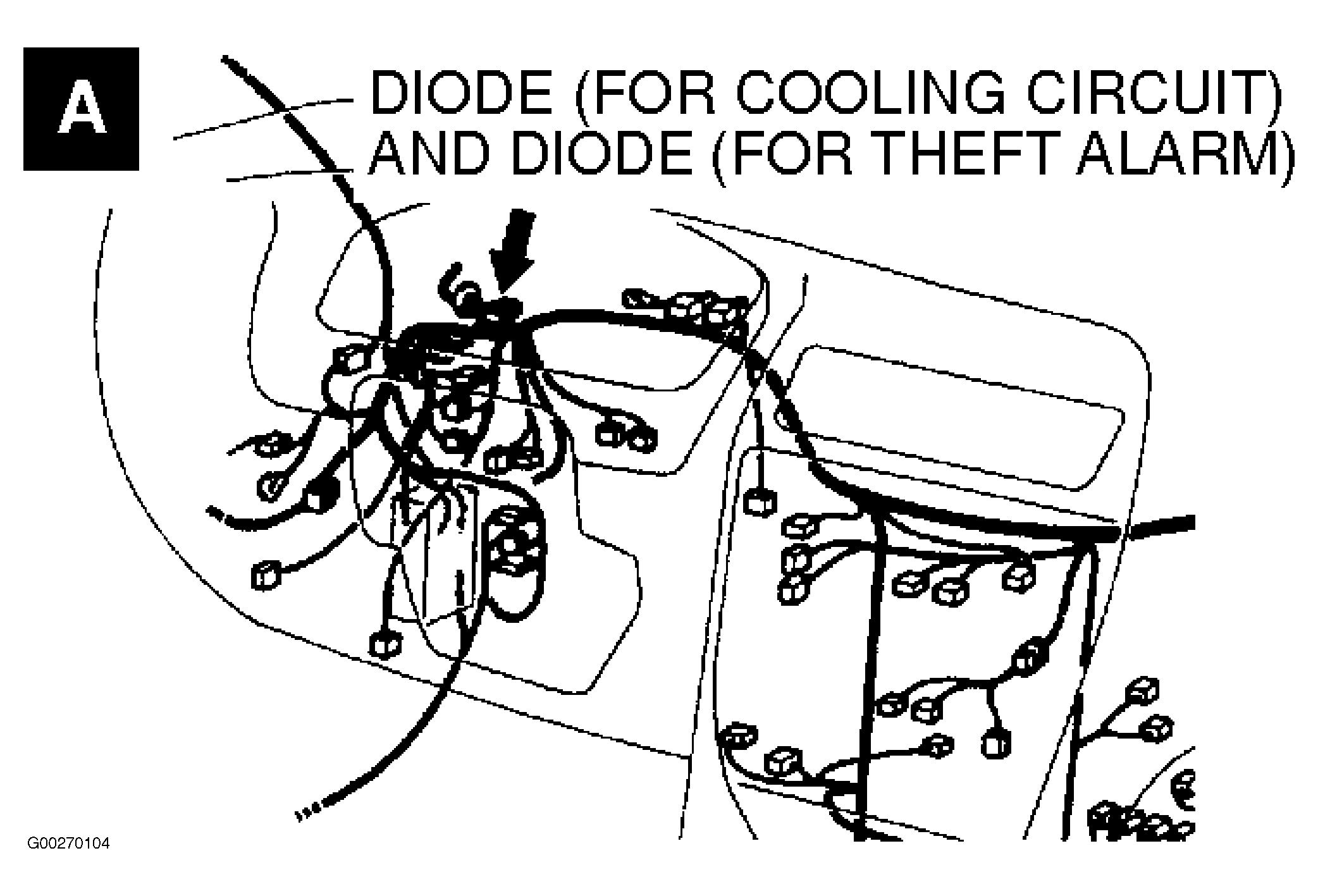

| Diode (Cooling Circuit) | Behind left side of dash. See Figure . |
| Diode (Courtesy Light) | Behind left side of dash. See Figure . |

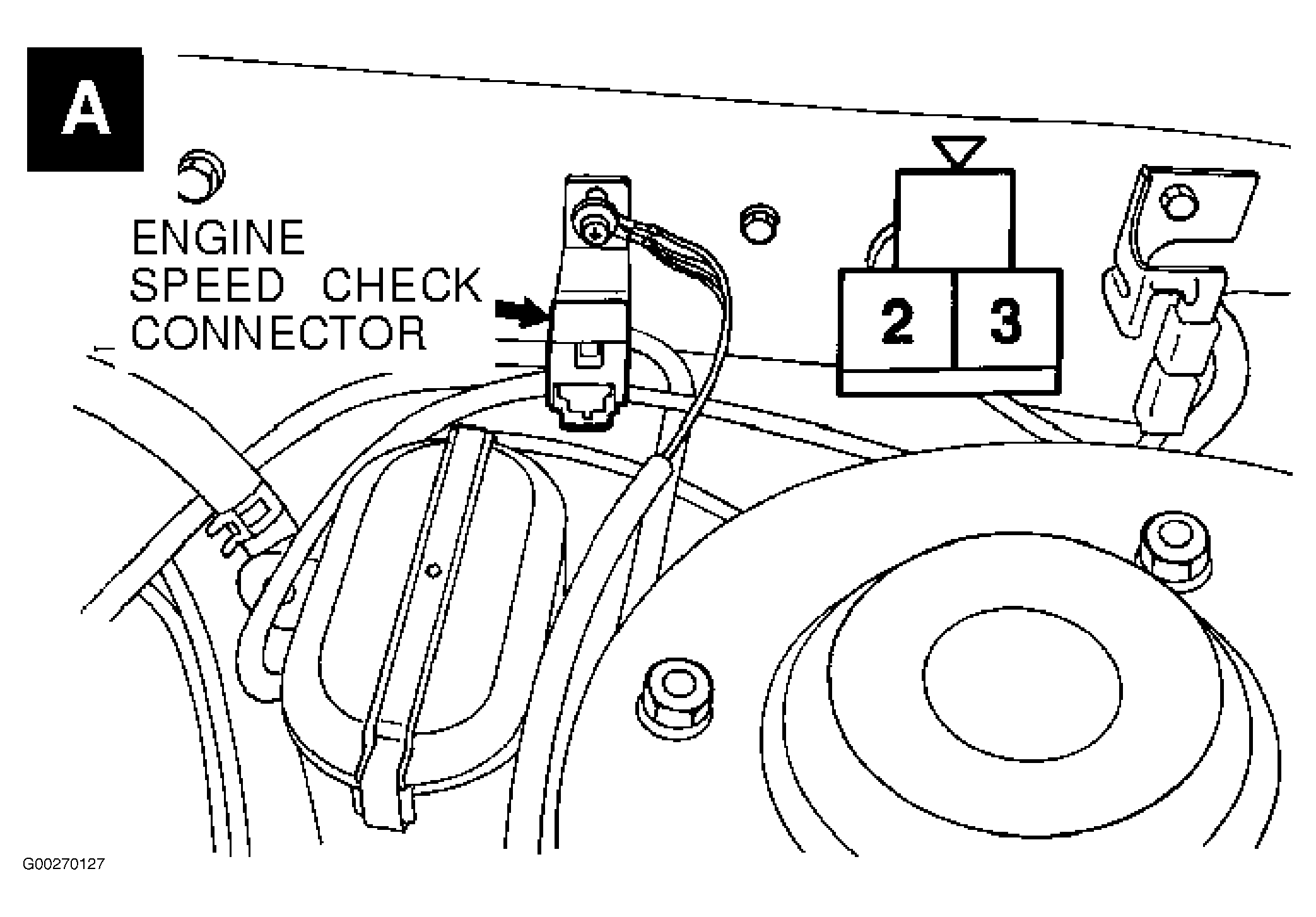

| Engine Speed Check Connector | In engine compartment, on left side of firewall. See Figure . |

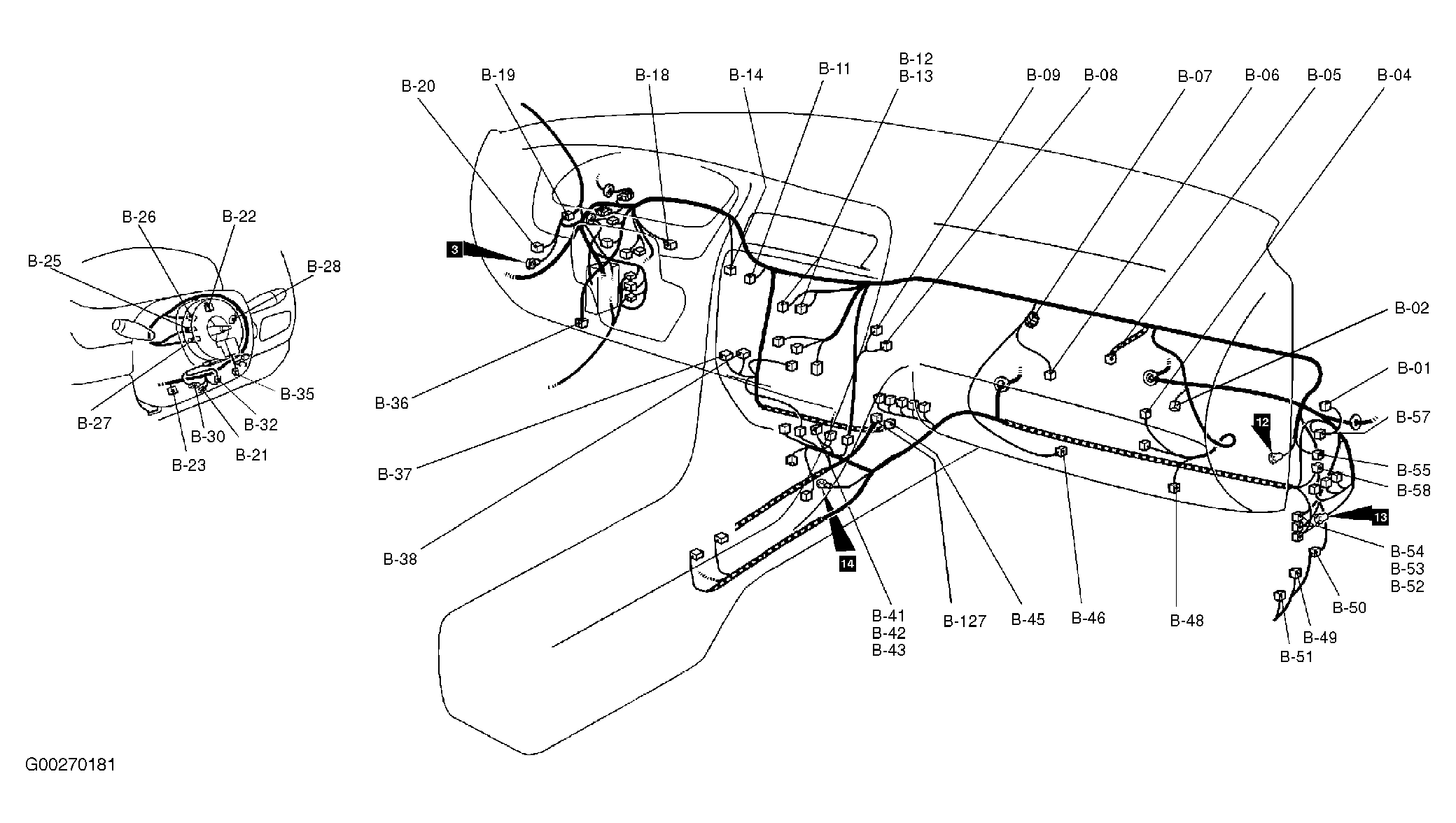

| Flash Memory Connector (B-38) | Under left side of dash, near steering column. See Figure . |

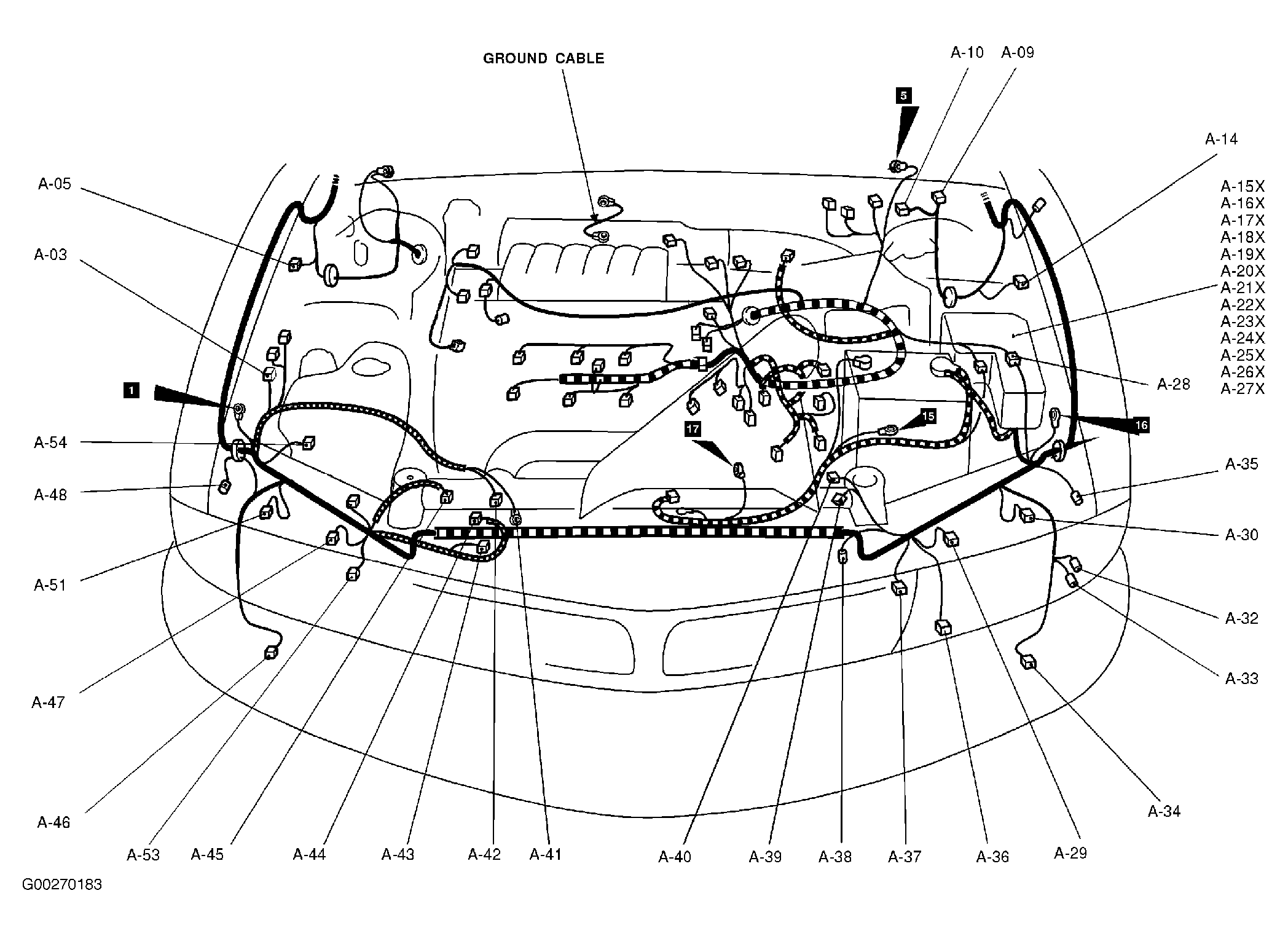

| Generator (A-41 & A-42) | Right front of engine compartment. See Figure . |
| Horn (Left) (A-32 & A-33) | Behind left end of front bumper fascia. See Figure . |

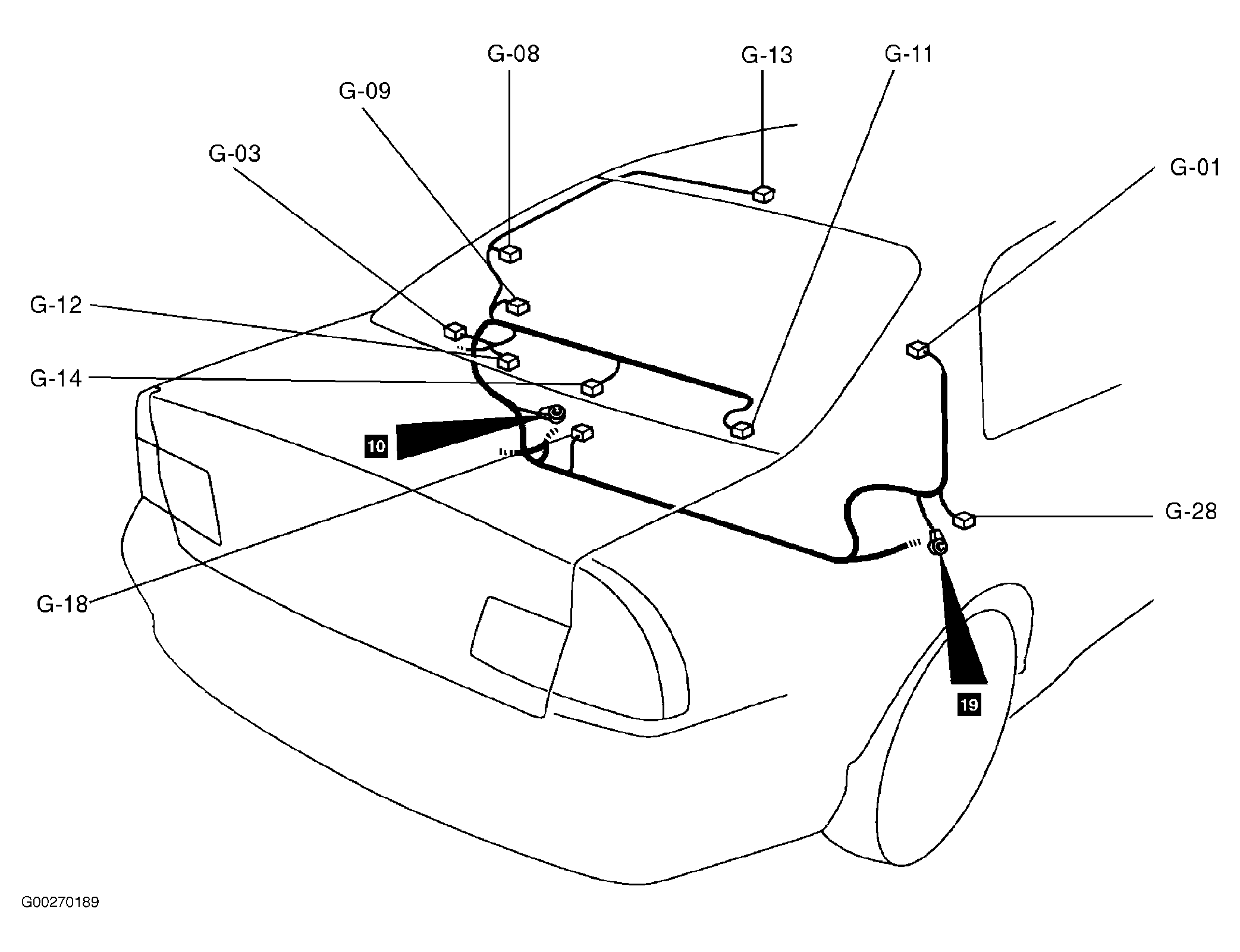

| Infinity Amplifier (G-18) | Under rear shelf. See Figure . |

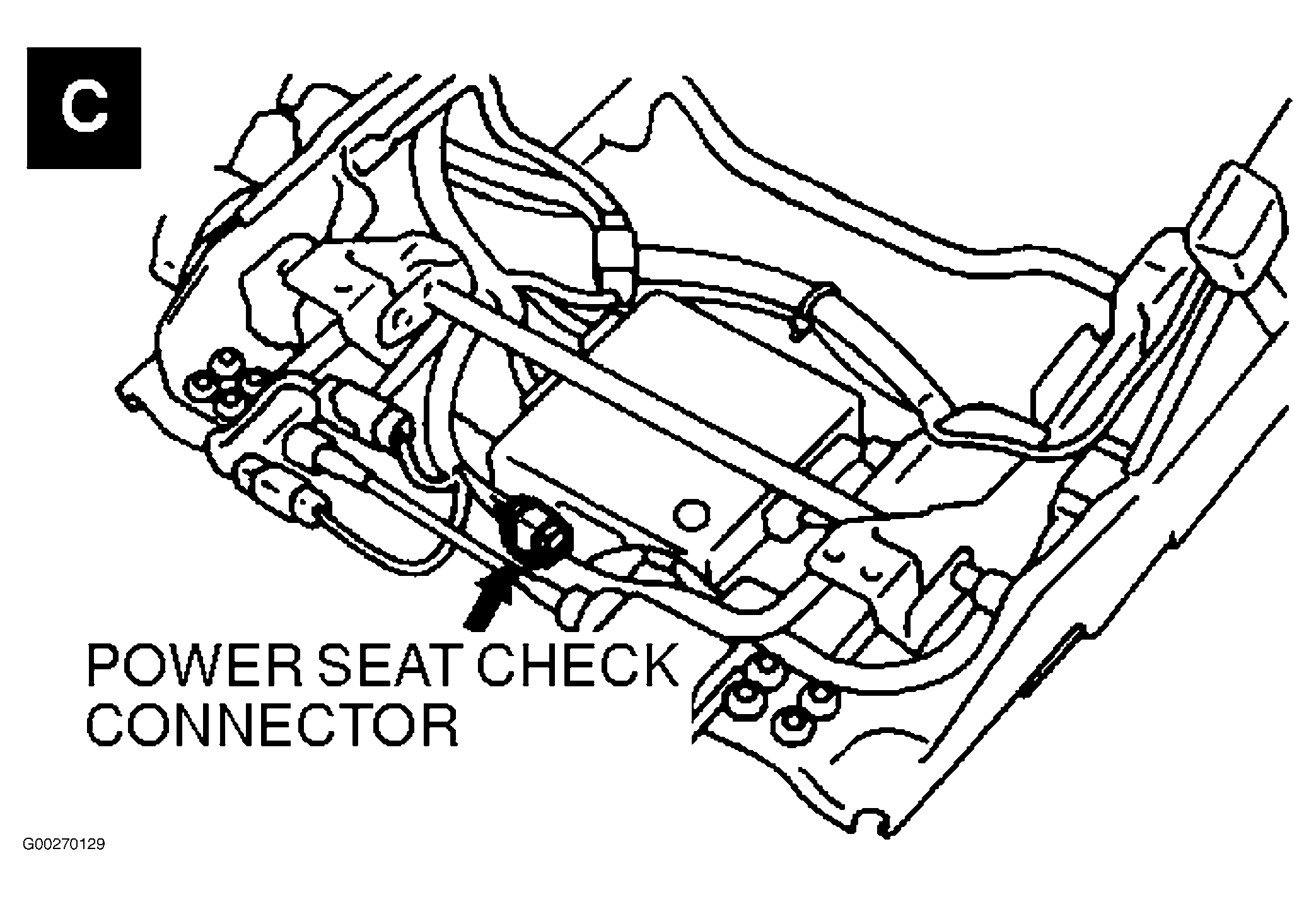

| Power Seat Check Connector | Under driver's seat. See Figure . |

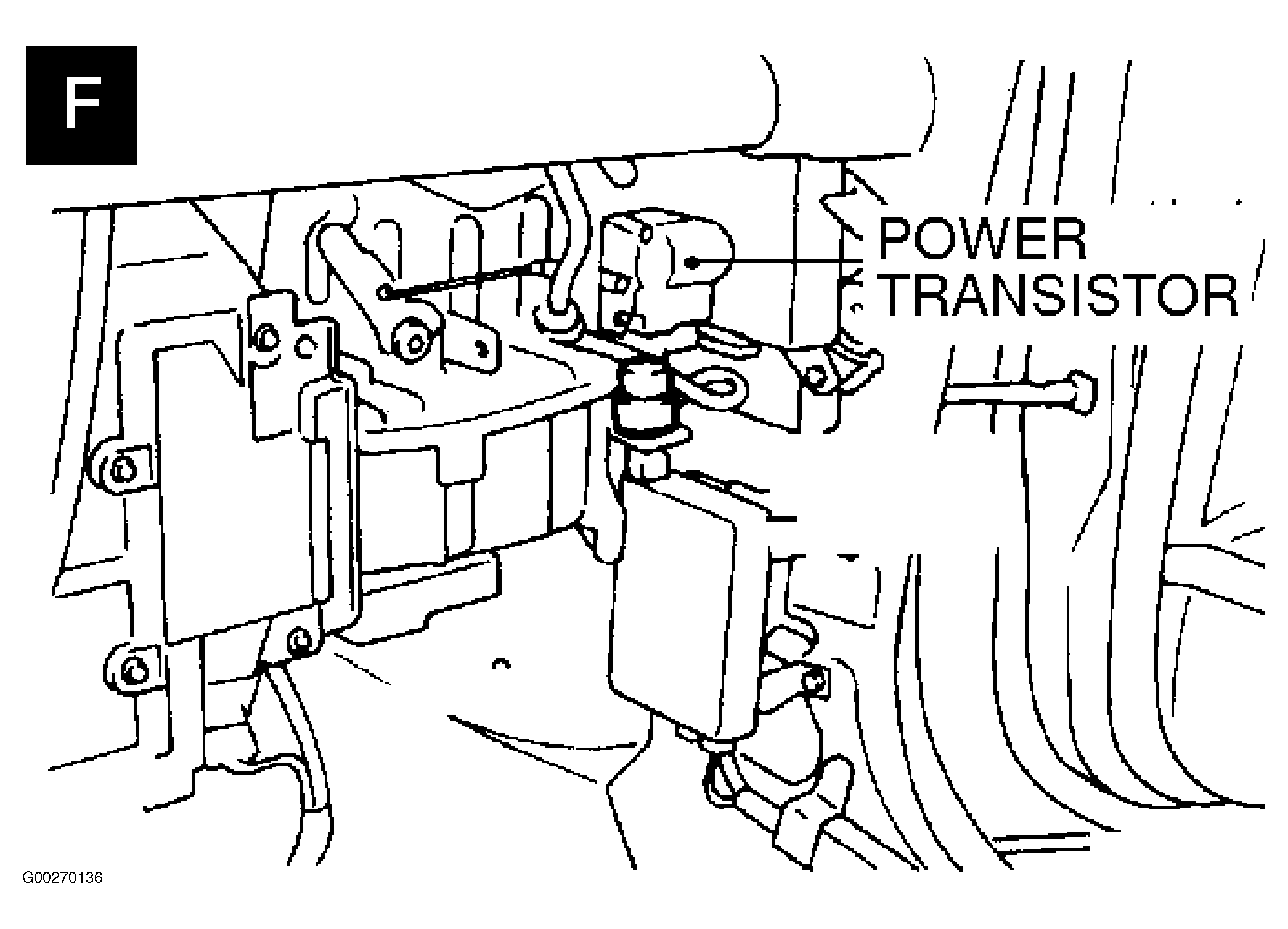

| Power Transistor | Under right side of dash. See Figure . |
| Receiver (G-14) | Under rear shelf. See Figure . |

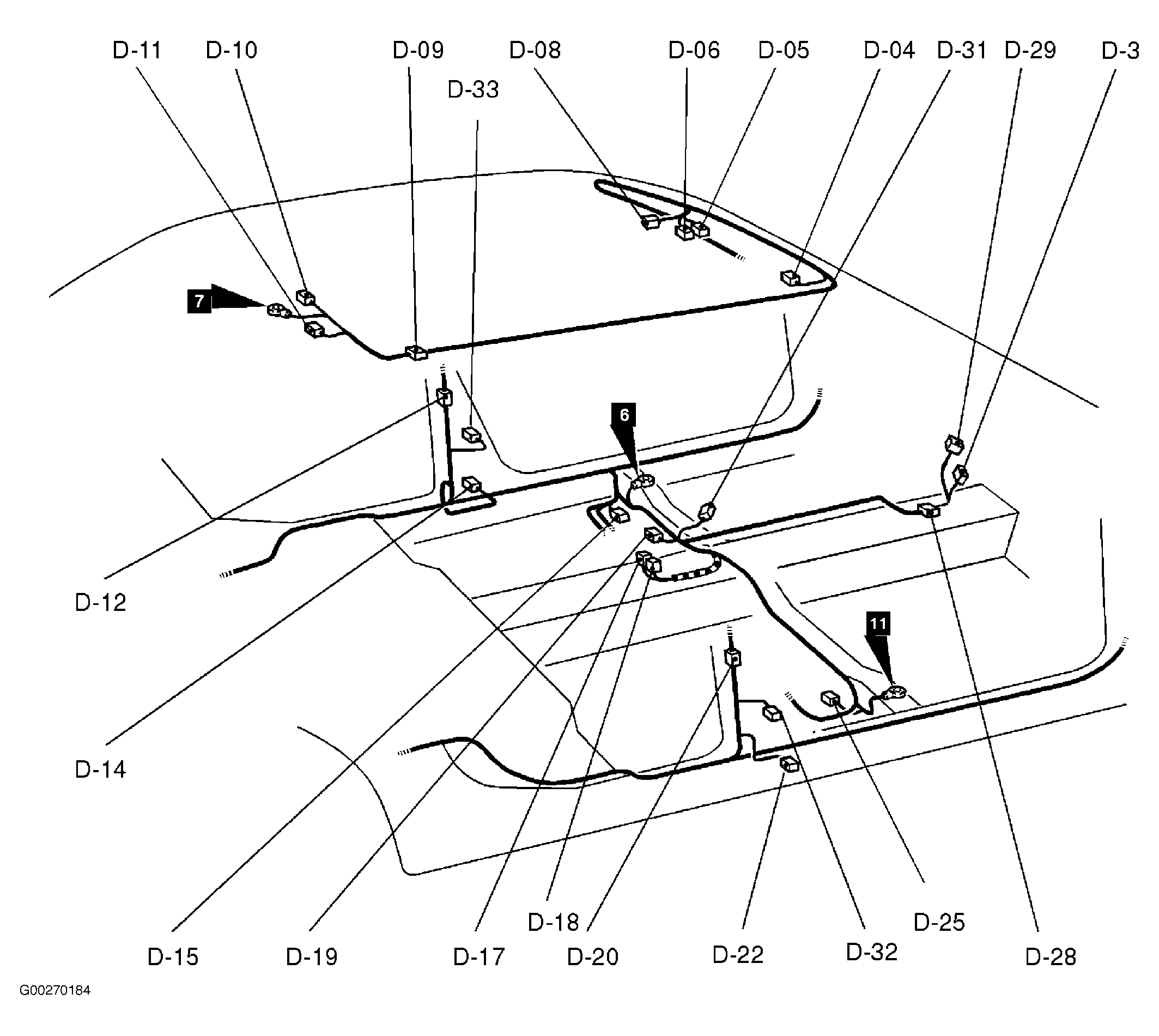

| Seat Belt Pretensioner (Left) (D-33) | Base of left "B" pillar. See Figure . |
| Seat Belt Pretensioner (Right) (D-32) | Base of right "B" pillar. See Figure . |
