Auto-Cruise Control Switch Check

Measure the resistance between the terminals when each of the SET, RESUME and CANCEL switches is pressed.

If the values measured at this time correspond to those in the table below, then there is no problem.

Fig 1: Terminal Resistance Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

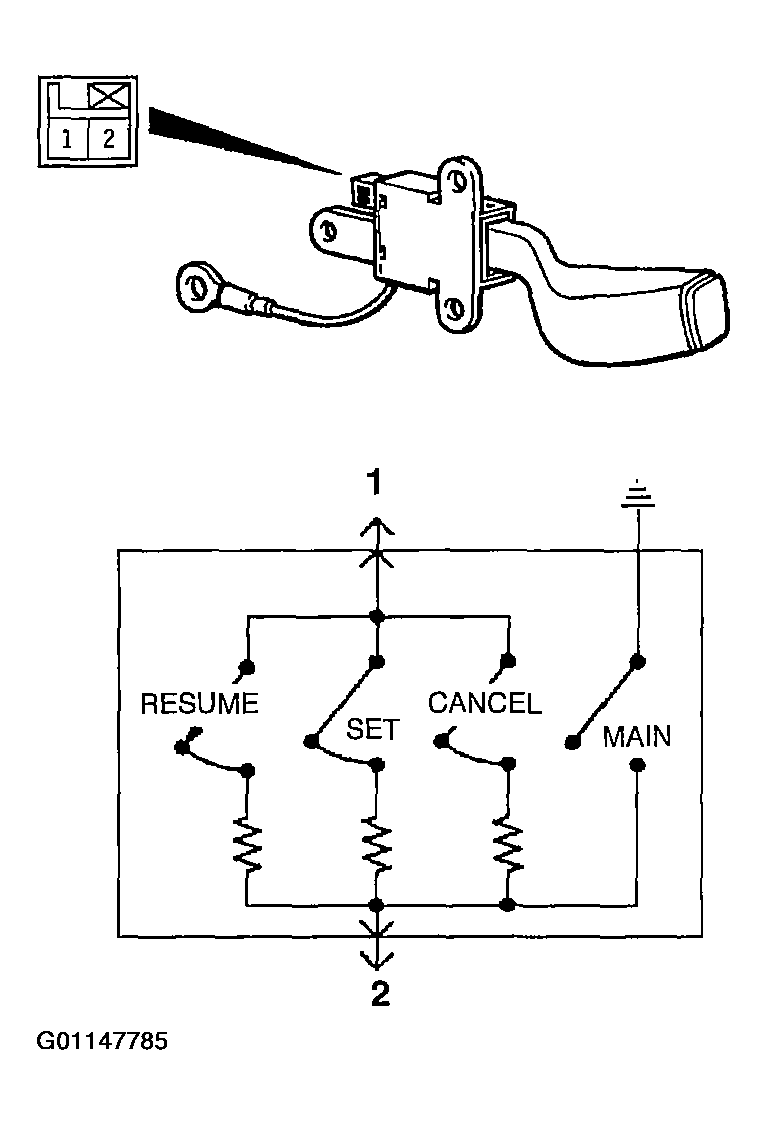

Fig 2: Checking Auto-Cruise Control Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
