Manual Control Switch Assembly Circuit Check

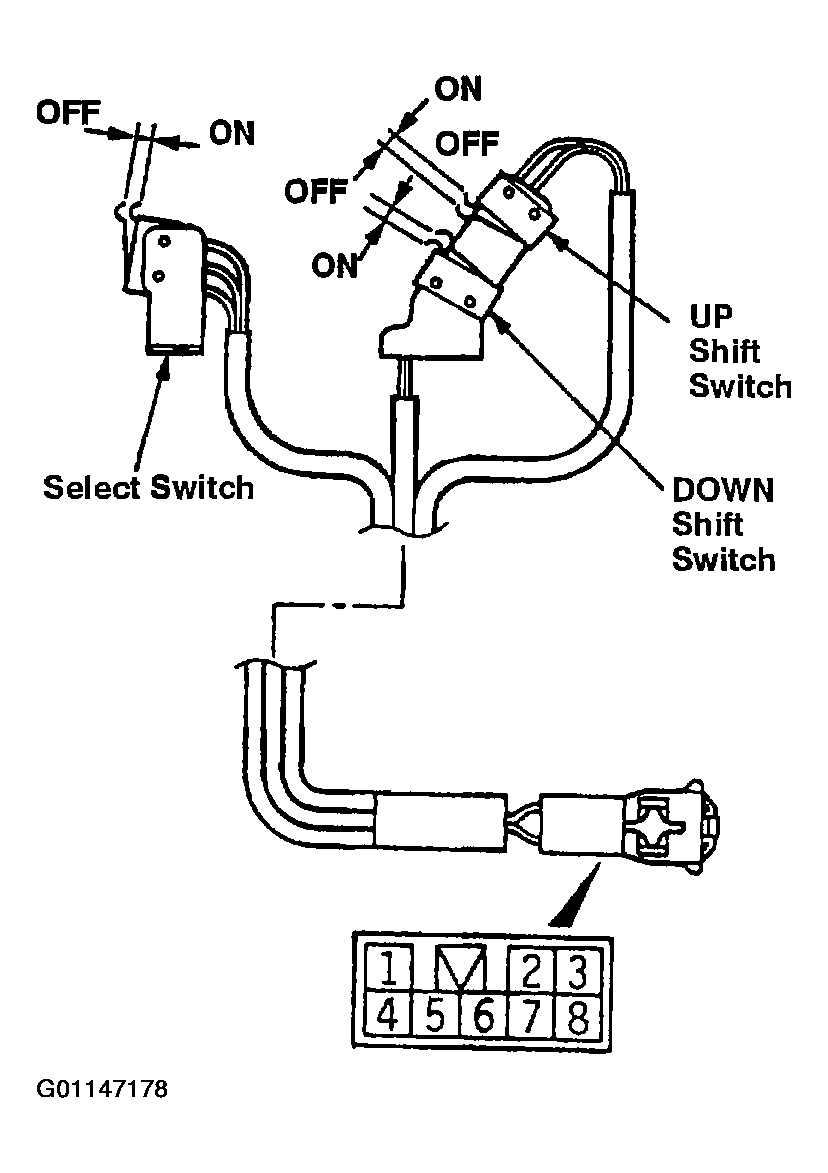

Fig 1: Testing Manual Control Switch
G01147178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

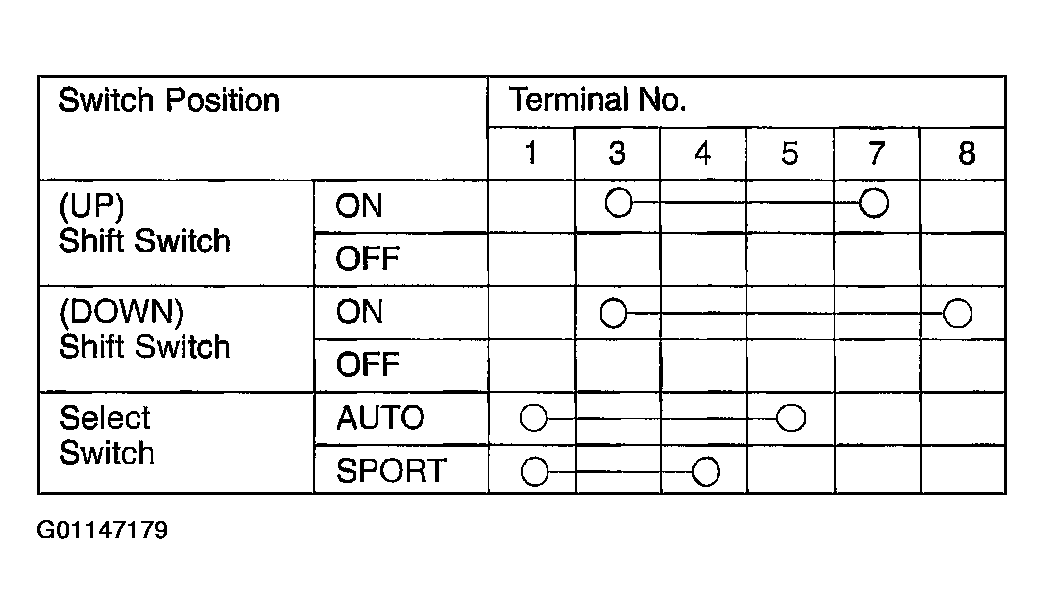

Fig 2: Checking Manual Control Switch Continuity
G01147179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
