General Service Specifications
COOLING SYSTEM SPECIFICATIONS
| Application | Specification | |
|---|---|---|
| Coolant Replacement Interval | 48 Months or 30,000 Miles | |
| Coolant Capacity | 10 Qts. (9.5L) | |
| Pressure Cap | 11-15 psi (.77-1.05 kg/cm2 ) | |

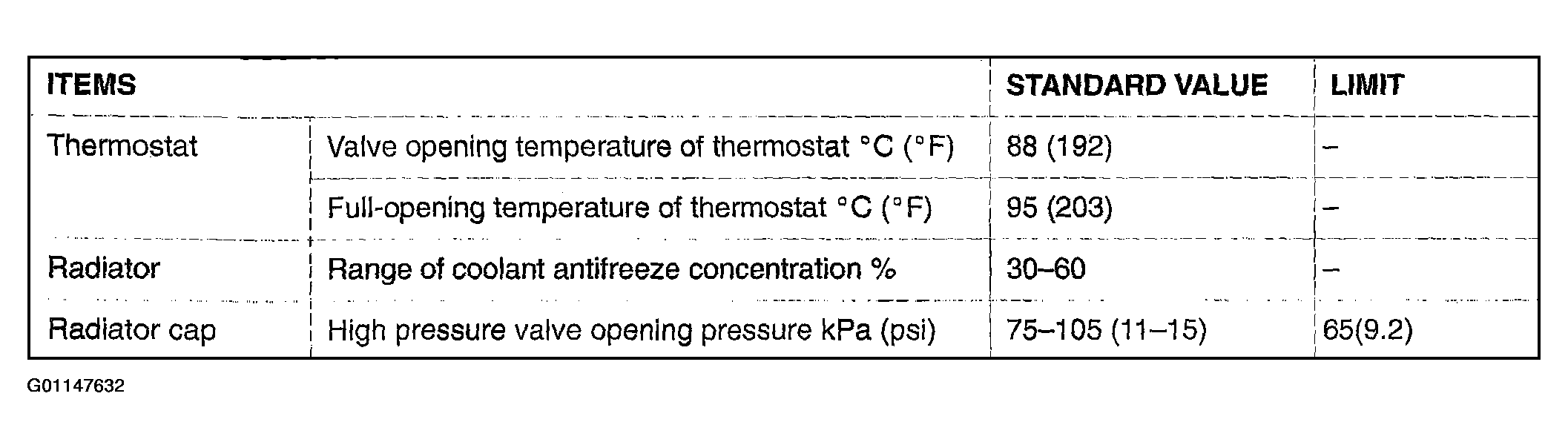

| Thermostat | ||
| Starts To Open | 192°F (88°C) | |
| Fully Opens | 203°F (95°C) | |
Cooling System Fastener Tightening Specifications
| ITEMS | SPECIFICATION |
|---|---|
| Radiator | |
| Radiator support bolt | 12 N.m (9 ft-lb) |
| Reserve tank bolt | 12 N.m (9 ft-lb) |
| Thermostat | |
| Water outlet fitting | 17-20 N.m (12-14 ft-lb) |
| Water hose and water pipe | |
| Heater inlet pipe A | 17-20 N.m (12-14 ft-to) |
| Heater inlet pipe B | 17-20 N.m (12-14 ft-lb) |
| Thermostat housing assembly | 17-20 N.m (12-14 ft-lb) |
| Water inlet pipe assembly bolt | 12-15 N.m (9-11 ft-lb) |
| Water pump | |
| Generator brace bolt | 24 N.m (18 ft-lb) |
| Water pump bolt | 24 N.m (18 ft-lb) |
| water pump bolt | 41 N.m (30 ft-lb) |
THERMOSTAT R & I
Refer to THERMOSTAT .
WATER PUMP R & I
Refer to WATER PUMP .
