Indicator Lamp Check

Press the TCL switch and check if each TCL indicator lamp illuminates or switches off.

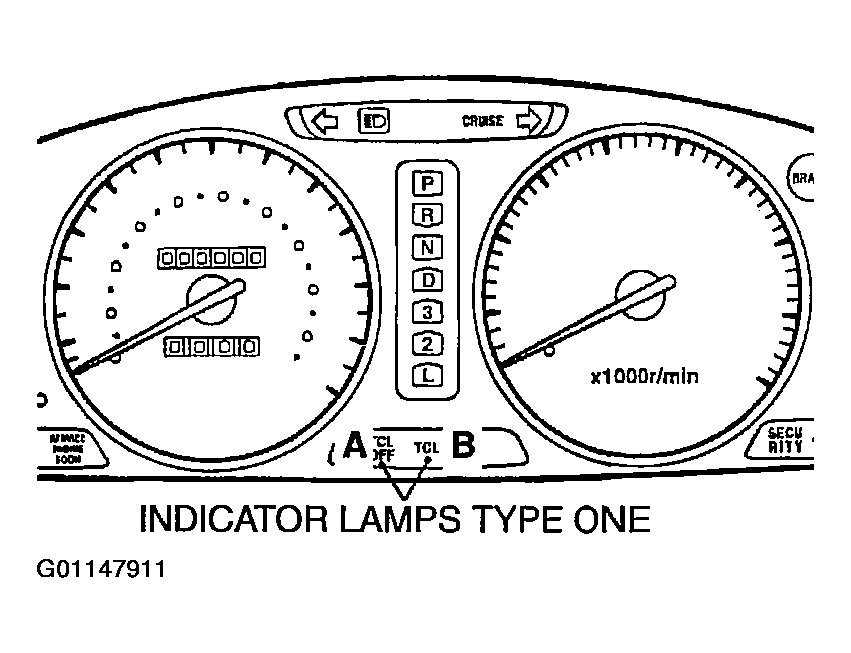

Fig 1: Identifying Indicator Lamps (Type 1)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Indicator Lamps (Type 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

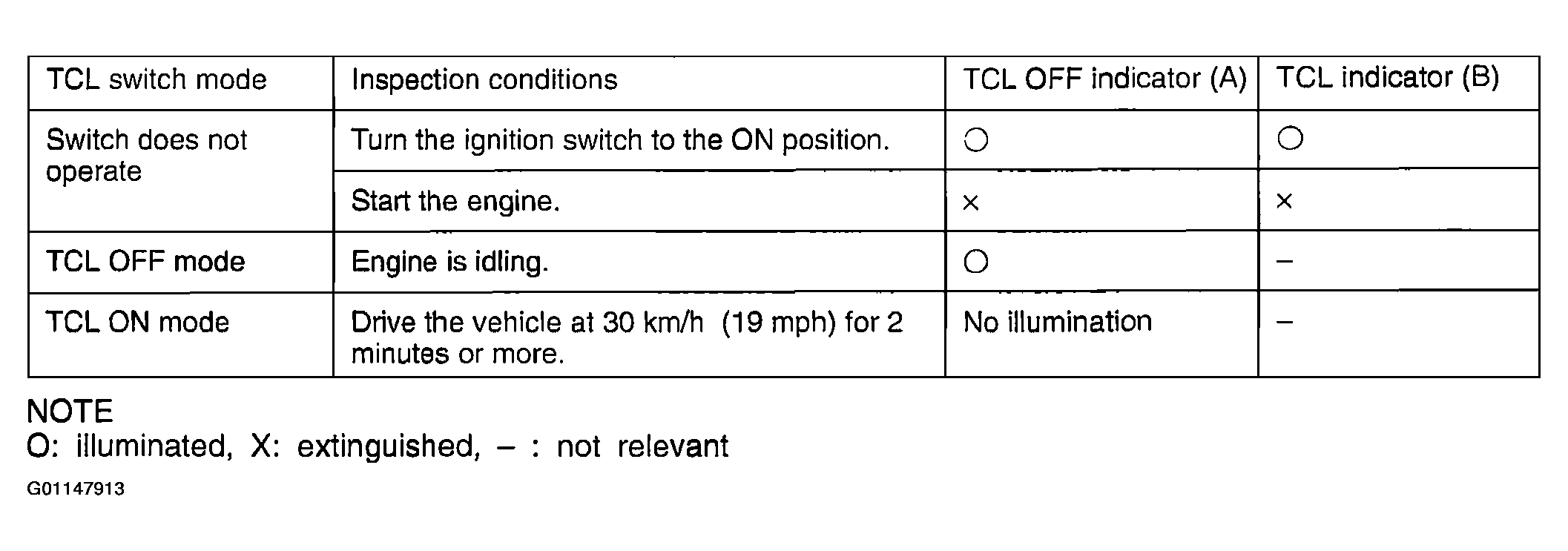

Fig 3: Inspection Condition Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: O: illuminated, X: extinguished, - : not relevant

CAUTION: If a different result is obtained when checking, refer to the "TROUBLESHOOTING " section for remedy.
