Radiator Fan Motor Check

  1. Remove the radiator fan motor connector.
  2. Check to see that the fan motor of the radiator turns when applying battery power between the connector terminals of the radiator fan motor. Also check to see that there is no abnormal sound coming from the radiator fan motor at this time.

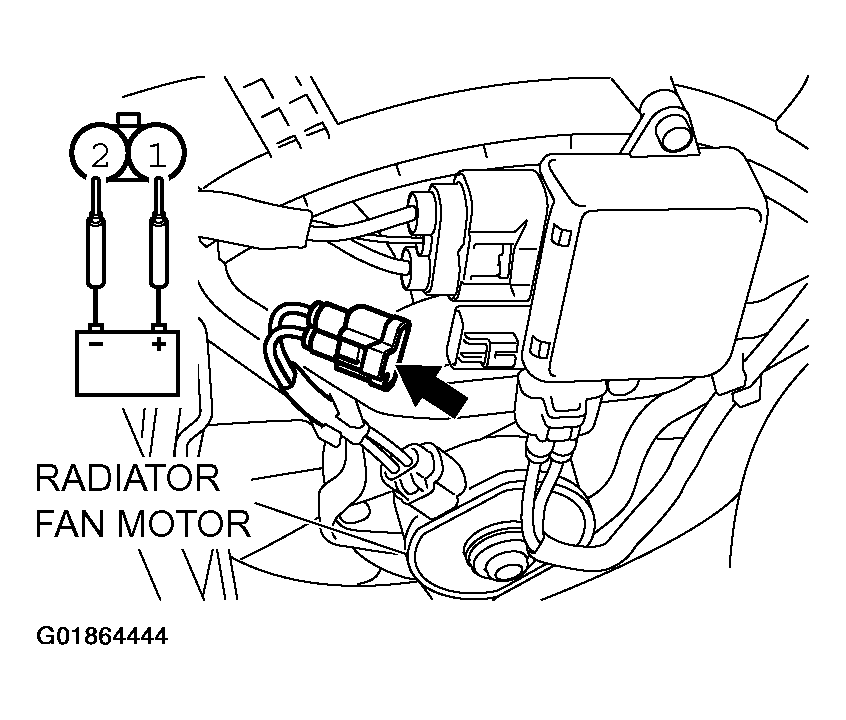

    Fig 1: Checking Radiator Fan Motor Operation
    G01864444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If the radiator fan motor is defective, replace it.
