Home >> Mitsubishi >> 2003 >> Outlander XLS, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door >> Window Glass Run Channel And Door Opening Weather-Strip >> Removal And Installation >> Notes

Removal And Installation: Notes

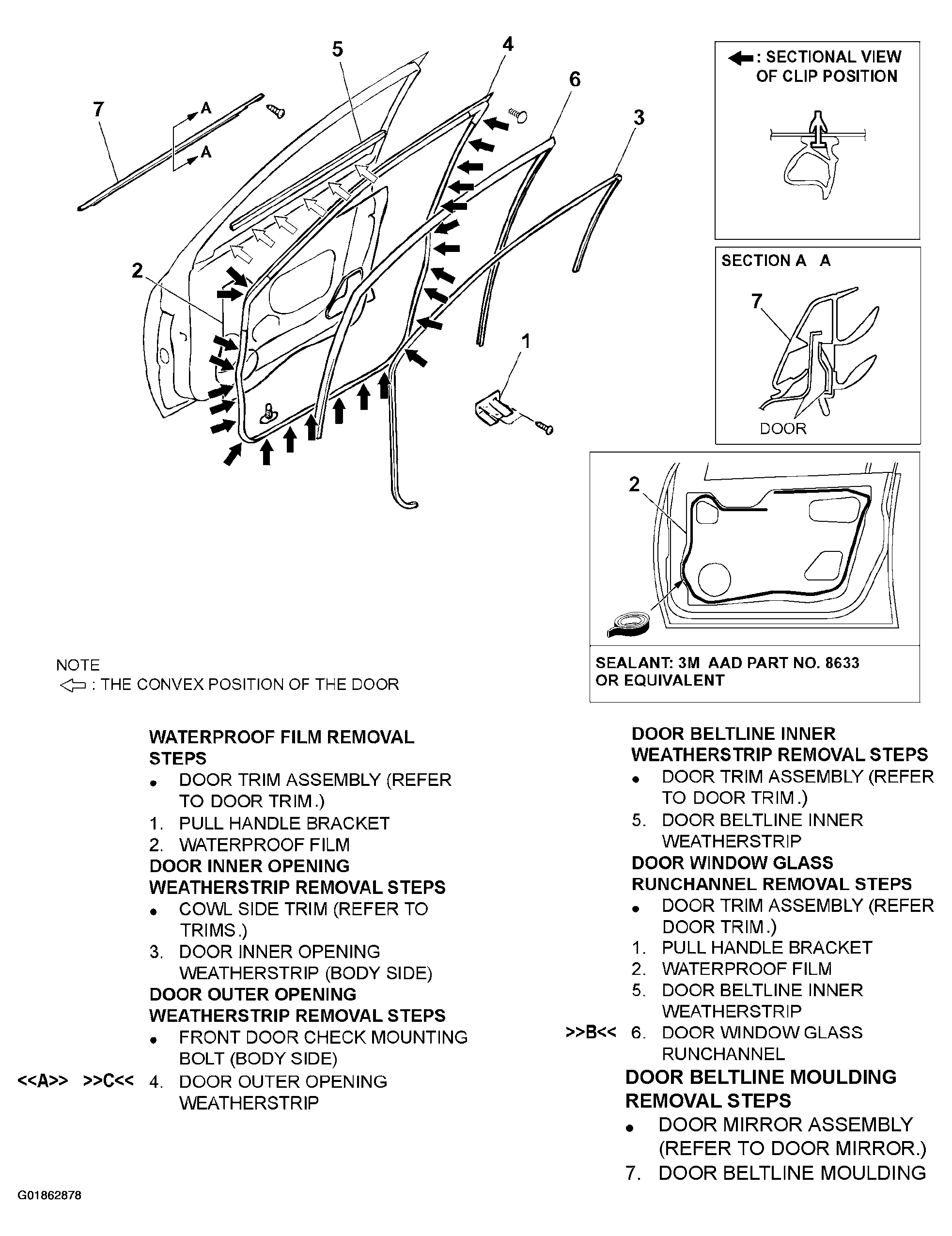

Fig 1: Identifying Window Glass Run Channel & Door Opening Weather-Strip Components (Front Door)
G01862878Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

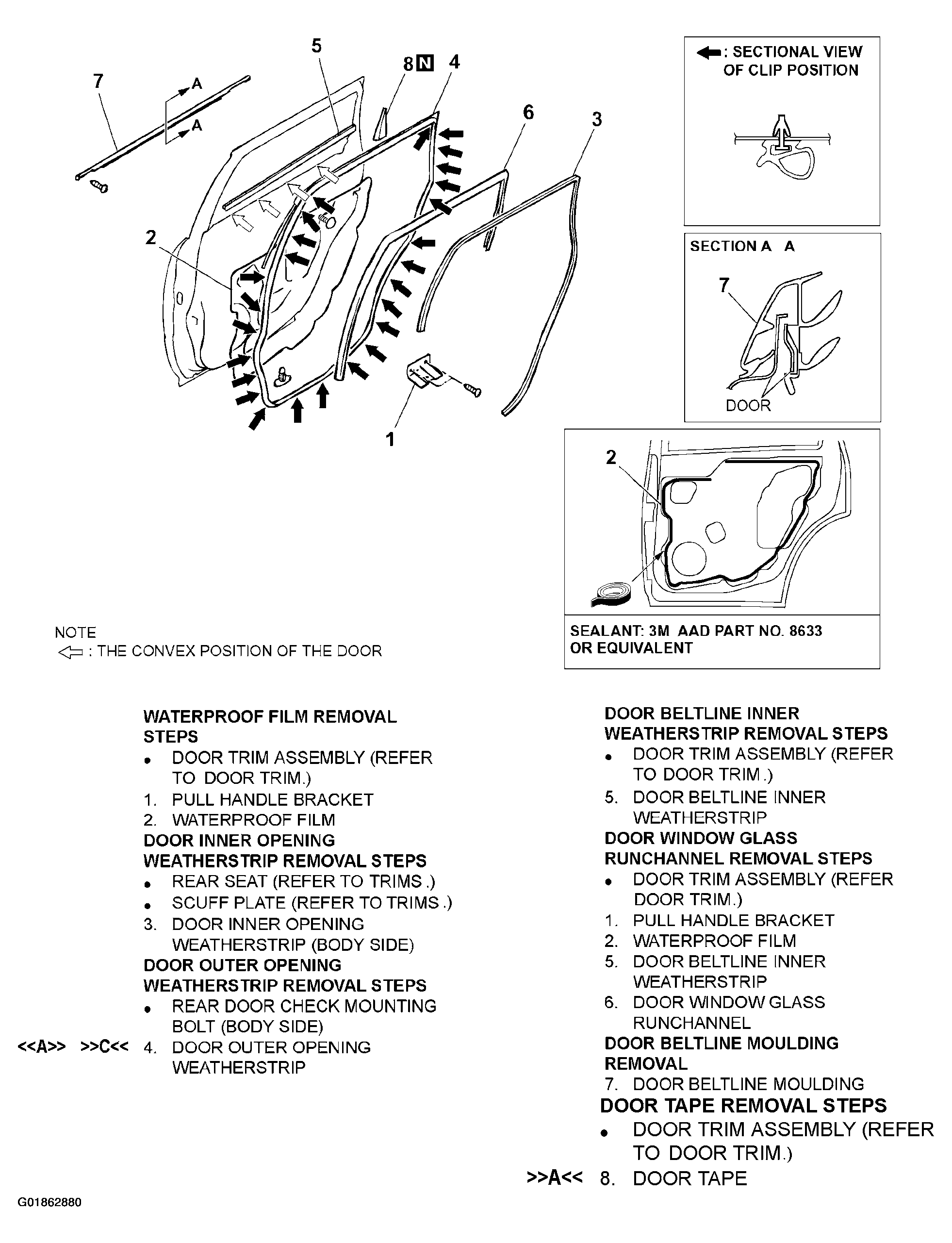

Fig 2: Identifying Window Glass Run Channel & Door Opening Weather-Strip Components (Rear Door)
G01862880Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
