Removal And Installation: Notes

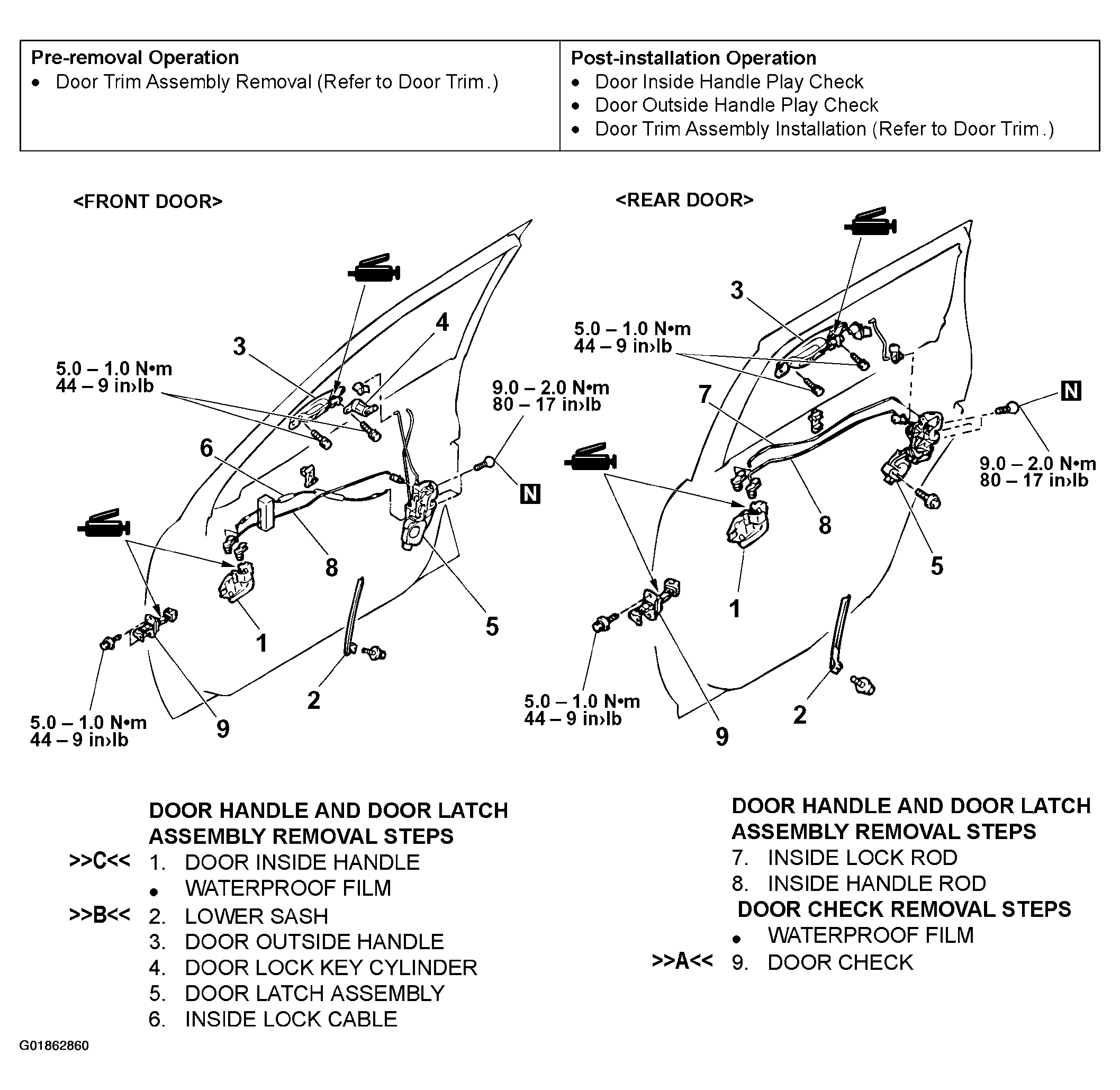

Fig 1: Identifying Door Handle & Latch Components
G01862860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
