Power Window Switch Continuity Check

Remove the power window switch. (Refer to GROUP 52A, Door Trim DISASSEMBLY AND ASSEMBLY .)

Power window main switch's front < LH > switch check

Connect the terminal number 13 to the battery (+) post, and the terminal number 12 to the battery (-) post.

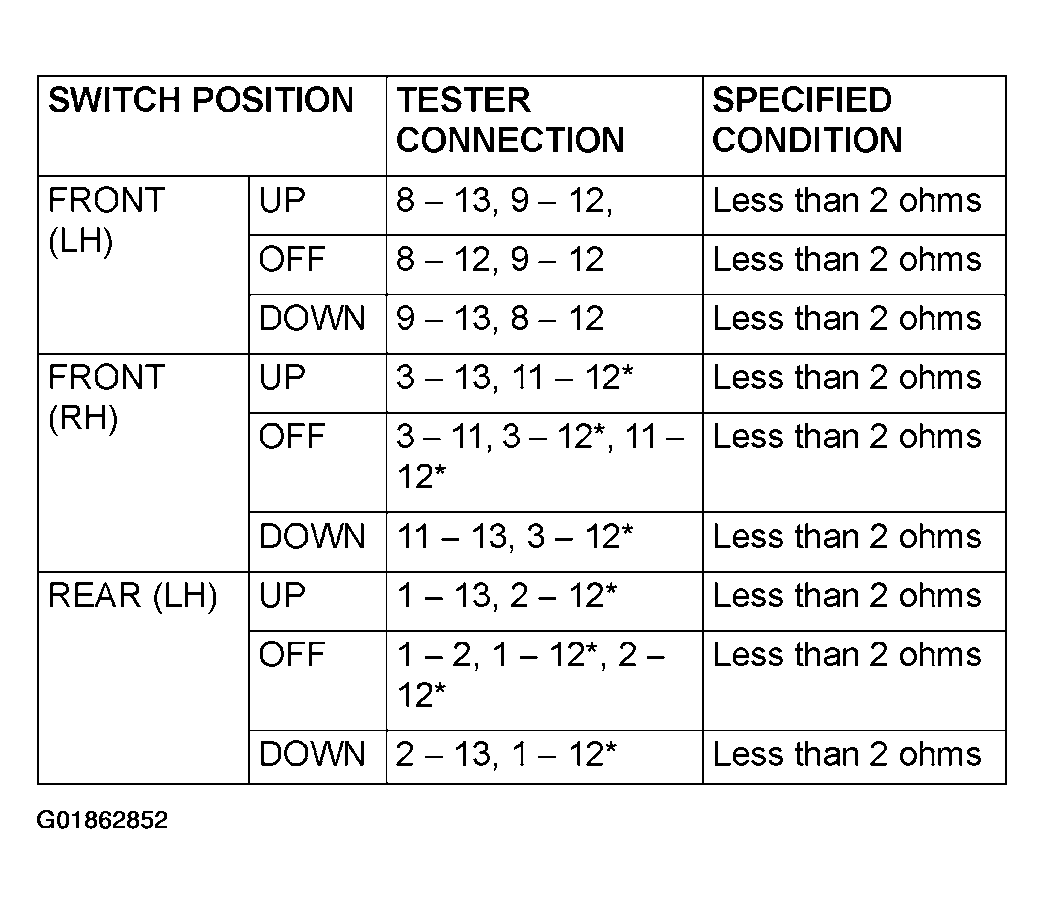

Fig 1: Power Window Main Switch Continuity Check Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

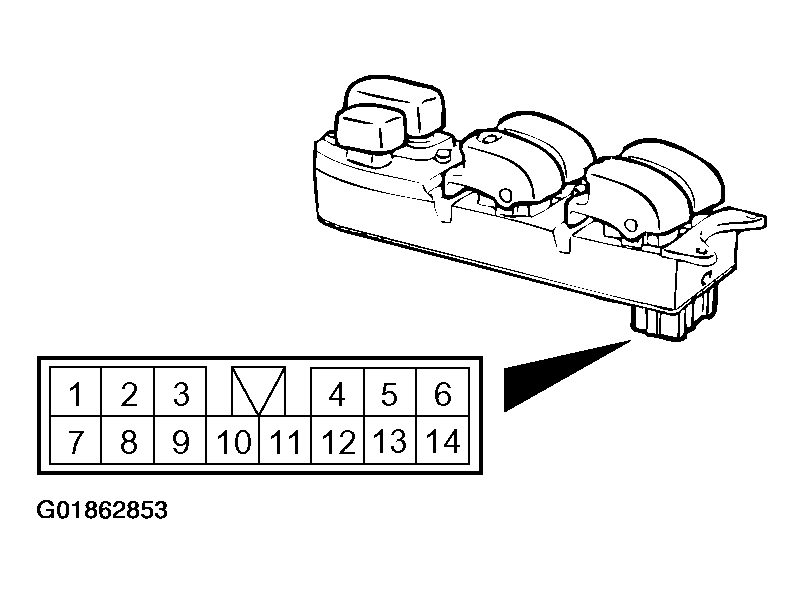

Fig 2: Identifying Power Window Main Switch Connector Terminals (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

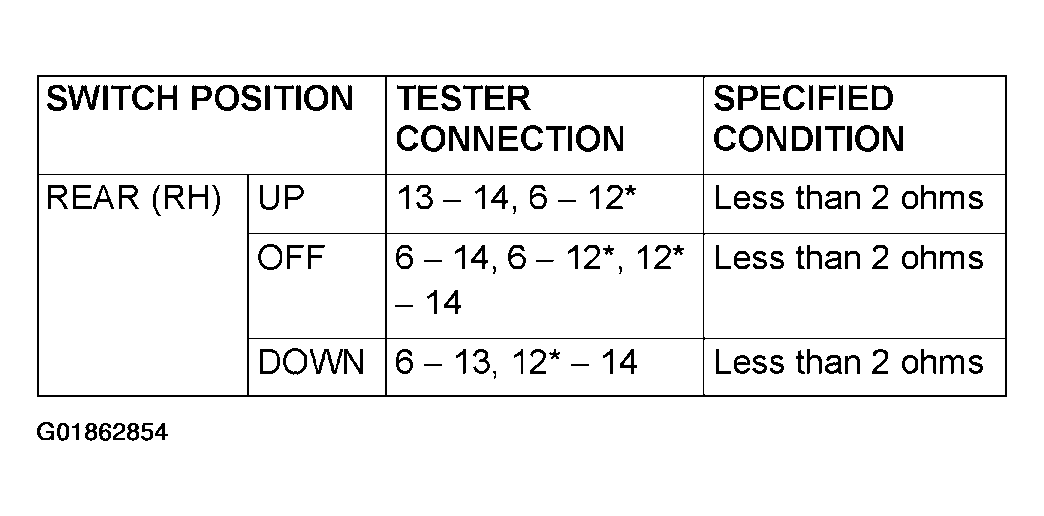

Fig 3: Identifying Power Window Main Switch Connector Terminals (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

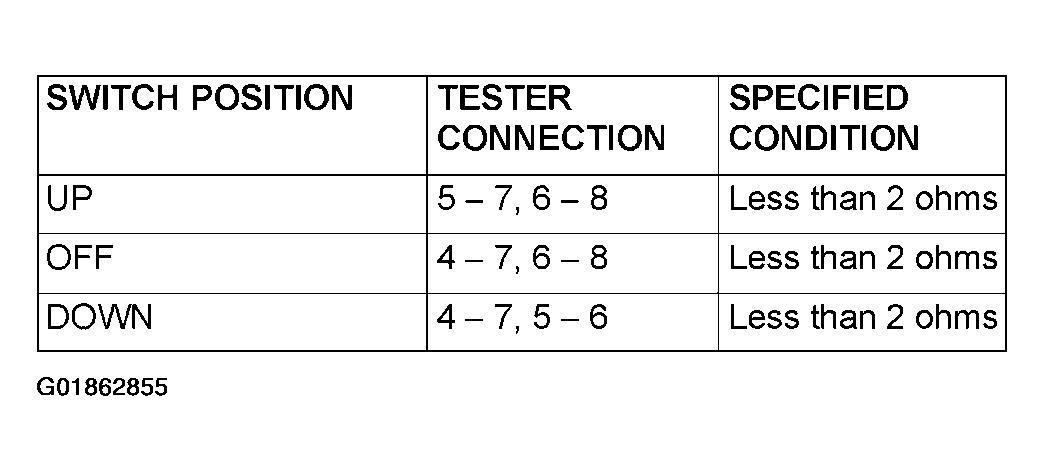

Fig 4: Power Window Sub Switch Continuity Check Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

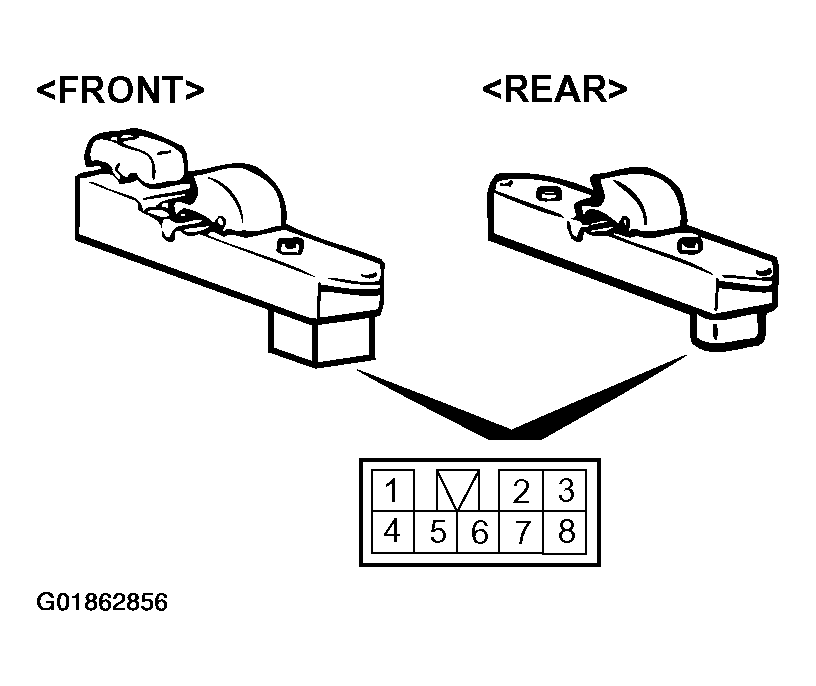

Fig 5: Identifying Power Window Sub Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
