INSPECTION PROCEDURE 1: There is no Display.: Notes

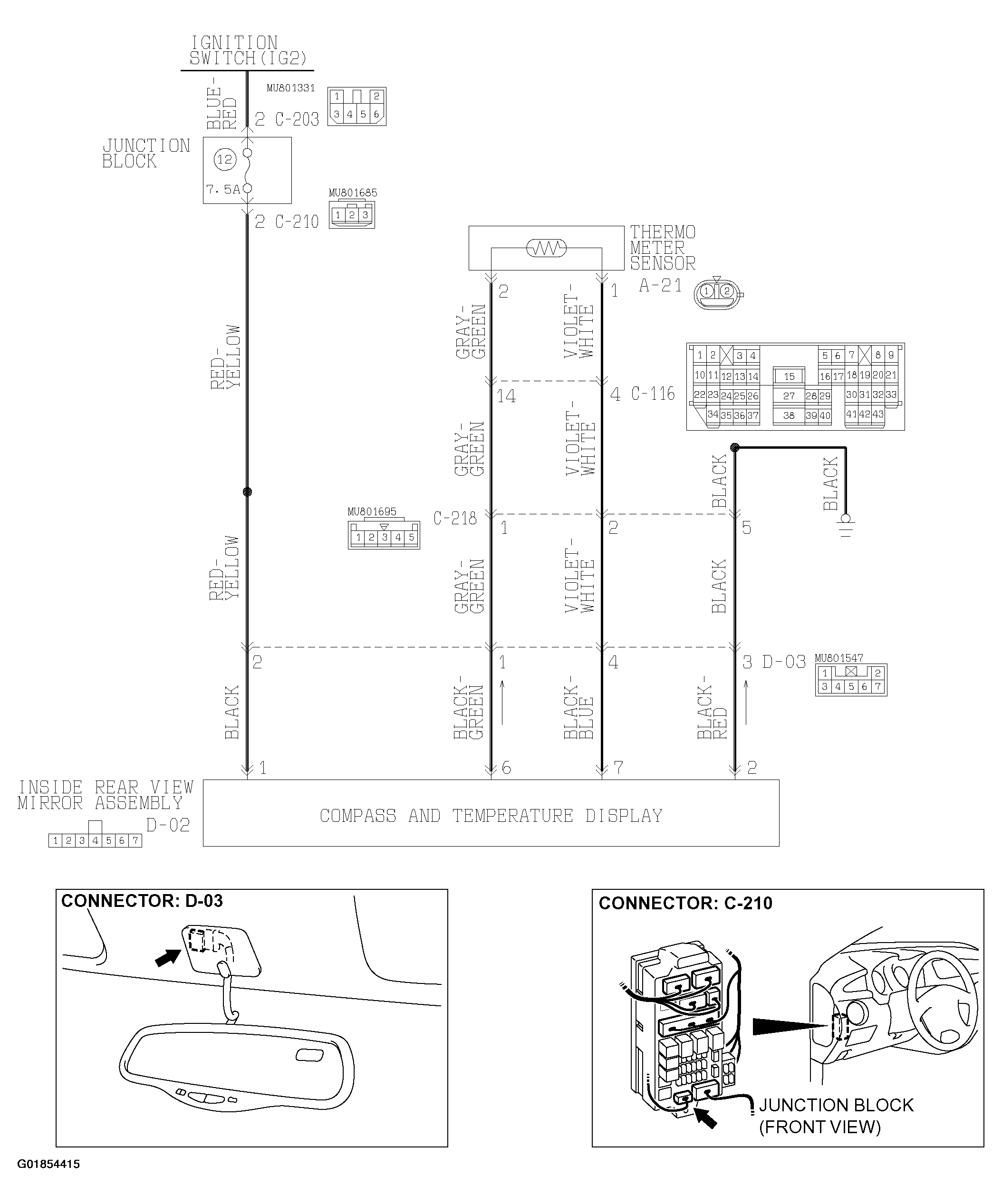

Fig 1: Compass & Temperature Circuit Diagram
G01854415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

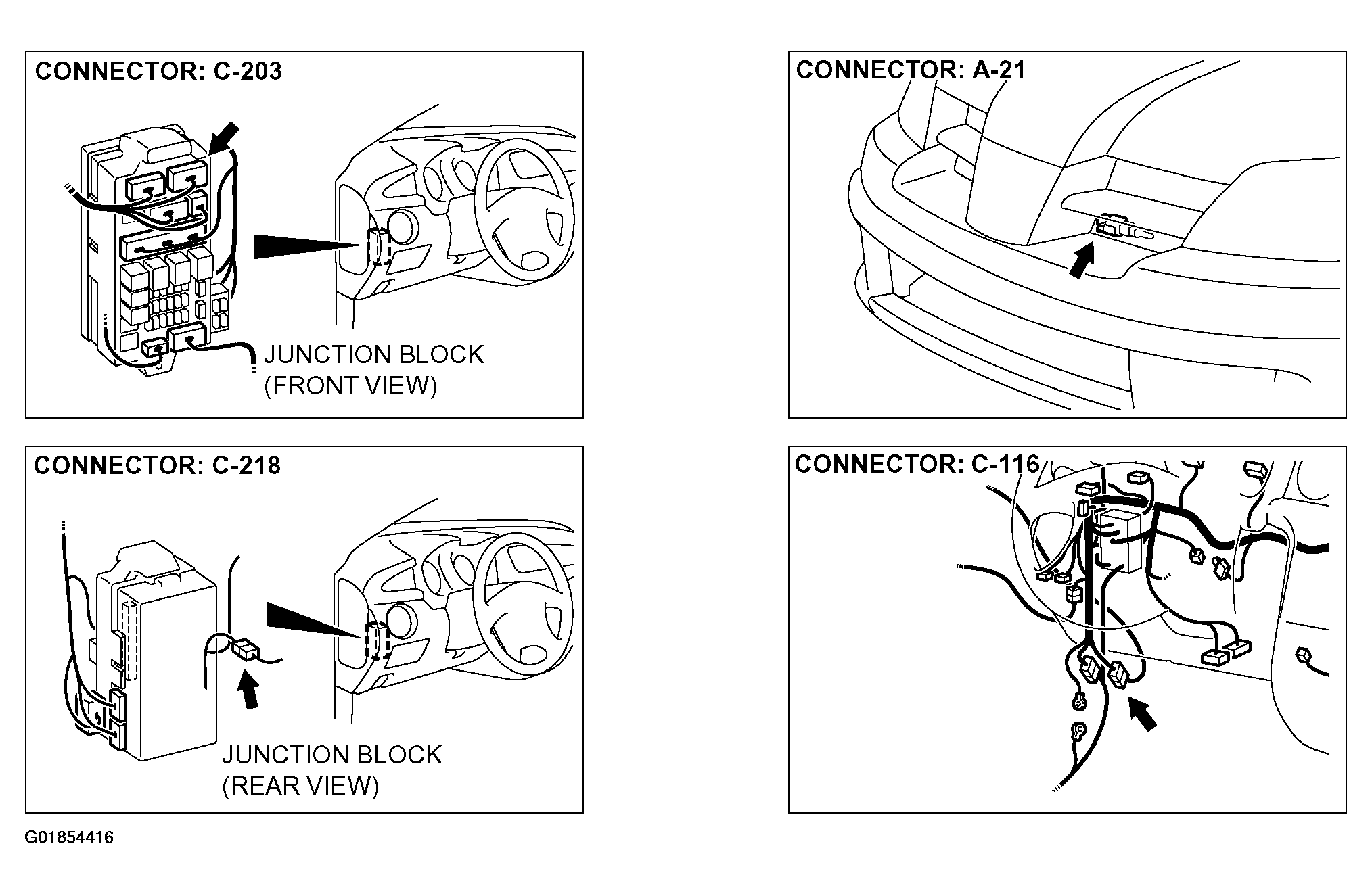

Fig 2: Identifying Compass & Temperature Circuit Harness Connectors
G01854416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
