Using a Auto-cruise Control Indicator Light

  1. Turn the ignition switch to the "ON" position while holding the auto-cruise control switch in the "SET" position (down). Then, within one second, more the auto-cruise control switch up to the "RES" position.

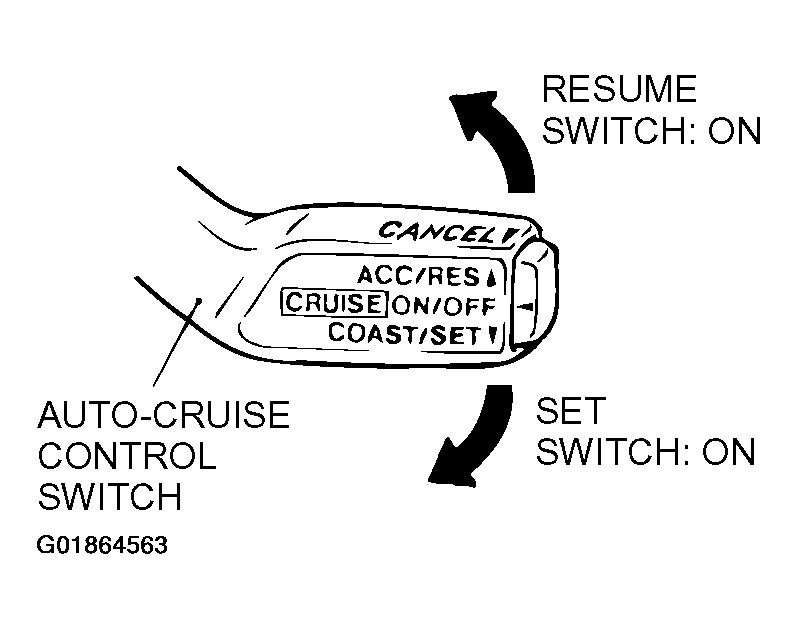

    Fig 1: Identifying Auto-Cruise Control Switch Positions
    G01864563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.
