DTC P0551: Power Steering Pressure Switch Circuit Range/Performance: Operation

A battery voltage is applied to the power steering pressure switch output terminal (terminal No. 1) from the PCM (terminal No. 52) via the resistor in the PCM. See Fig 1 .

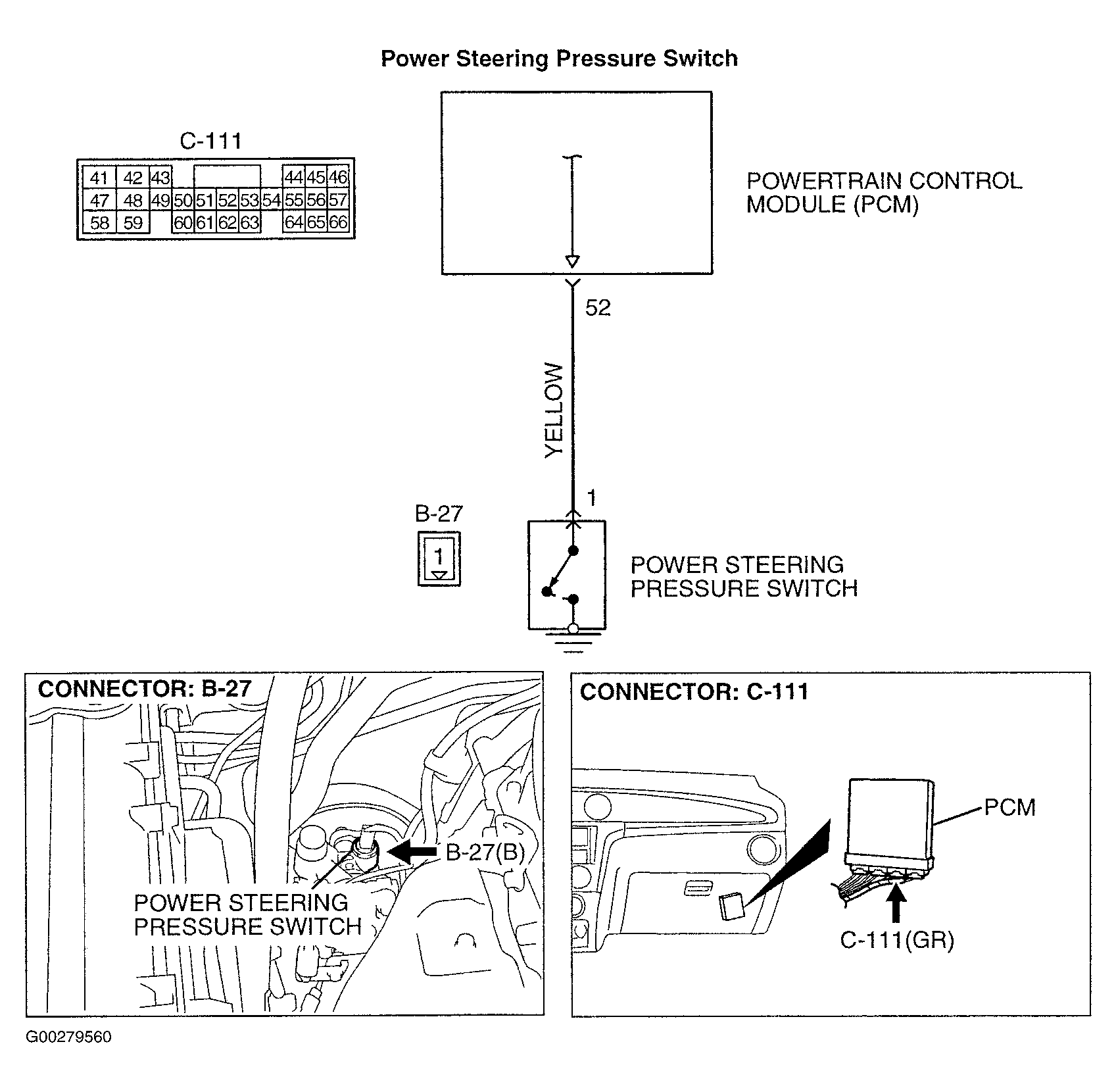

Fig 1: Power Steering Pressure Switch Circuit Wiring Diagram
G00279560Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
