Disassembly And Assembly: F4A42

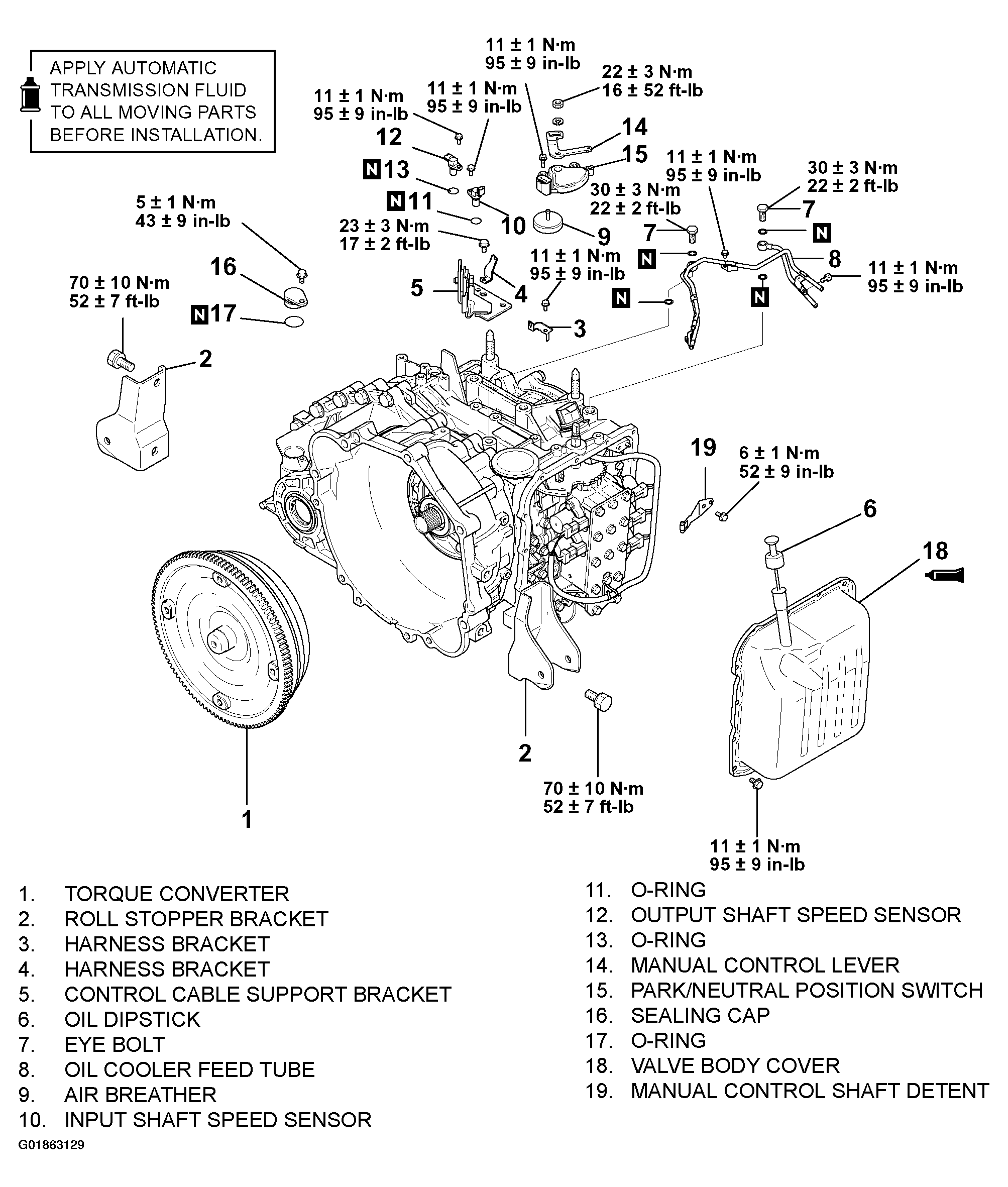

Fig 1: Exploded View And Torque Specifications Of Transaxle F4A42 (1 Of 4)
G01863129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

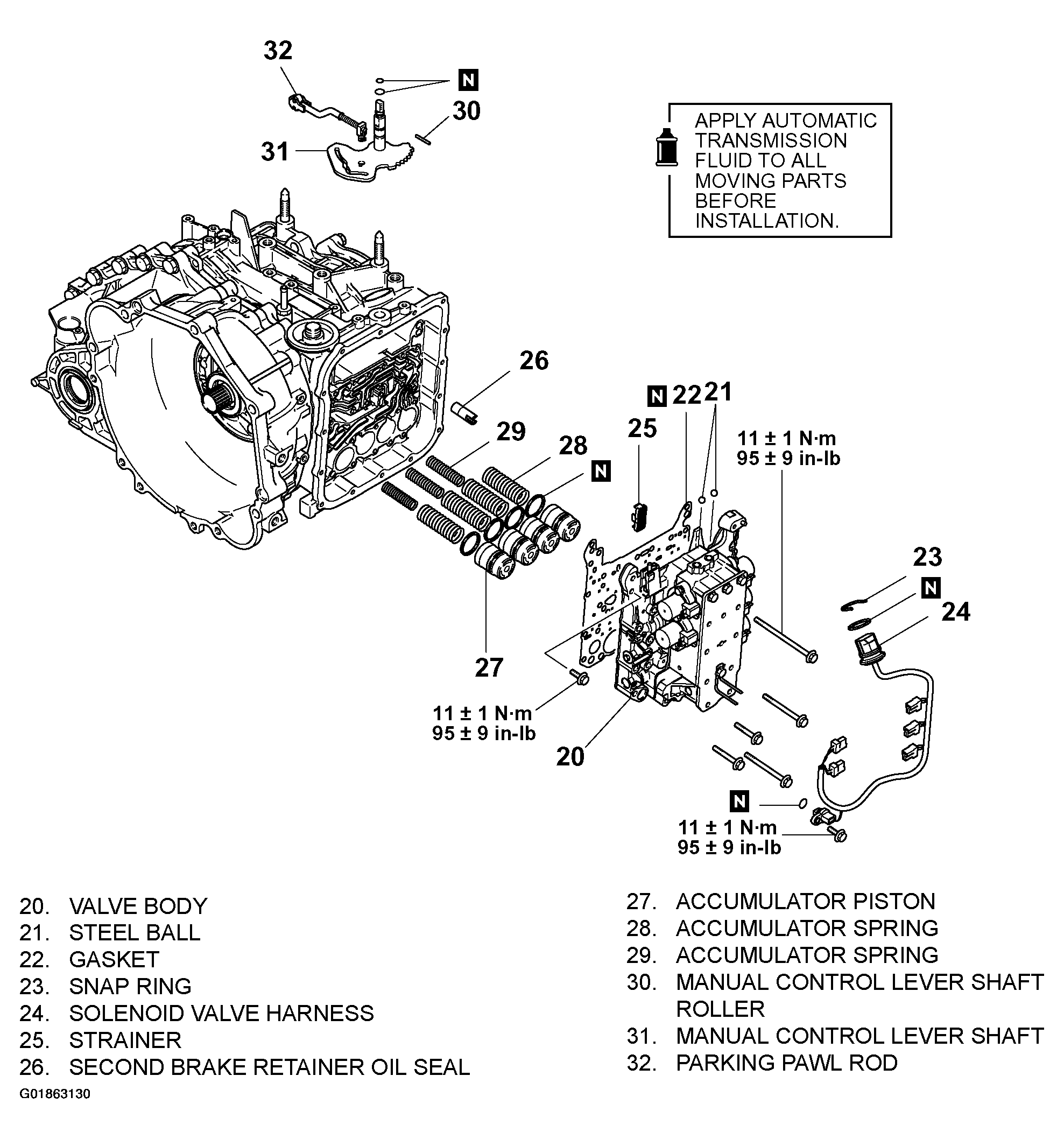

Fig 2: Exploded View And Torque Specification Of Transaxle F4A42 (2 Of 4)
G01863130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

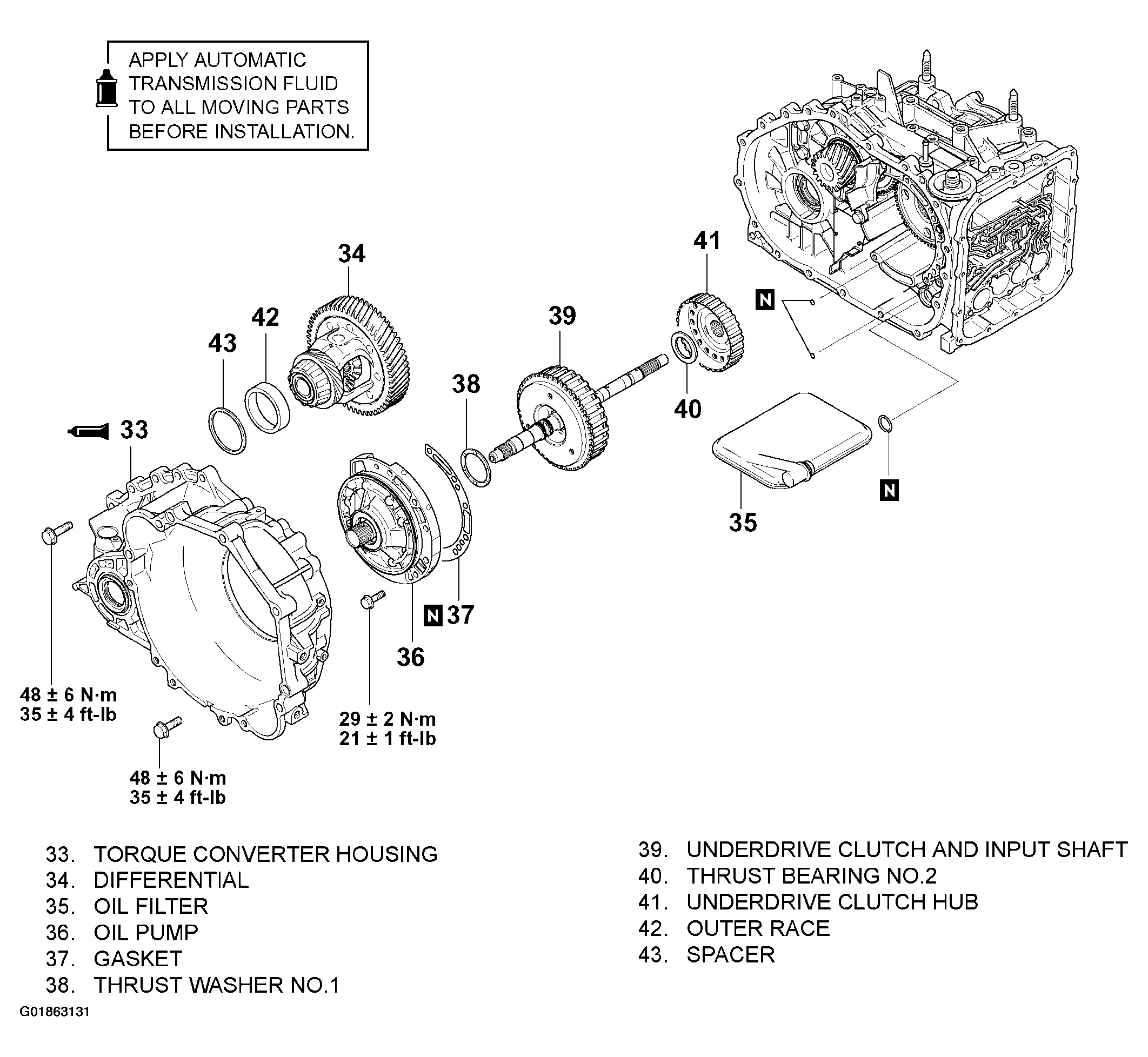

Fig 3: Exploded View And Torque Specification Of Transaxle F4A42 (3 Of 4)
G01863131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

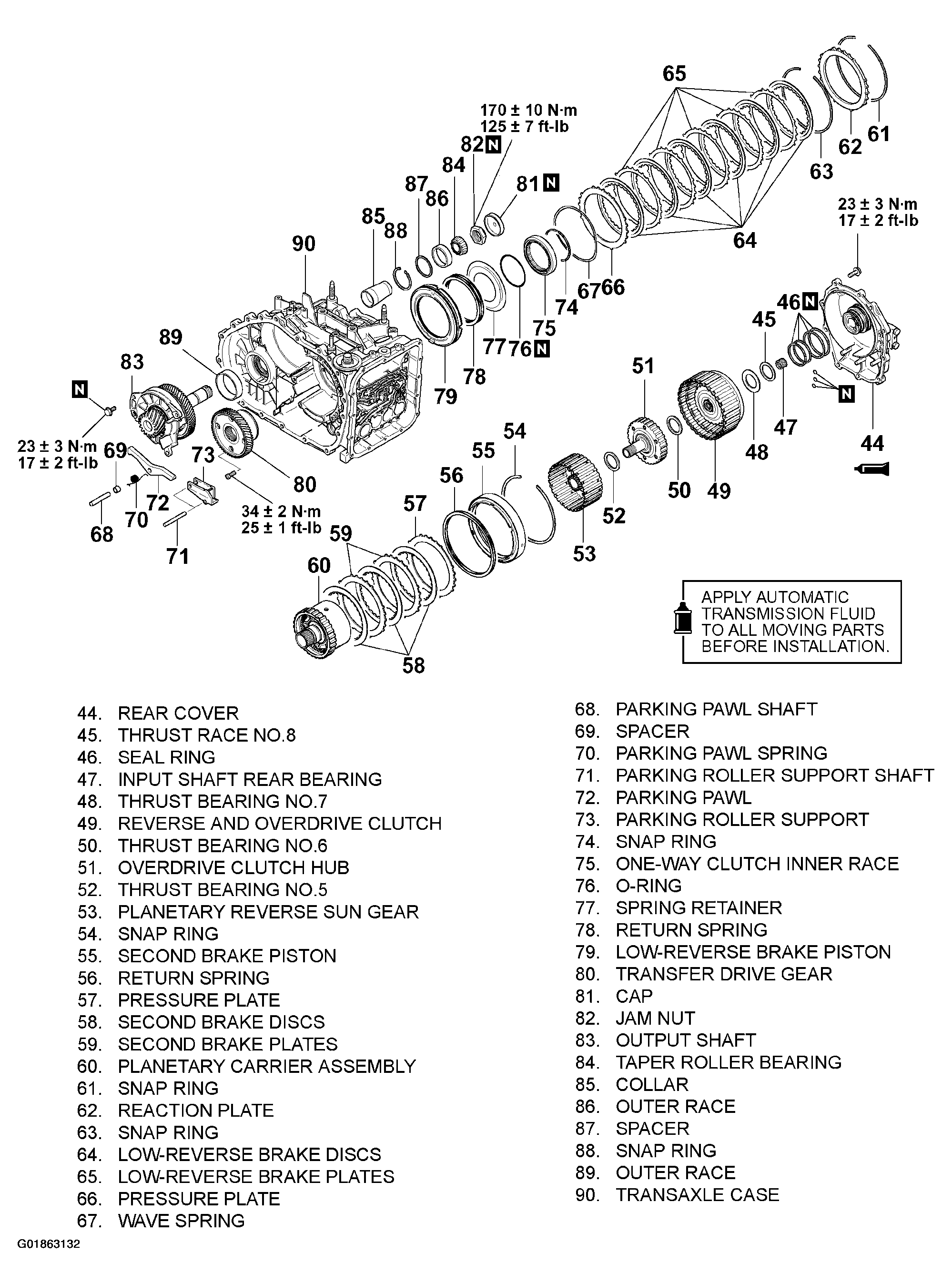

Fig 4: Exploded View And Torque Specification Of Transaxle F4A42 (4 Of 4)
G01863132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
