Road Test

Check by the following procedures

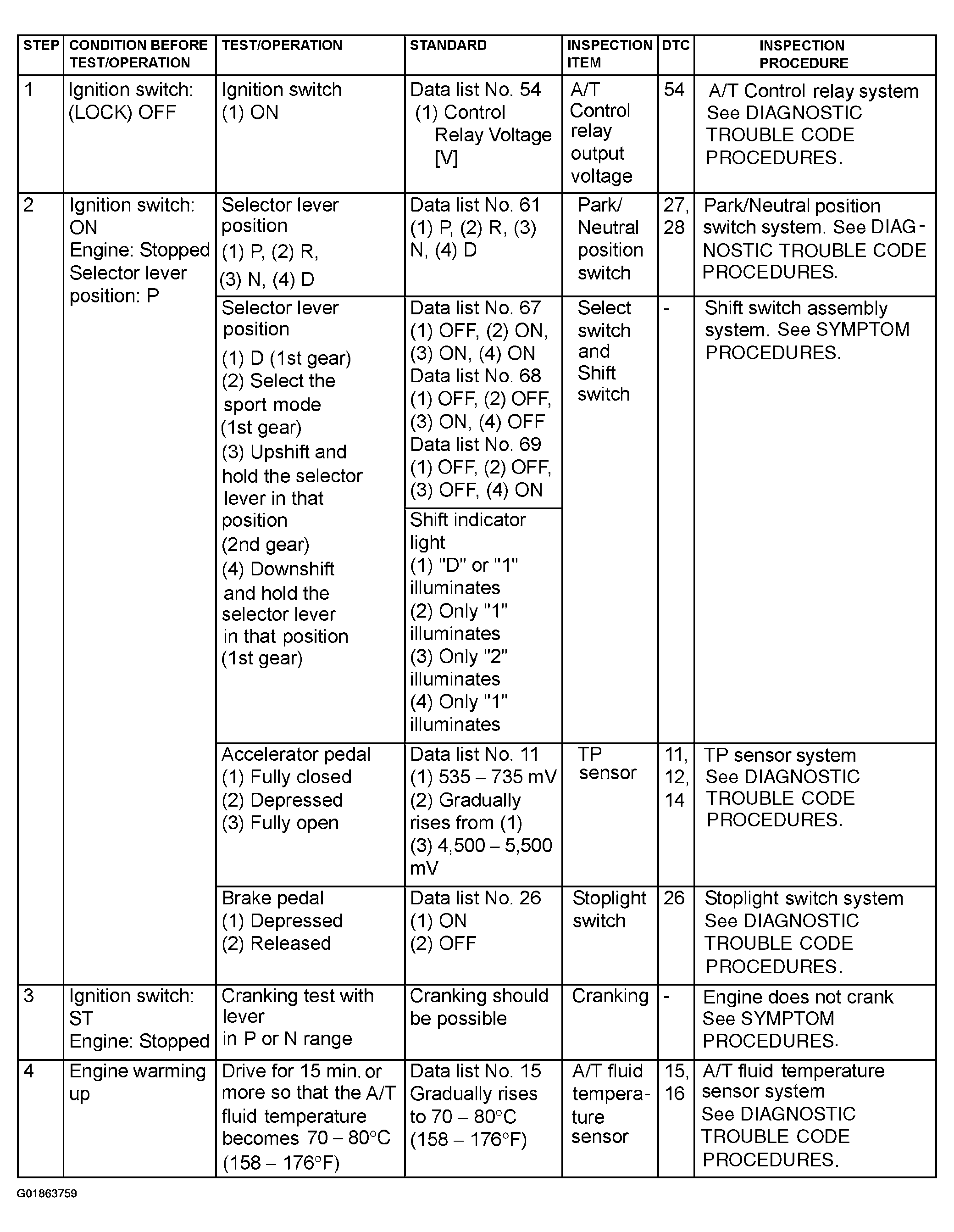

Fig 1: Road Test Procedure (1 Of 6)
G01863759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

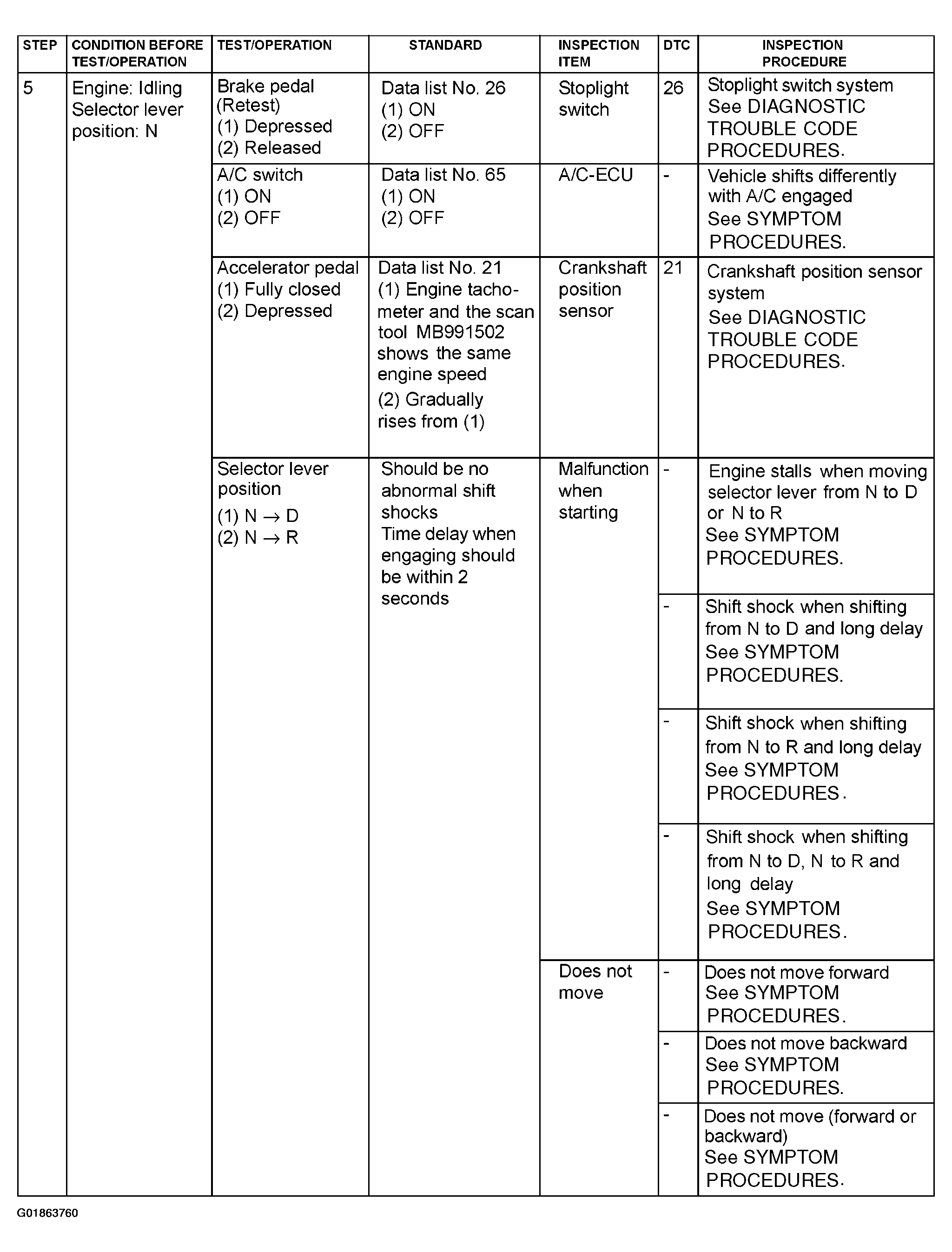

Fig 2: Road Test Procedure (2 Of 6)
G01863760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

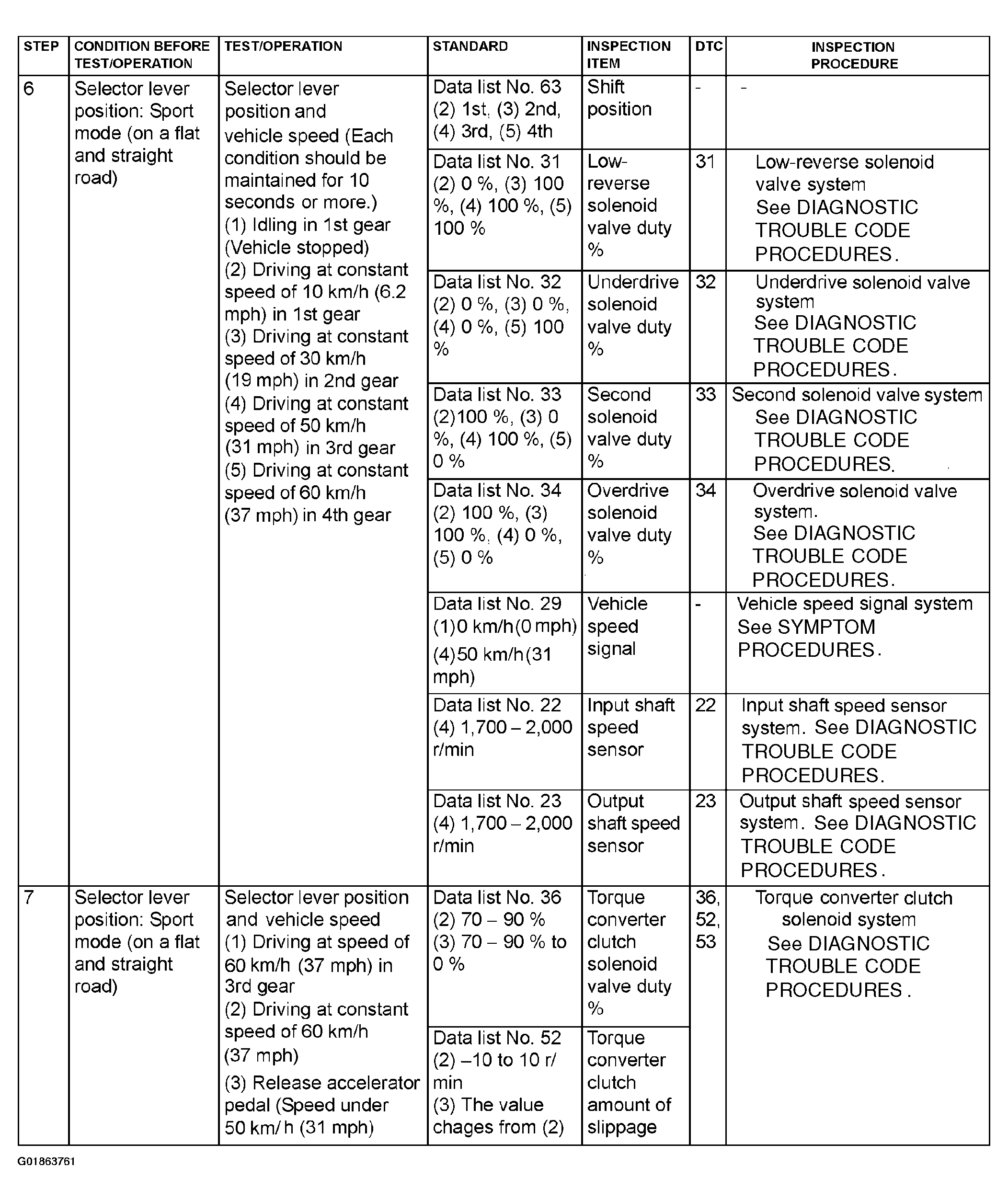

Fig 3: Road Test Procedure (3 Of 6)
G01863761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

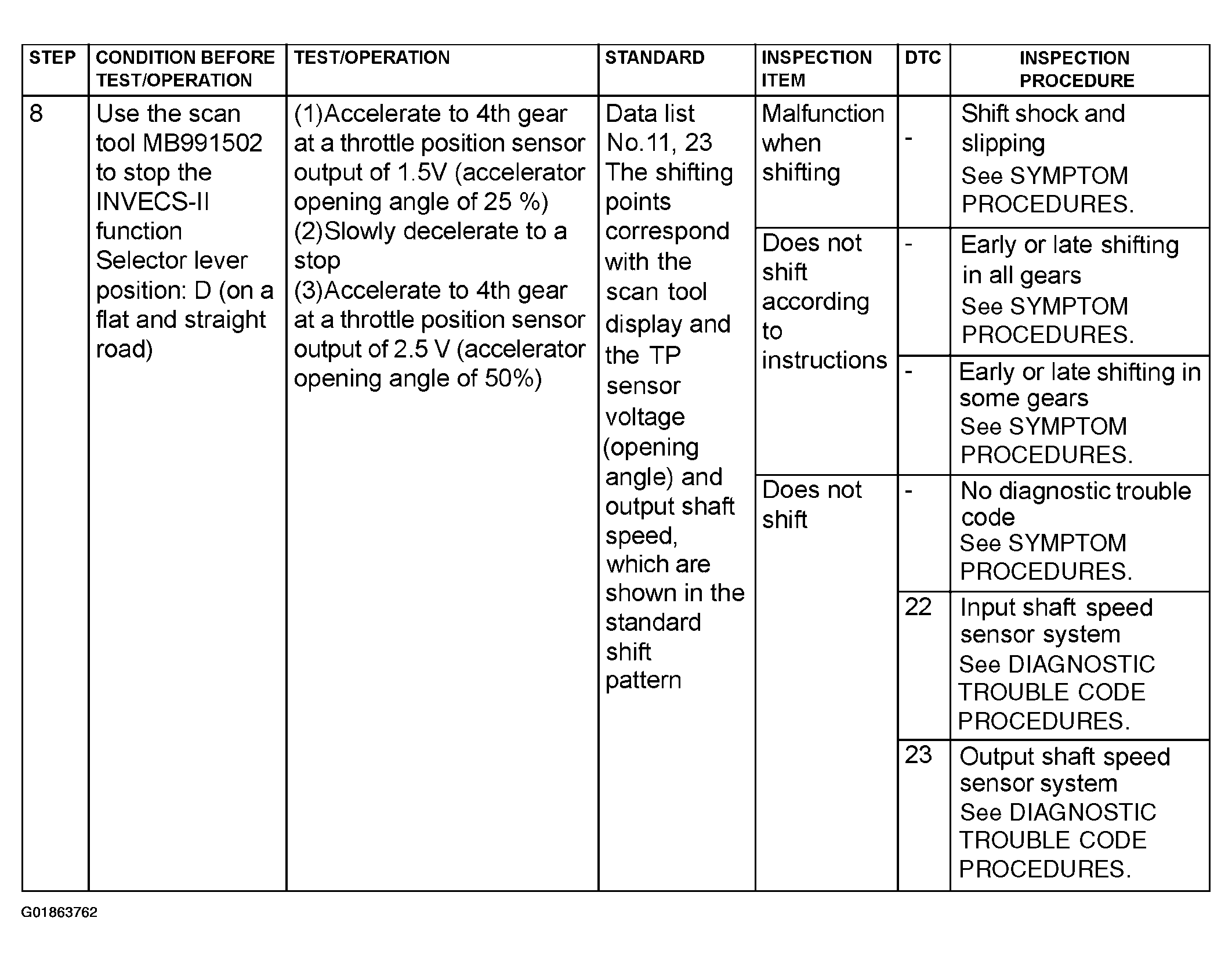

Fig 4: Road Test Procedure (4 Of 6)
G01863762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

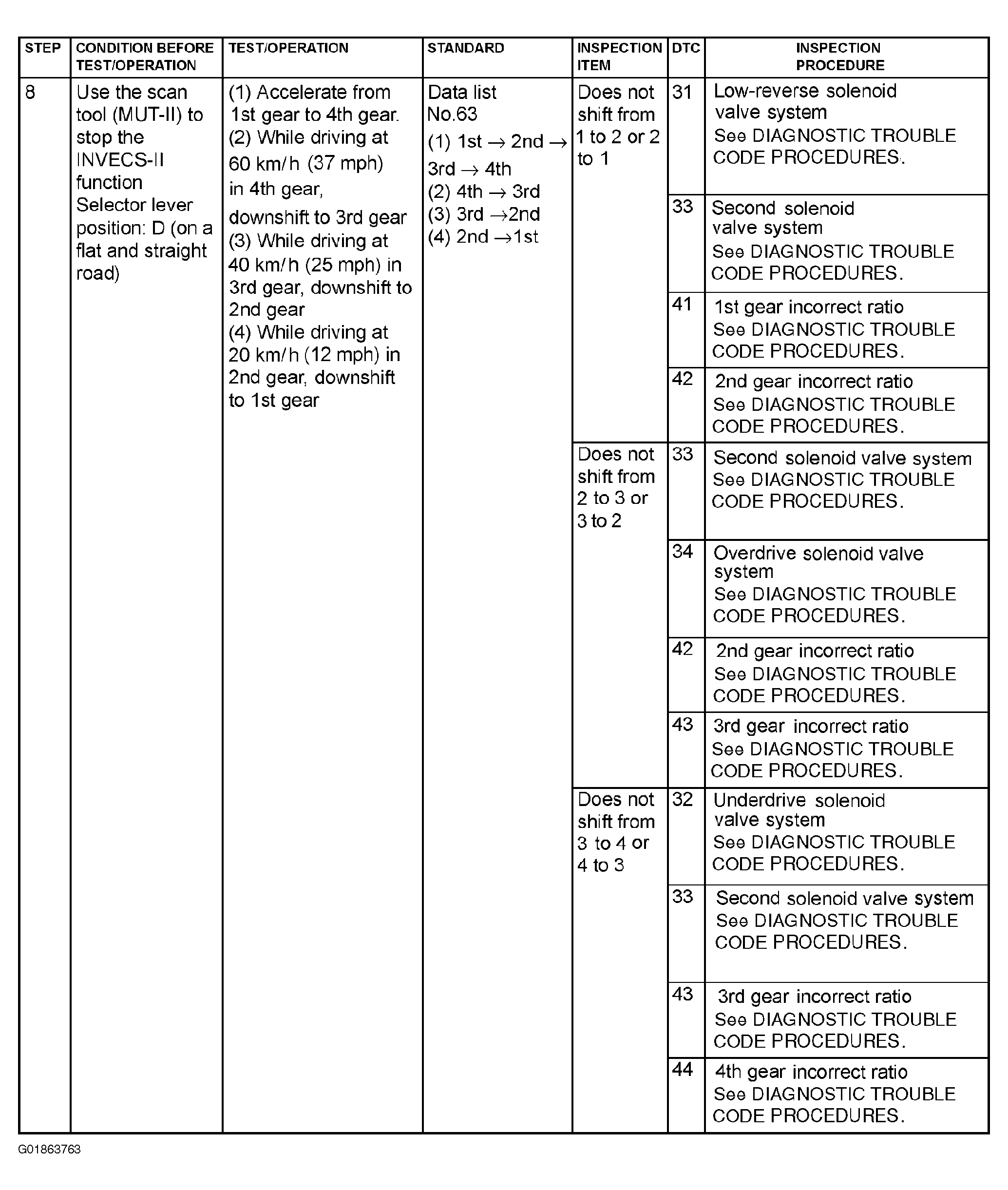

Fig 5: Road Test Procedure (5 Of 6)
G01863763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

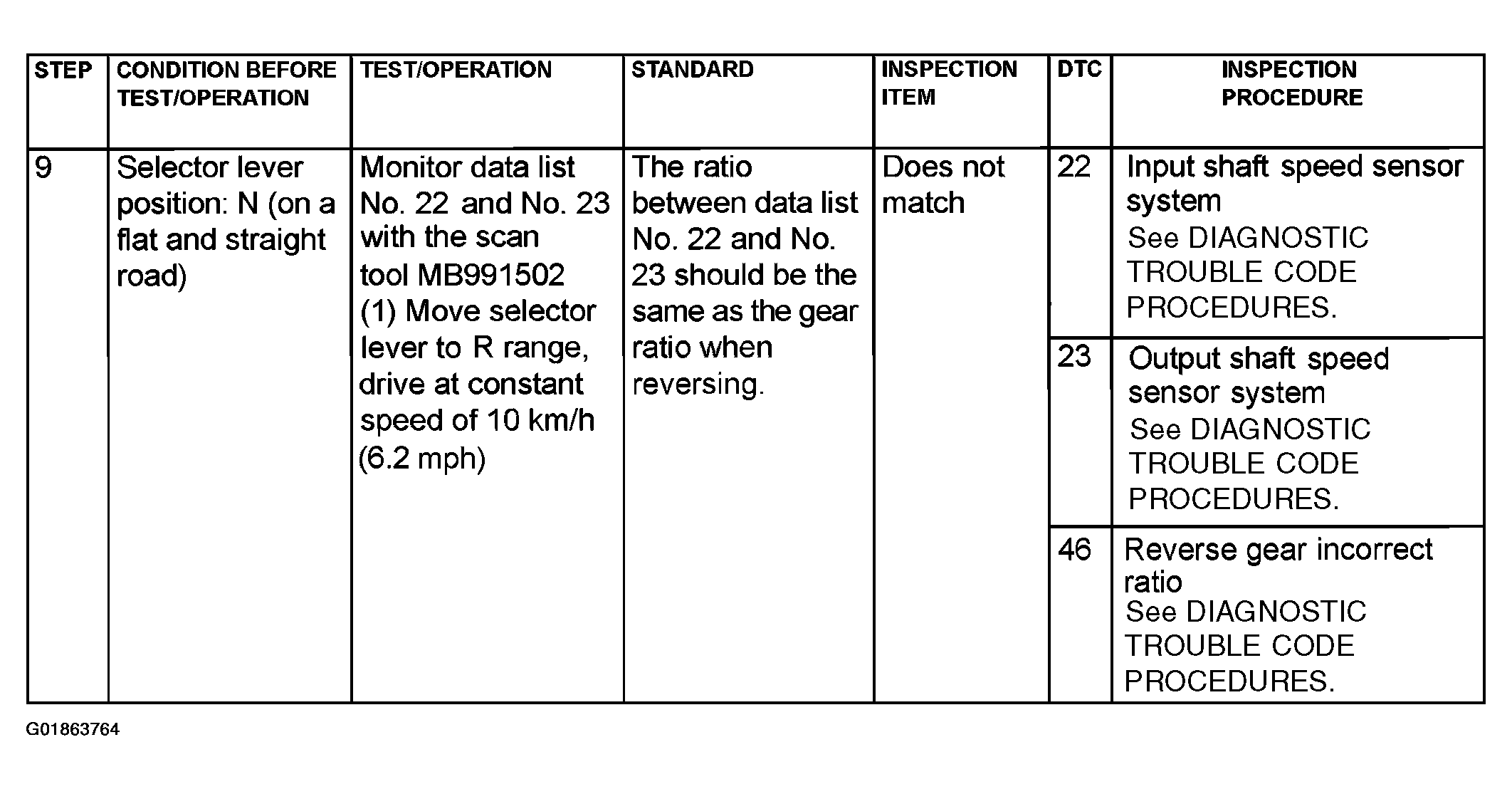

Fig 6: Road Test Procedure (6 Of 6)
G01863764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
