Inspection Procedure Using An Oscilloscope

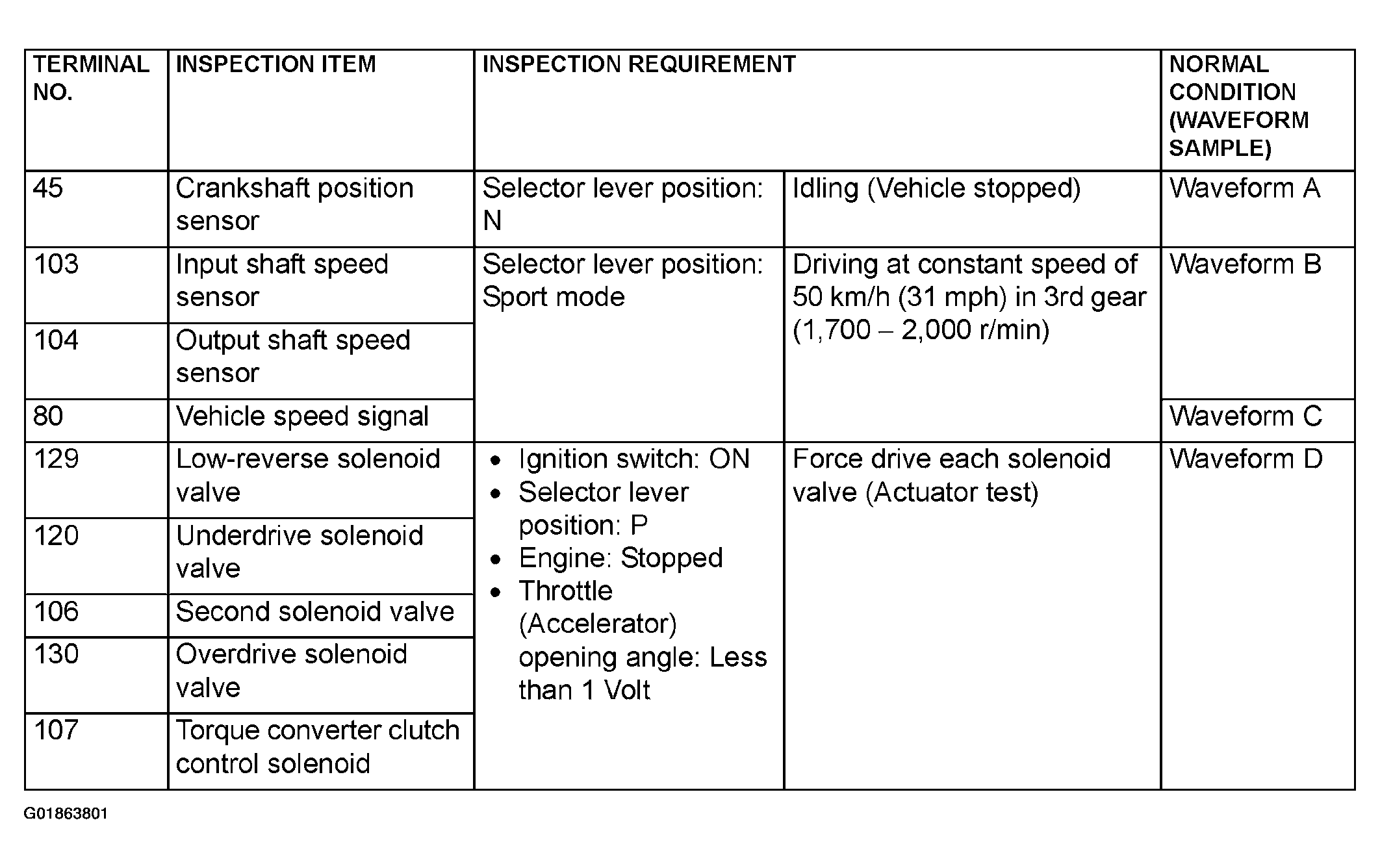

Fig 1: Inspection Procedure Chart Using An Oscilloscope (PCM)
G01863801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Waveform sample

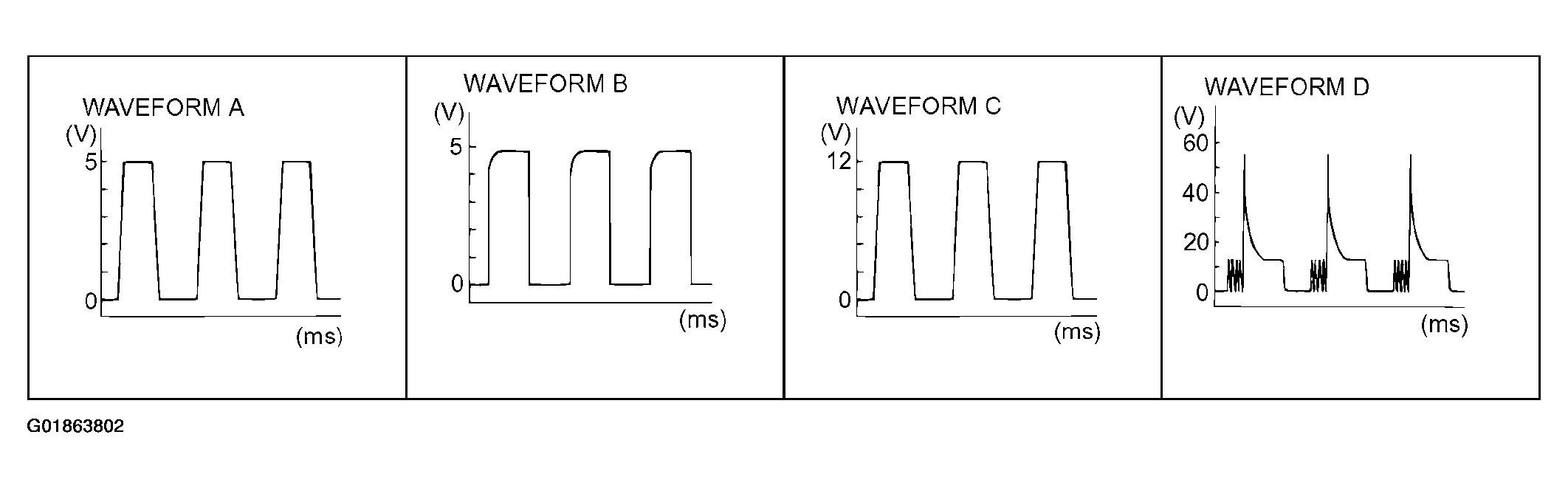

Fig 2: Waveform Samples
G01863802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
