Home >> Mitsubishi >> 2003 >> Outlander LS, AWD >> Repair and Diagnosis >> Steering >> Power Steering >> Steering Shaft >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

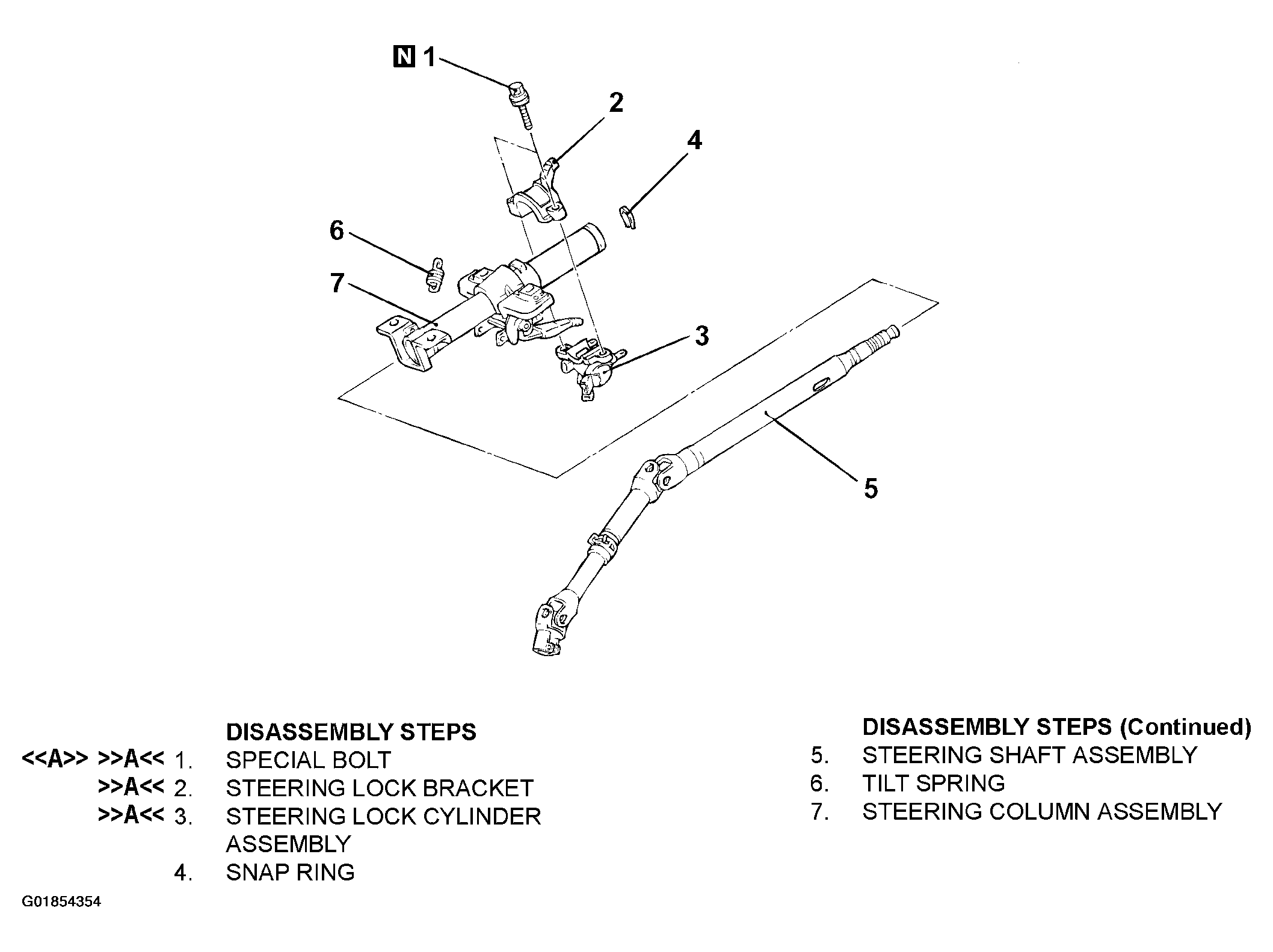

Fig 1: Identifying Steering Shaft Components

G01854354

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
