Mitsubishi
>>
2003
>>
Outlander LS, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Steering Oil Pump Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

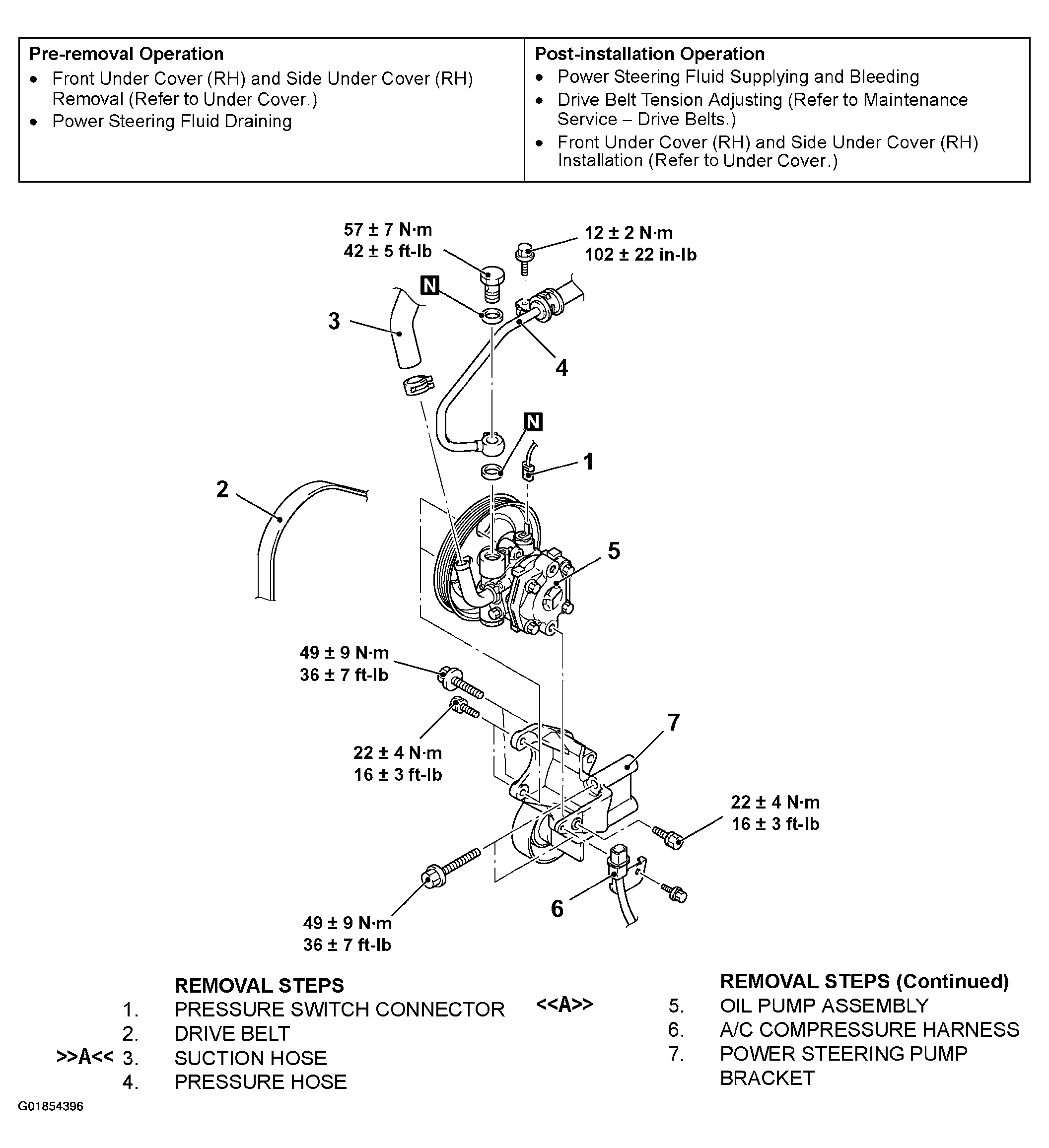

Fig 1: Identifying Power Steering Oil Pump Assembly Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
