Home >> Mitsubishi >> 2003 >> Outlander LS, AWD >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Gear Box And Linkage >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: Before removing the steering gear, refer to AIR BAG SAFETY PRECAUTIONS ). Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.
CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

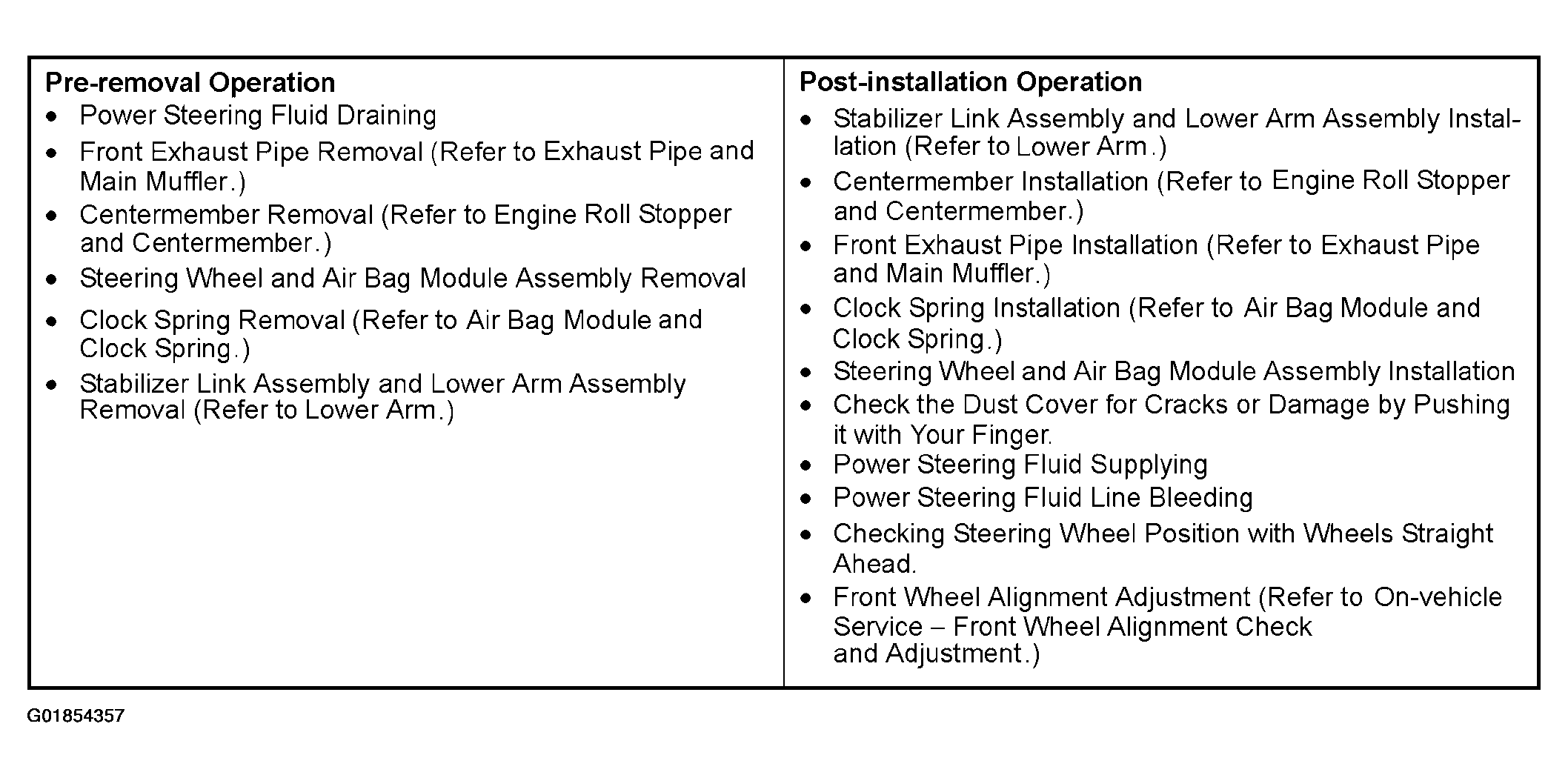

Fig 1: Pre-Removal & Post-Installation Operation Chart
G01854357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

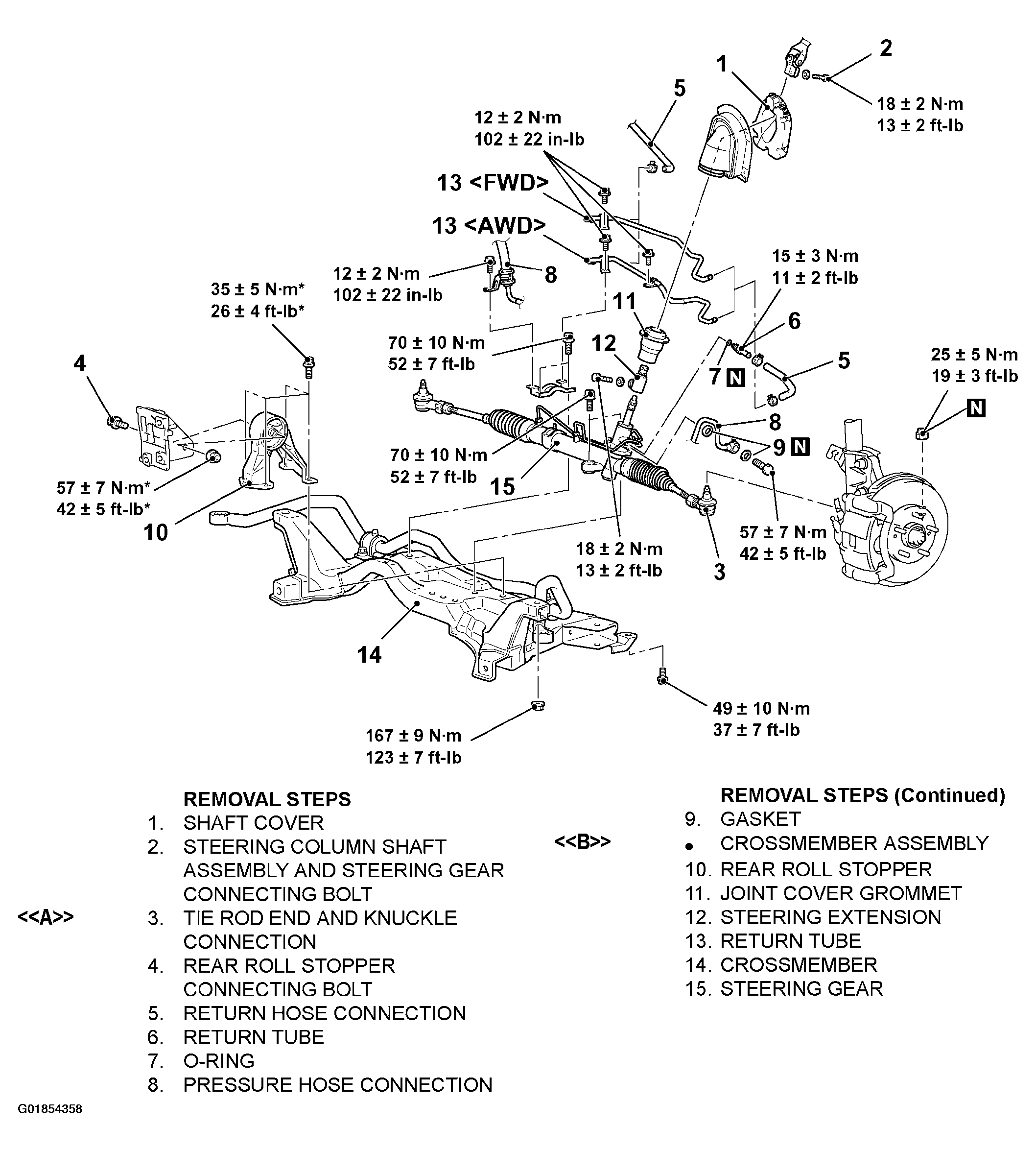

Fig 2: Identifying Power Steering Gear Box & Linkage Components
G01854358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
