Home >> Mitsubishi >> 2003 >> Outlander LS, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0300: Random/Multiple Cylinder Misfire Detected >> Operation

DTC P0300: Random/Multiple Cylinder Misfire Detected: Operation

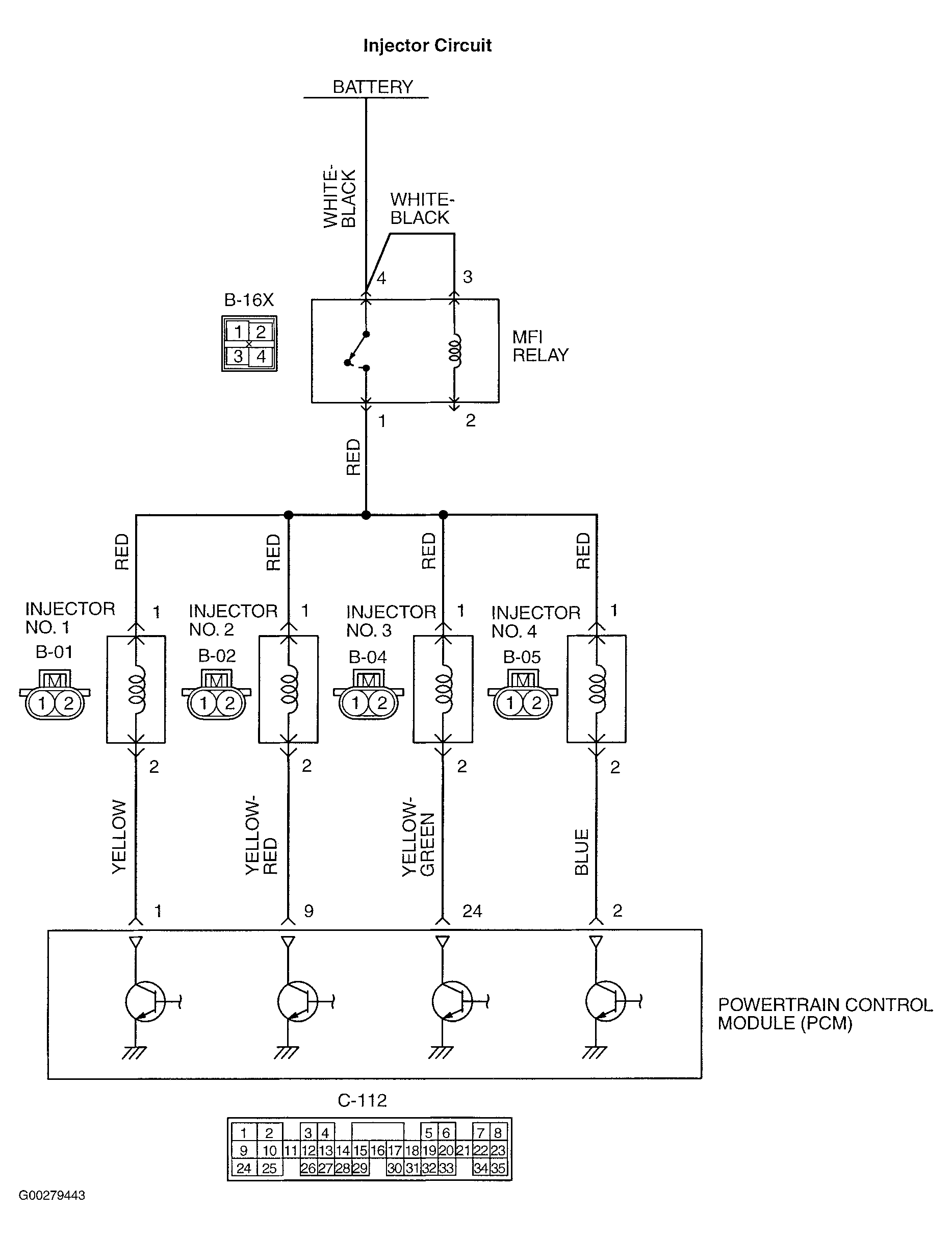

Refer to DTC P0201-P0204: INJECTOR CIRCUIT . See Figure .
