Removal And Installation: Notes

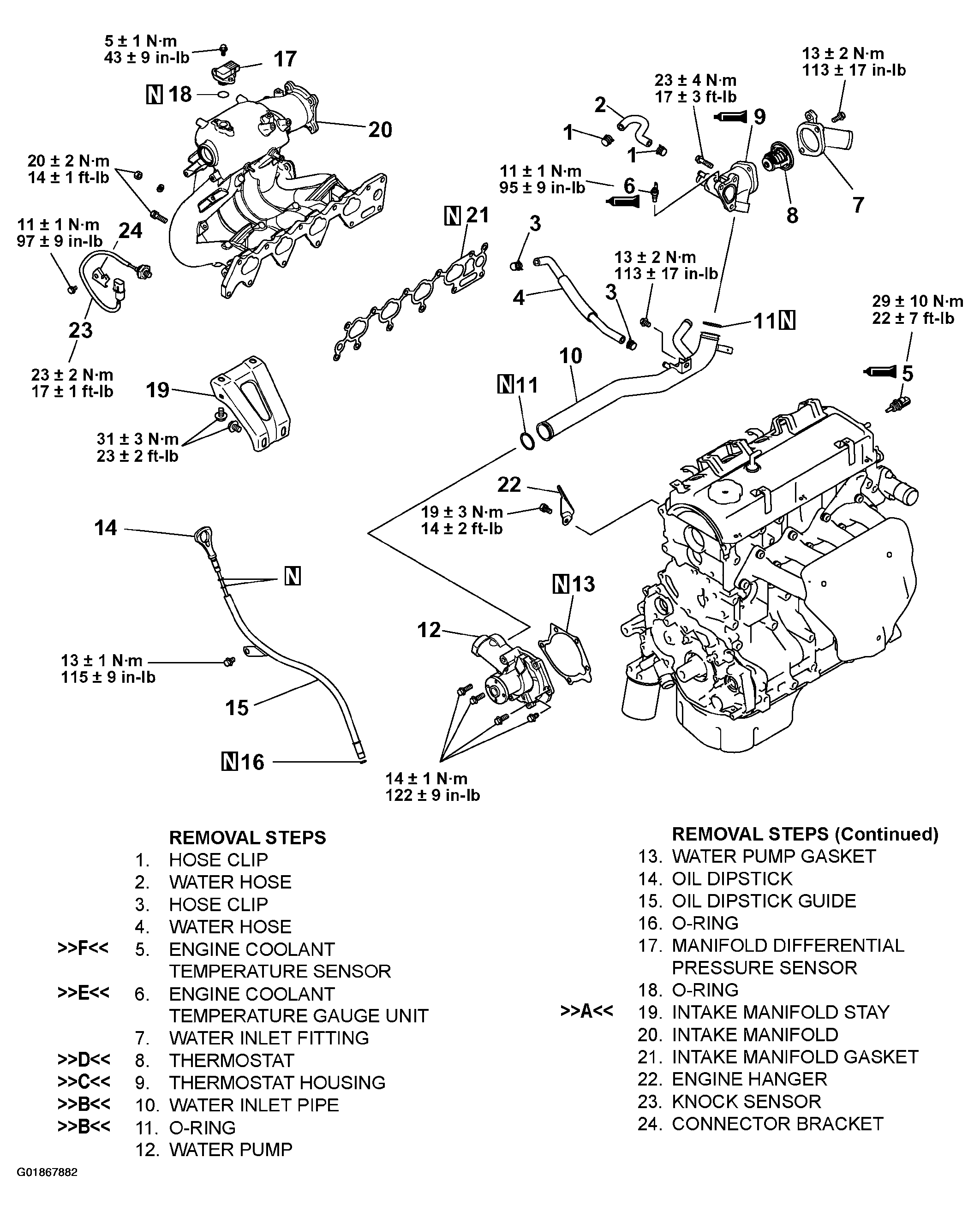

Fig 1: Removing & Installing Intake Manifold

G01867882

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
