Removal And Installation: Notes

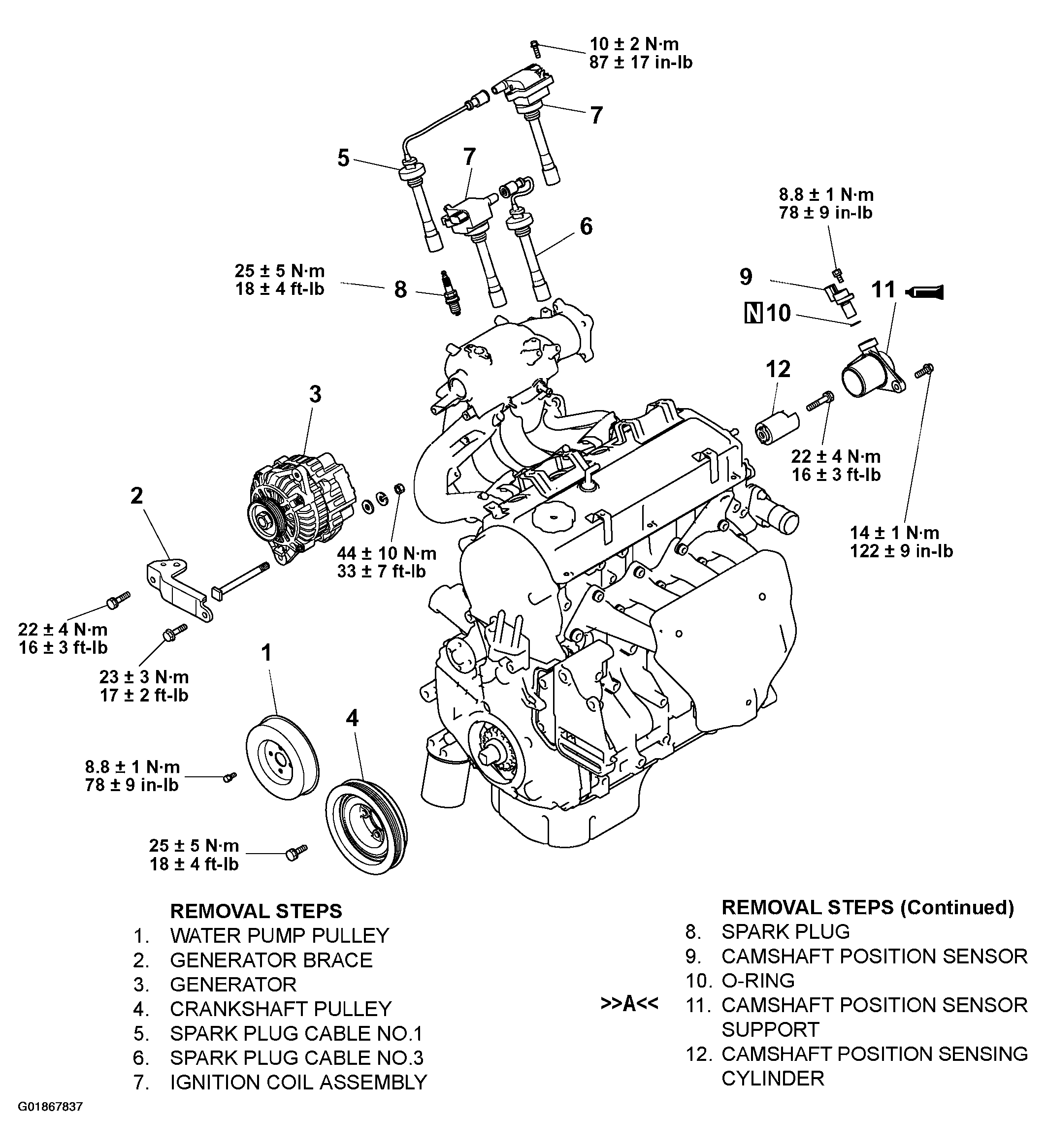

Fig 1: Removing And Installing Generator And Ignition System
G01867837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
