Removal And Installation: Notes

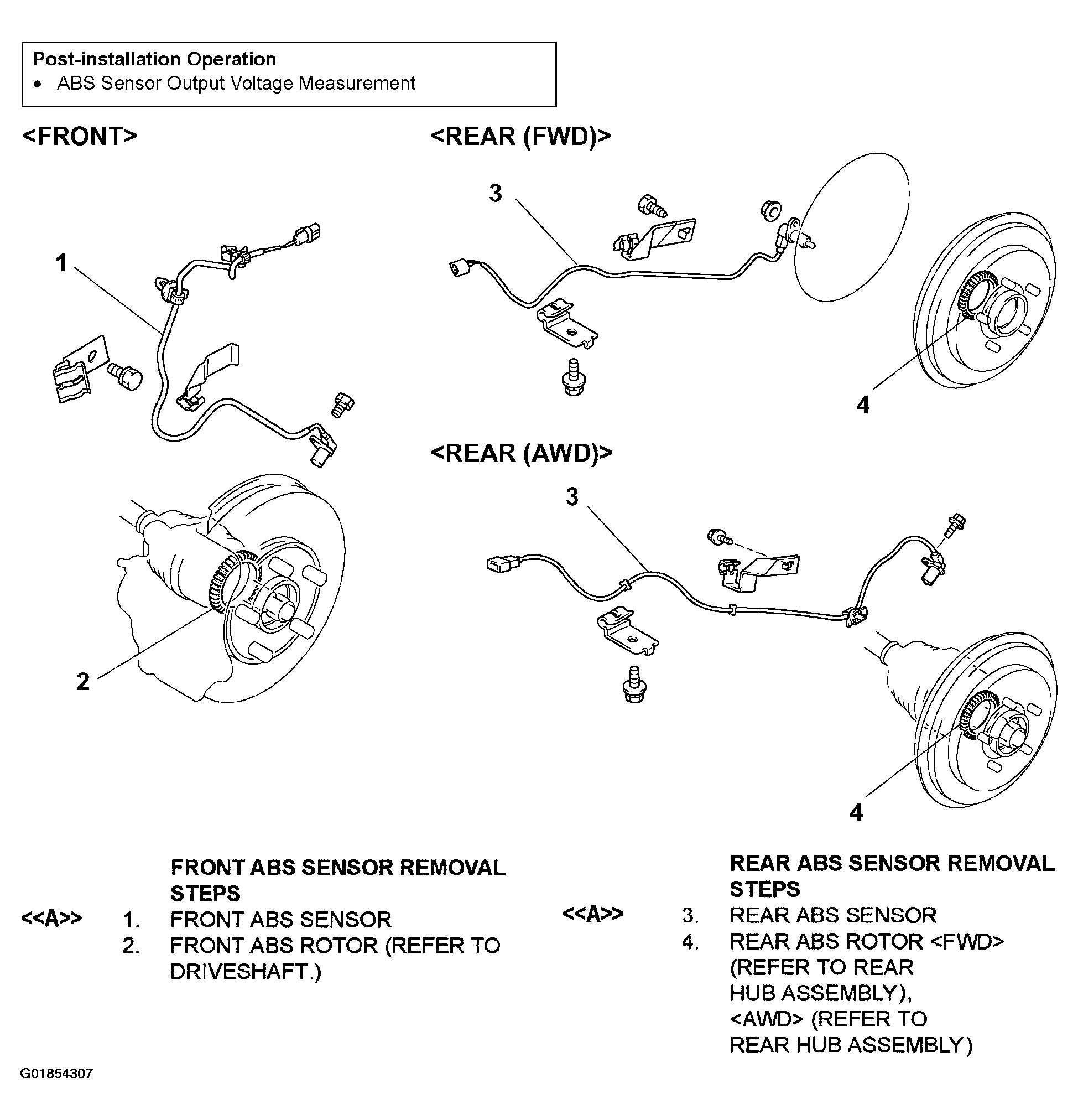

Fig 1: Identifying Wheel Speed Sensor Components

G01854307

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
