Actuator Test Specifications

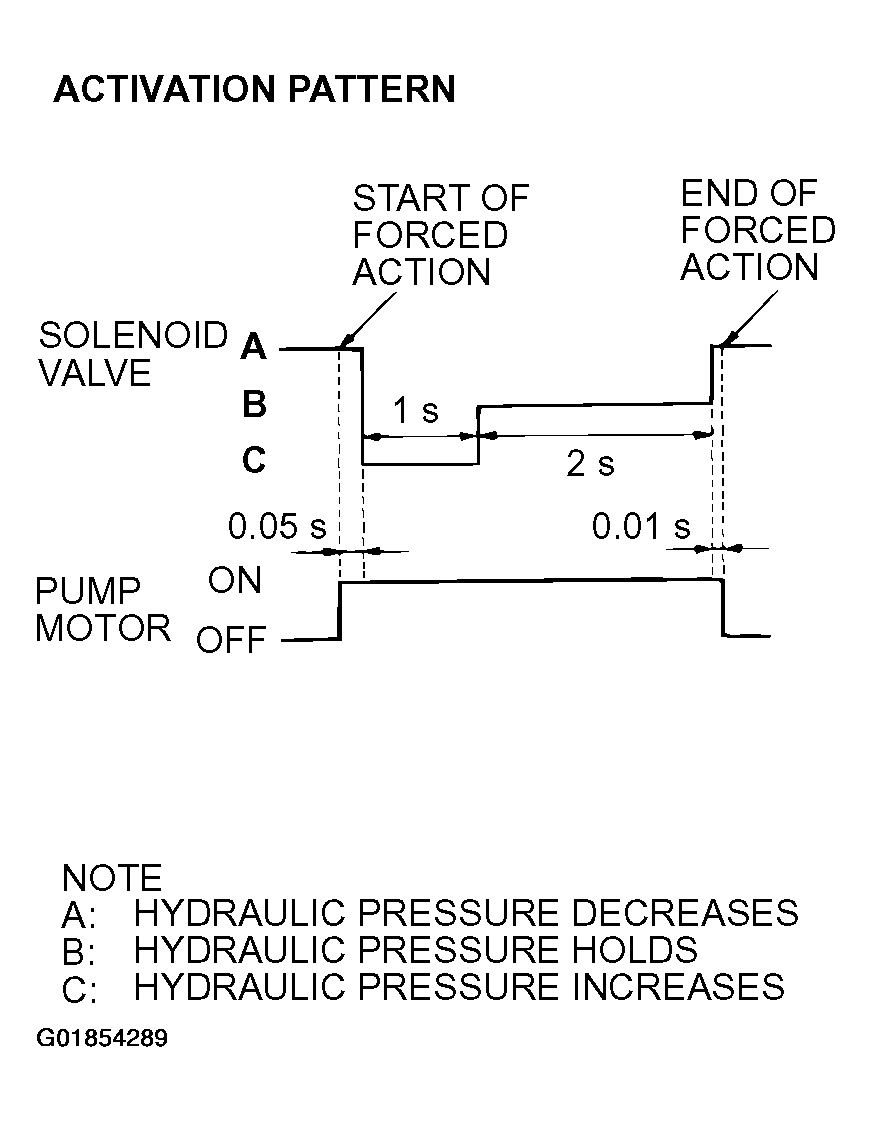

Fig 1: Actuator Test Activation Pattern
G01854289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

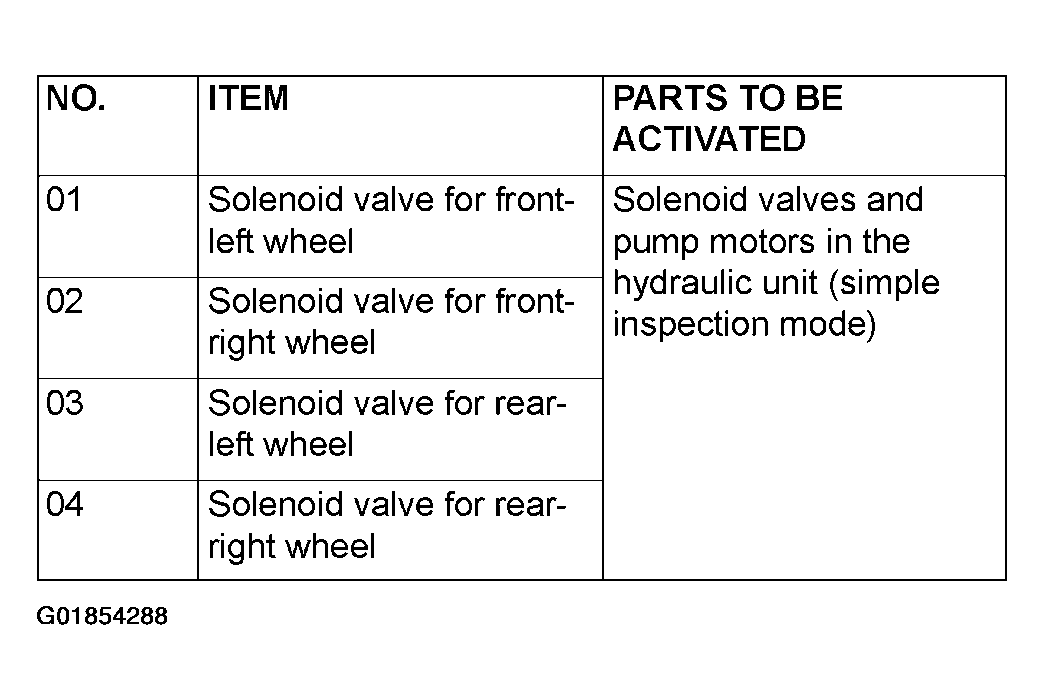

Fig 2: Actuator Test Specifications Table
G01854288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
