Power Window Relay Check

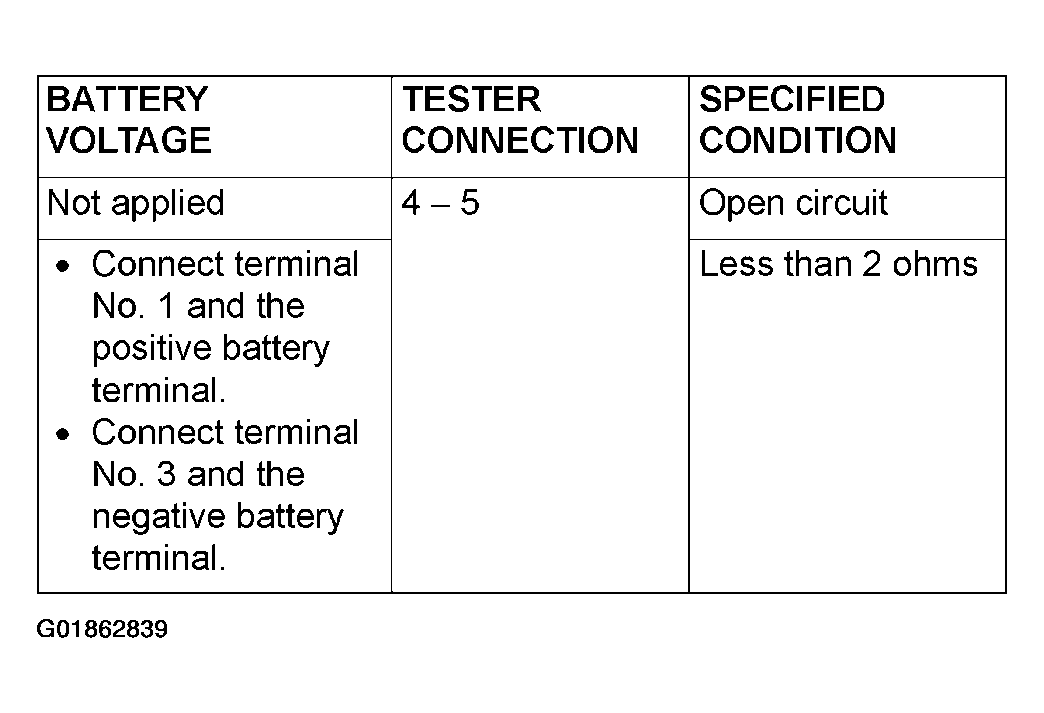

Fig 1: Power Window Relay Check Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

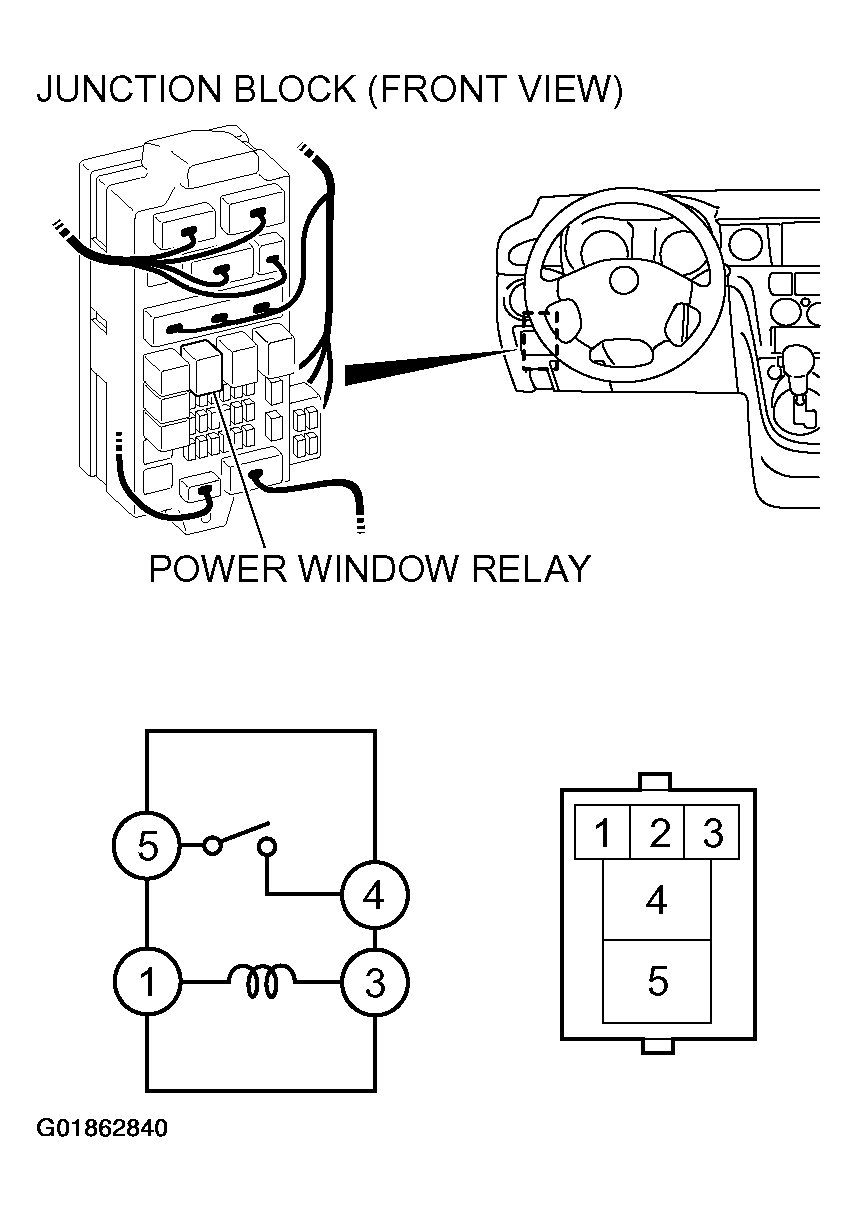

Fig 2: Checking Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
