Removal And Installation: Notes

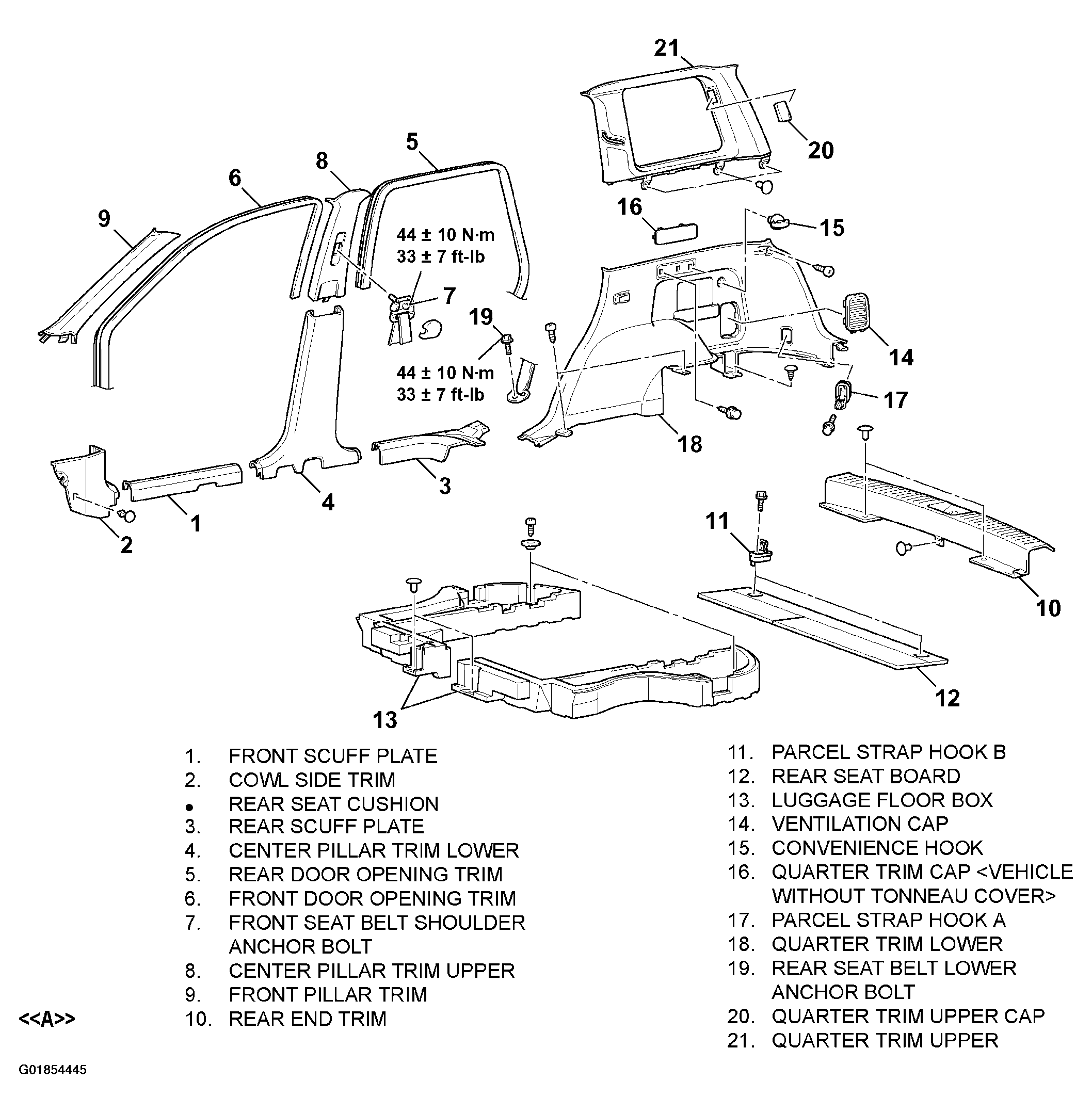

Fig 1: Exploded View Of Trims

G01854445

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
