Notes
DTC 33: Stoplight Switch System: Notes

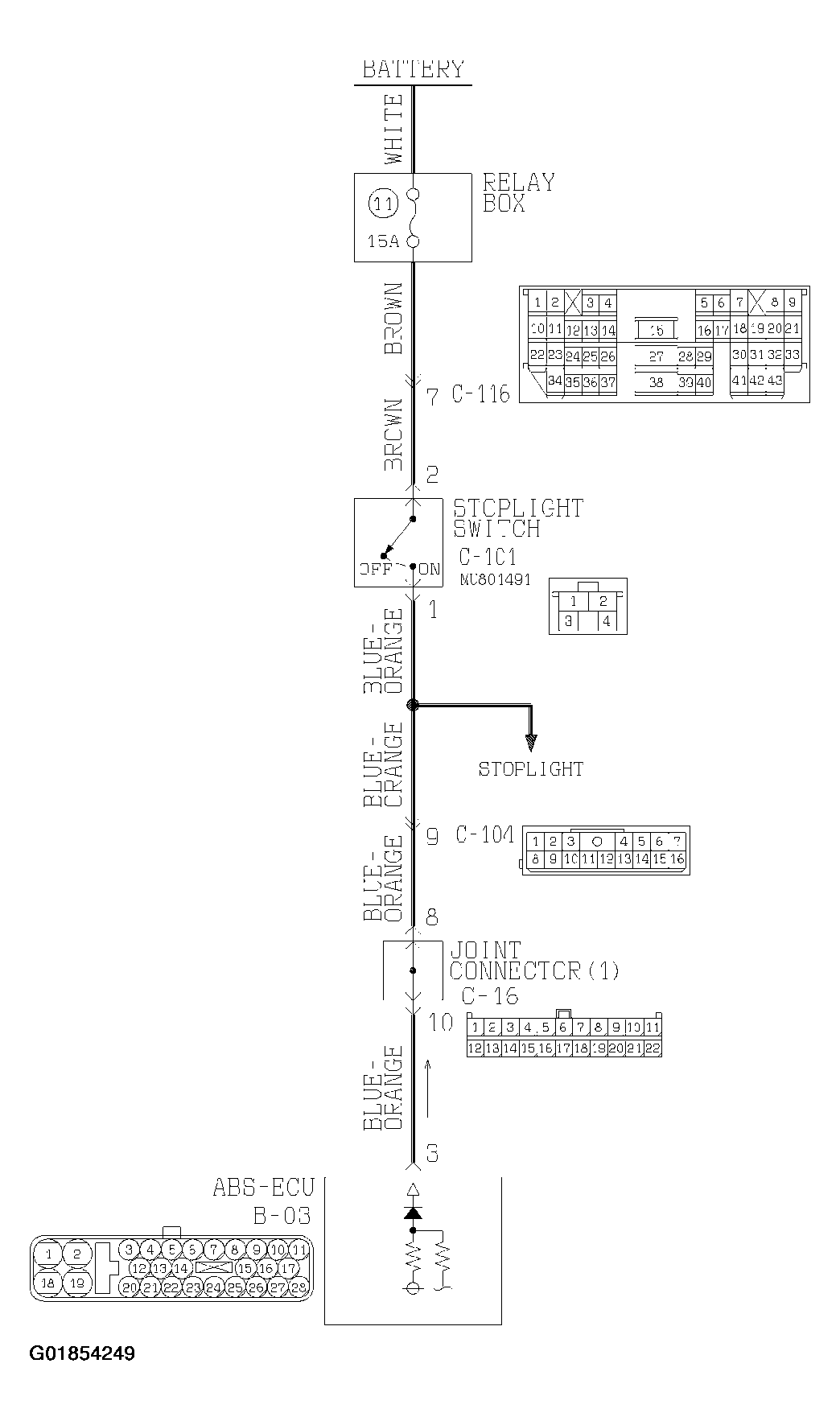

Fig 1: Stoplight Switch Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

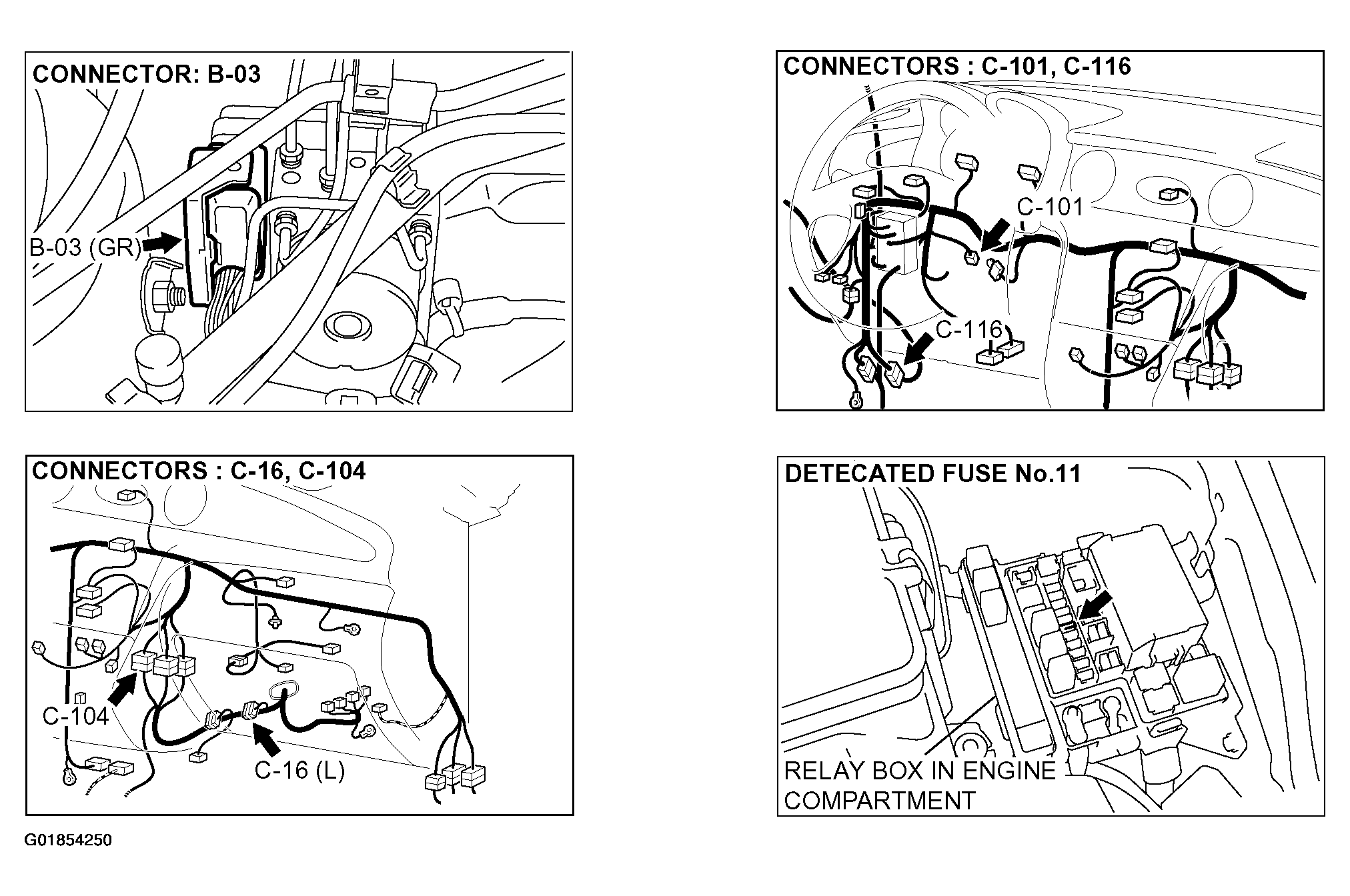

Fig 2: Stoplight Switch Circuit Harness Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
