Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Servicing
>>
Special Tools
Special Tools

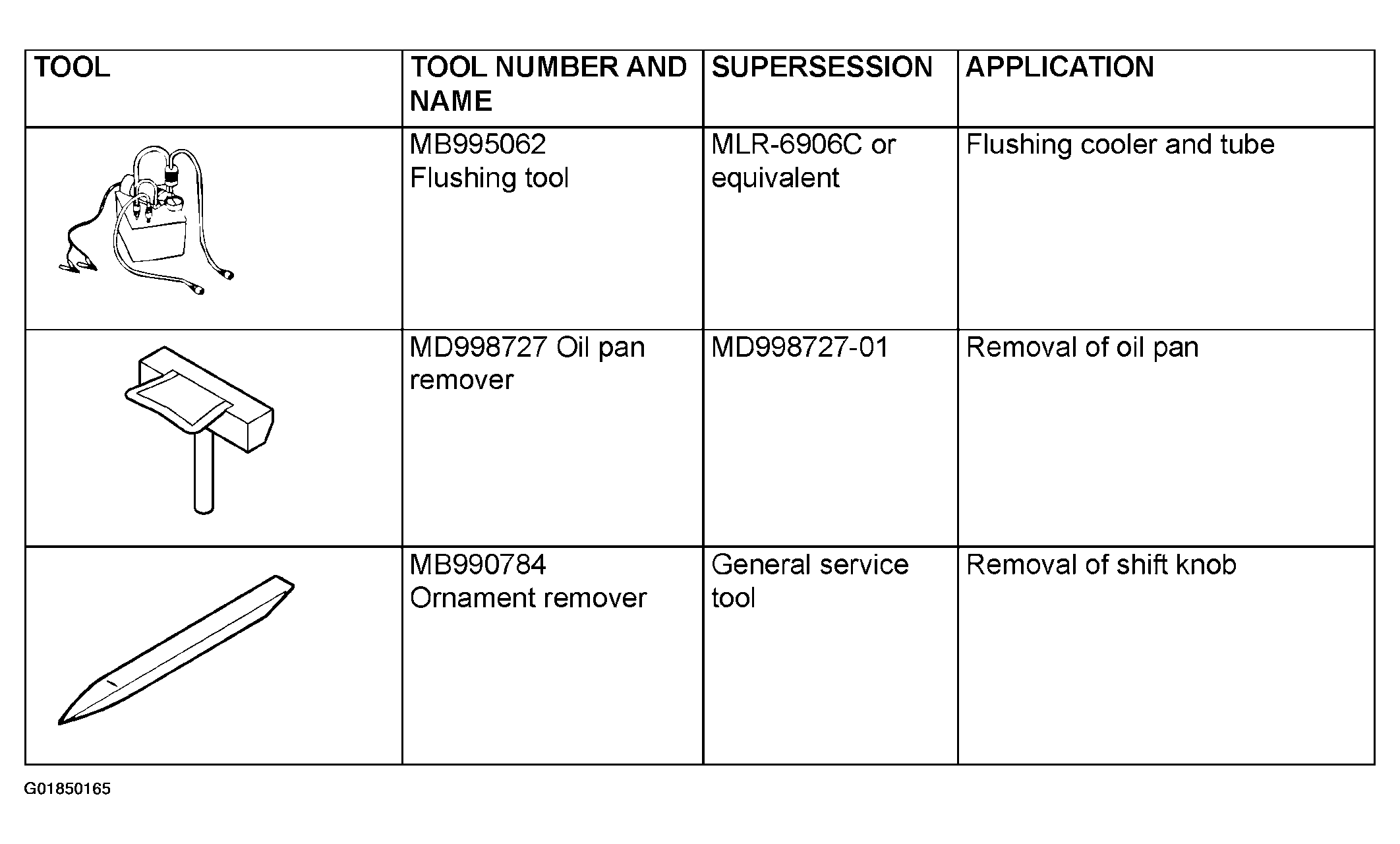

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

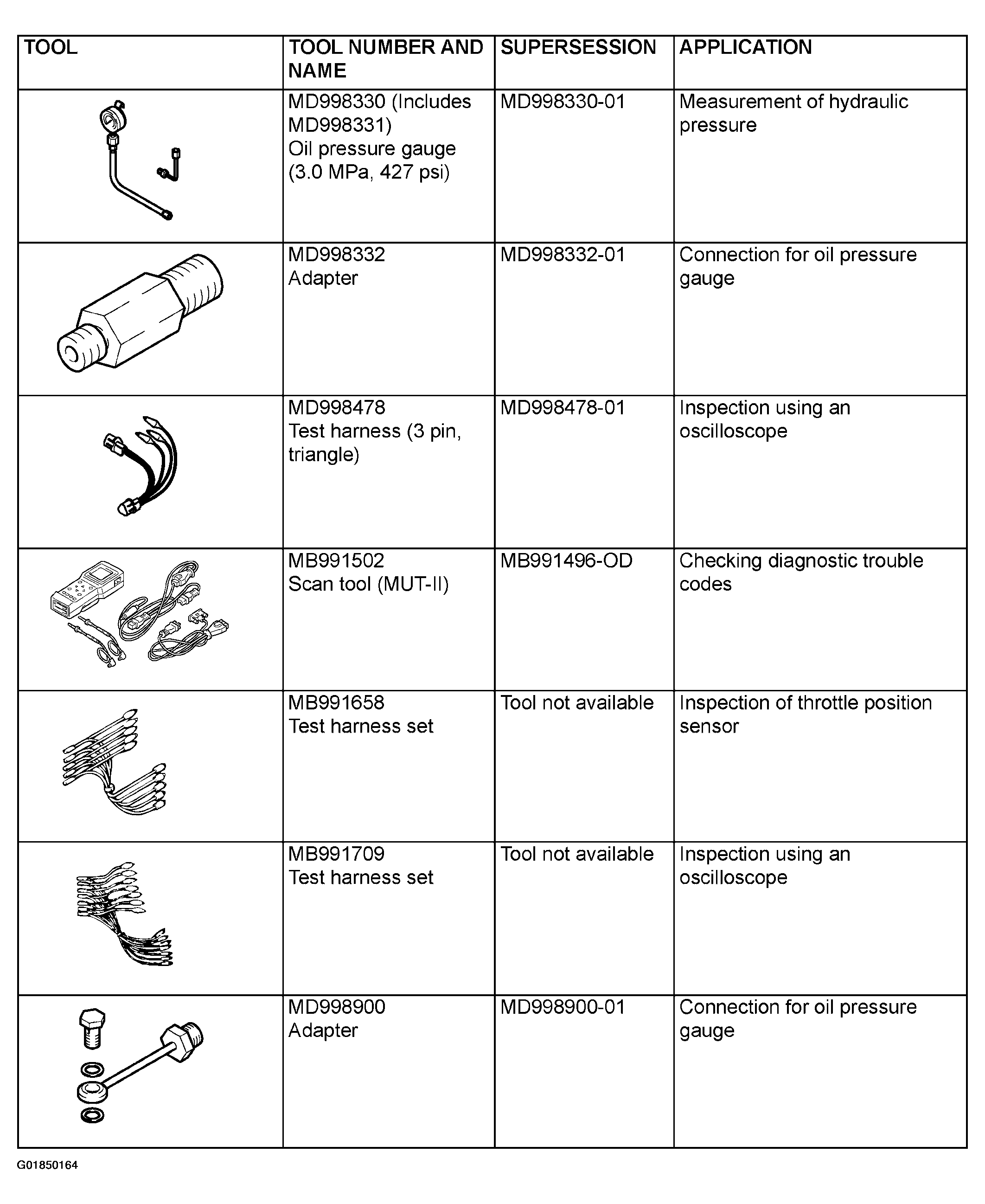

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
