Transfer Oil Replacement

  1. Remove the filler plug.

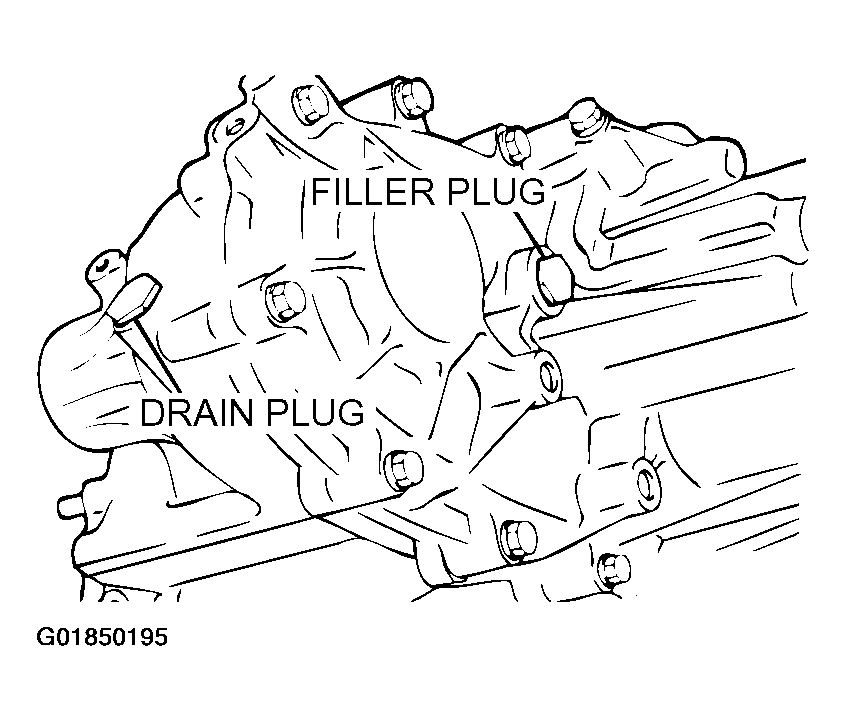

    Fig 1: Removing Filler Plug
    G01850195Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the drain plug and discharge the oil.
  3. Tighten the drain plug to the specified torque.
    1. Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
  4. Fill in oil to the bottom of the filler plug hole.
    1. Specified oil: Gear oil SAE 75W - 90 or 75W - 85W conforming to API classification GL-4
    2. Quantity: 2.8 dm 3  (3.0 quarts)
  5. Tighten the filler plug to the specified torque.
    1. Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
