Removal And Installation: Notes

CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

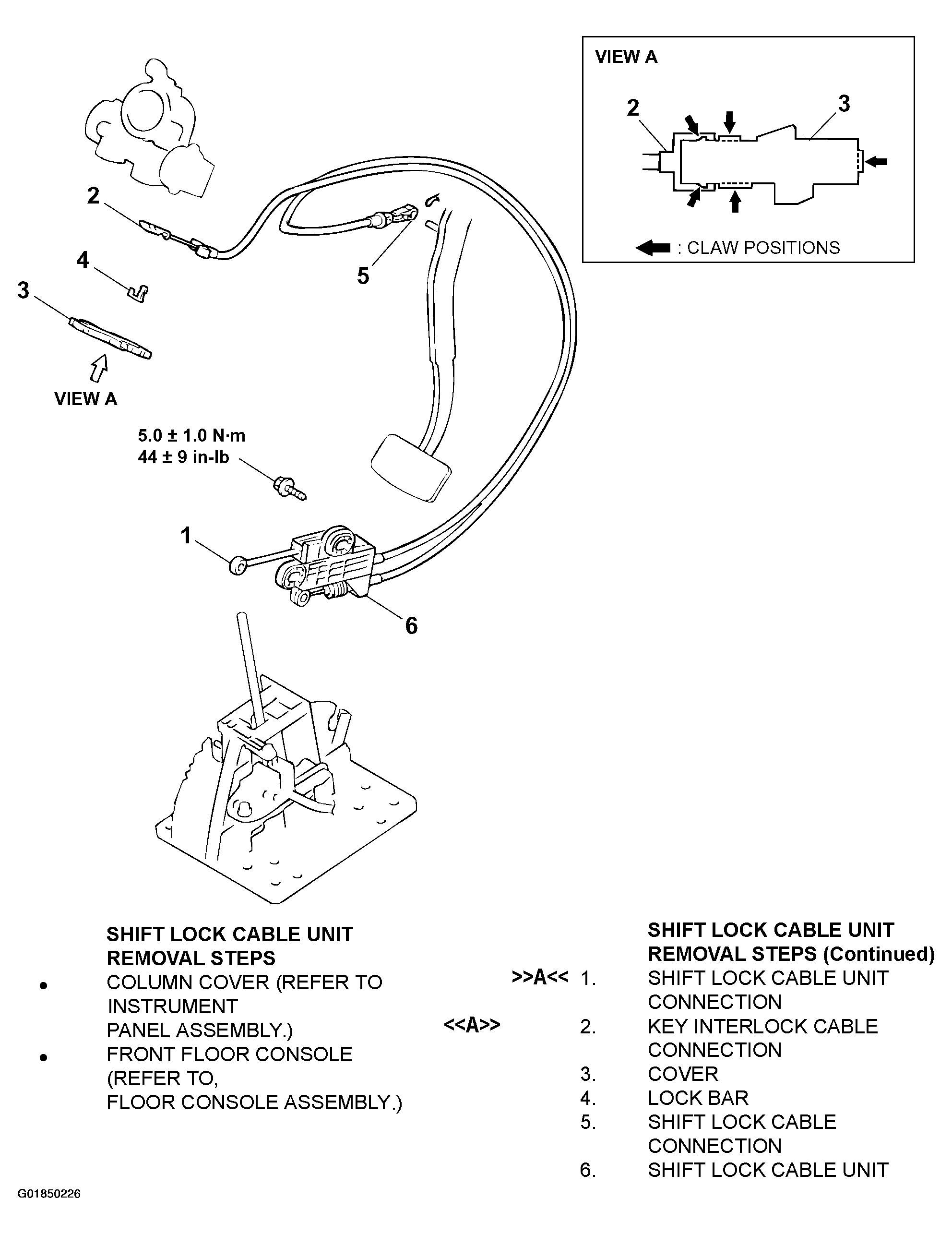

Fig 1: Removing/Installing Of A/T Key Interlock & Shift Lock Mechanisms
G01850226Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
