Disassembly And Assembly

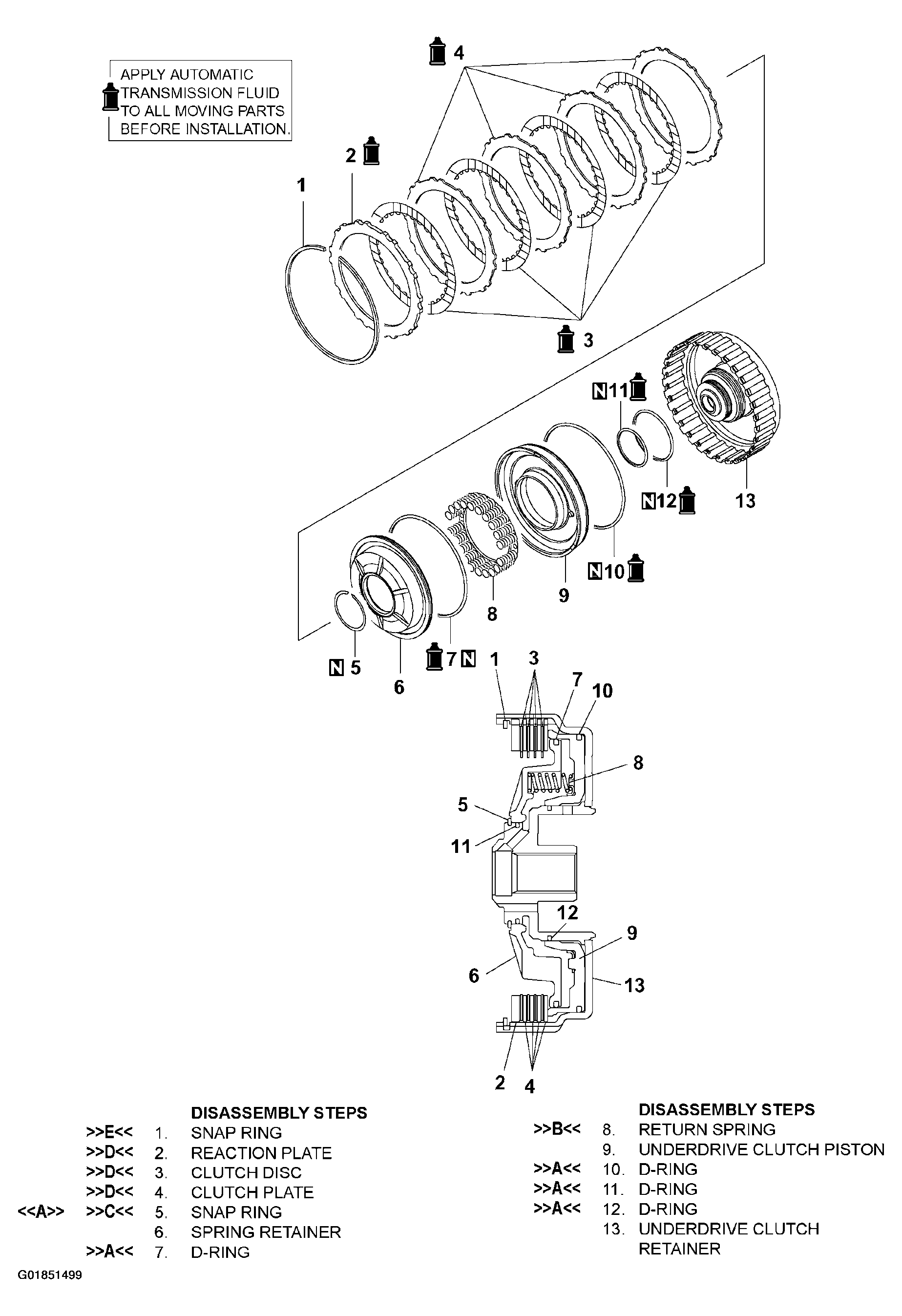

Fig 1: Disassembly & Assembly Of Underdrive Clutch
G01851499Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
