Home
>>
Mitsubishi
>>
2003
>>
Montero XLS
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Overhaul
>>
Transmission And Transfer
>>
Disassembly And Assembly
Disassembly And Assembly

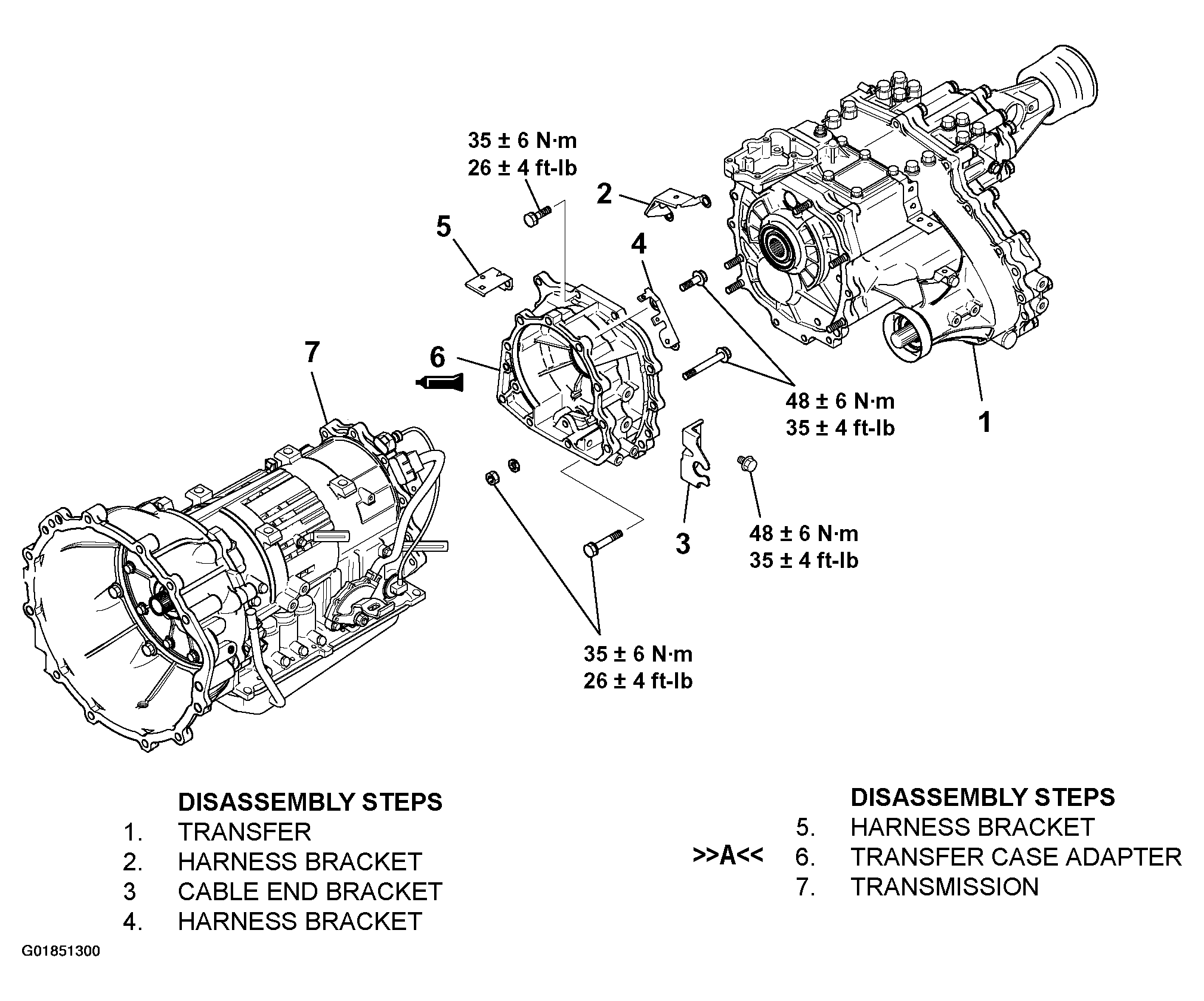

Fig 1: Disassembly/Assembly Of Transmission & Transfer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
