Home >> Mitsubishi >> 2003 >> Montero XLS >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle >> Inner Shaft Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

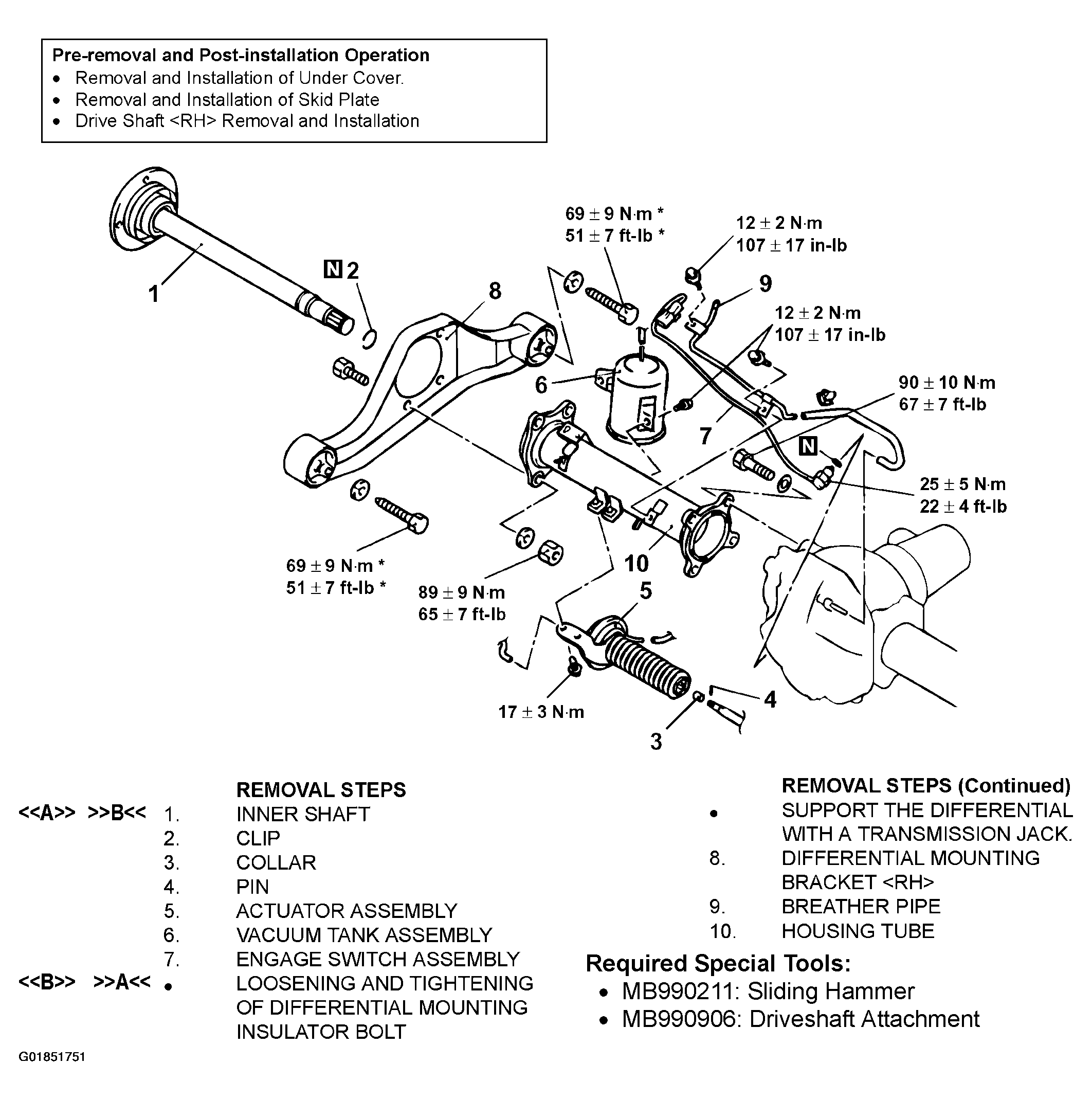

Fig 1: Removing And Installing Inner Shaft Assembly

G01851751

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
