Disassembly And Assembly: Notes

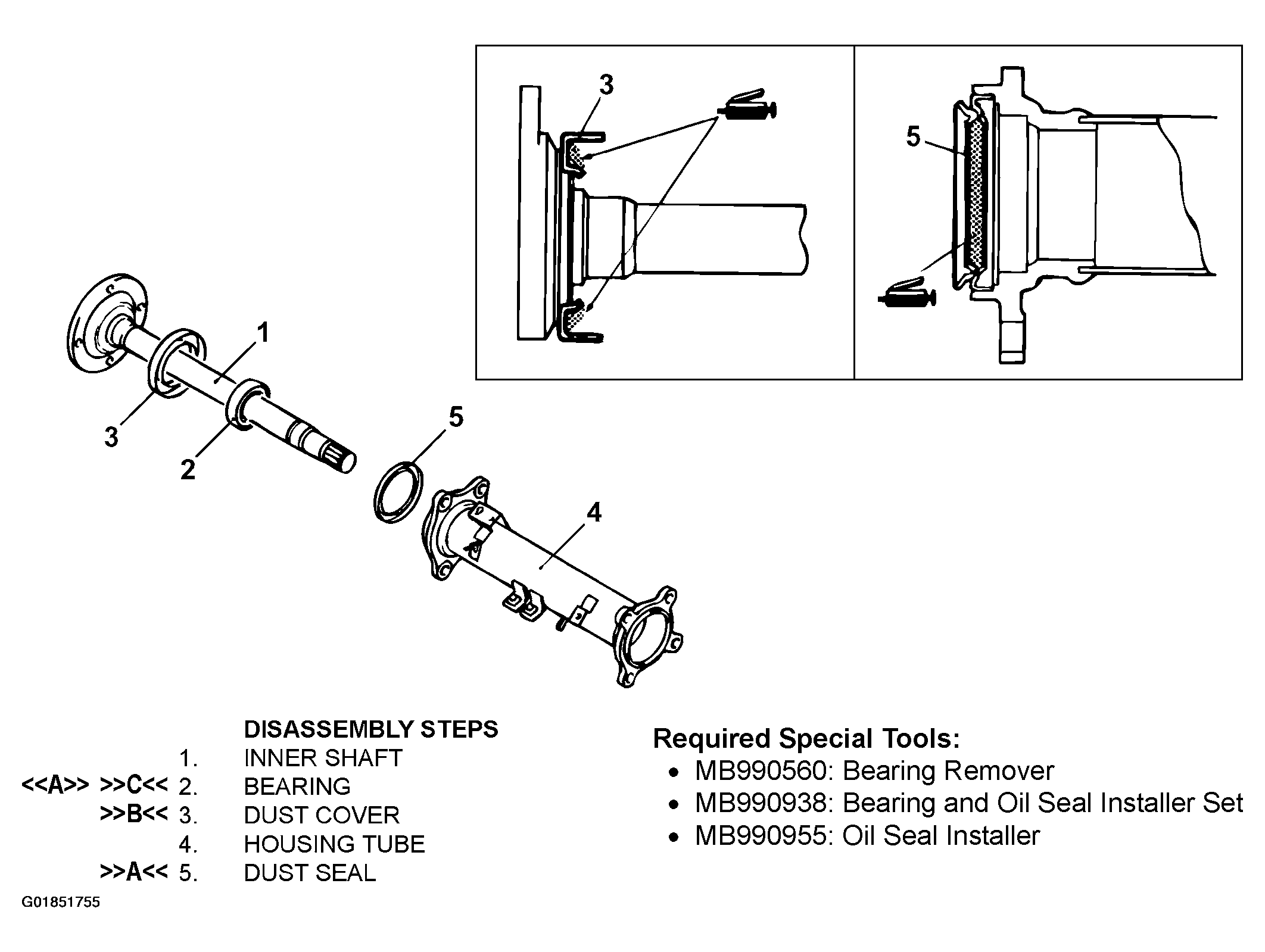

Fig 1: Disassembling And Assembling Inner Shaft

G01851755

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
