Removal And Installation: Notes

CAUTION: *:Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

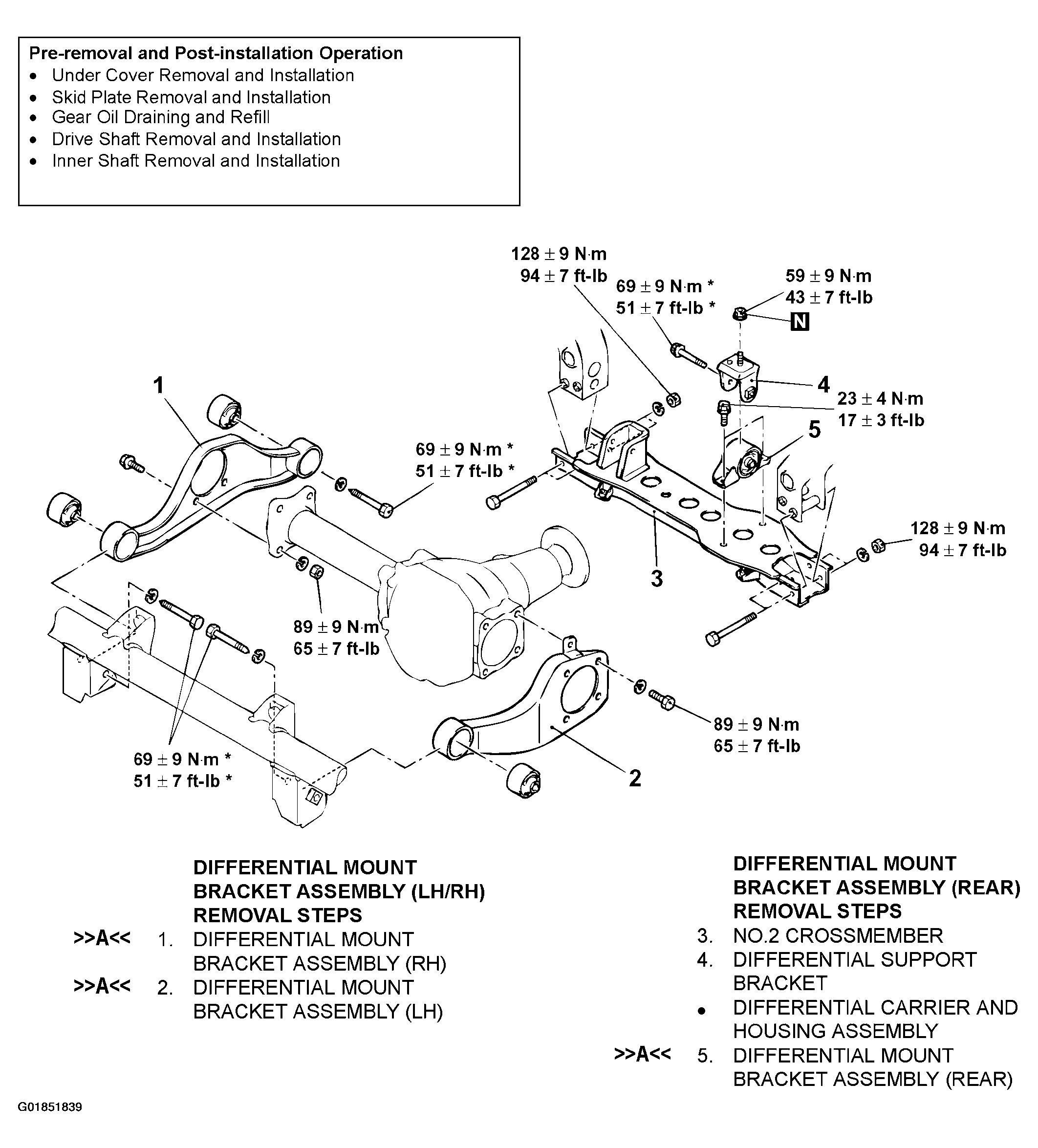

Fig 1: Removing And Installing Front Differential Mount
G01851839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
