Home >> Mitsubishi >> 2003 >> Montero XLS >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle >> Drive Shaft Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

CAUTION: Never disassemble the UJ assembly except when replacing the UJ boot.

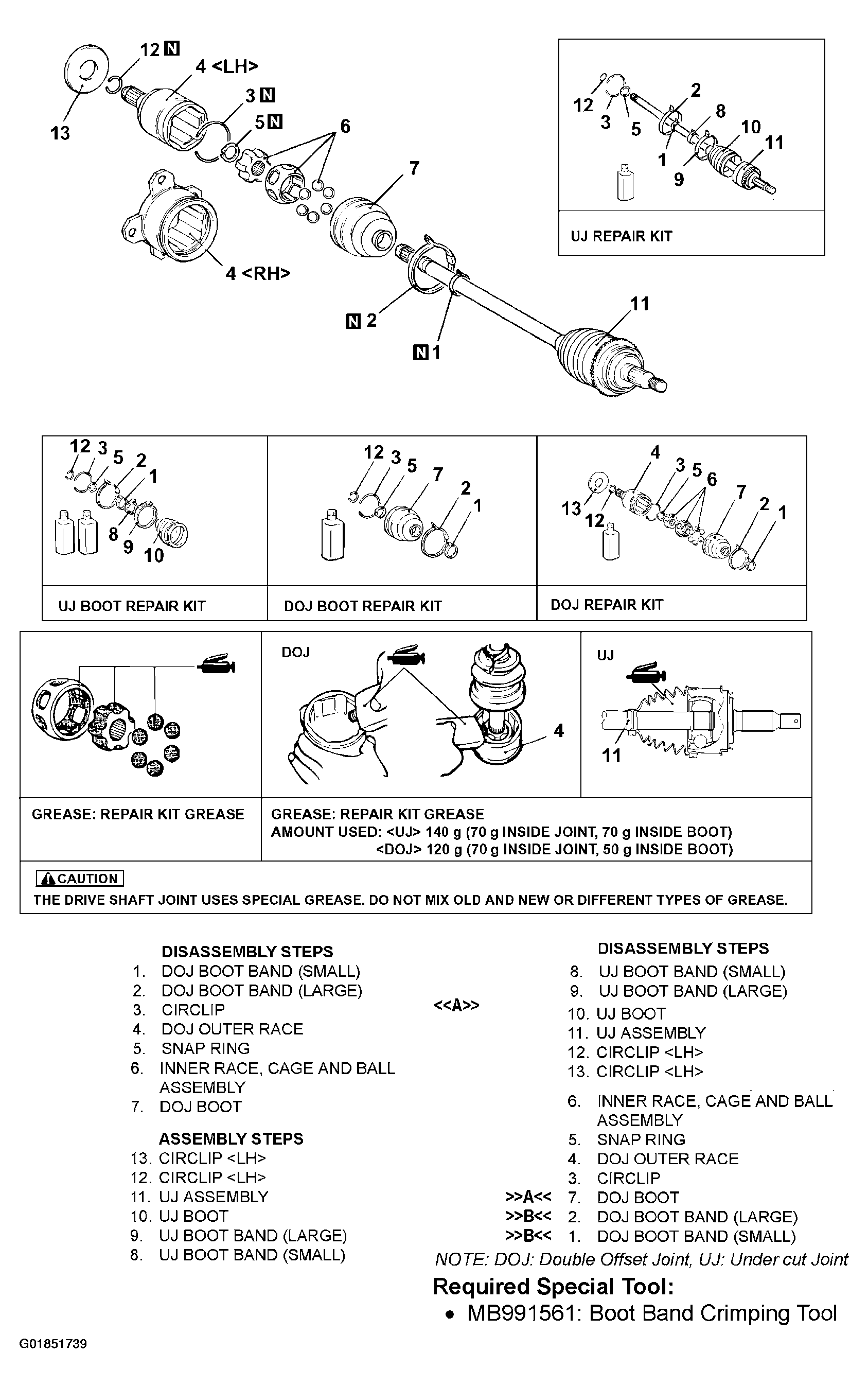

Fig 1: Disassembling And Assembling Drive Shaft Assembly
G01851739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
