Home >> Mitsubishi >> 2003 >> Montero XLS >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Gear Box Assembly >> Disassembly & Assembly >> Notes

Disassembly & Assembly: Notes

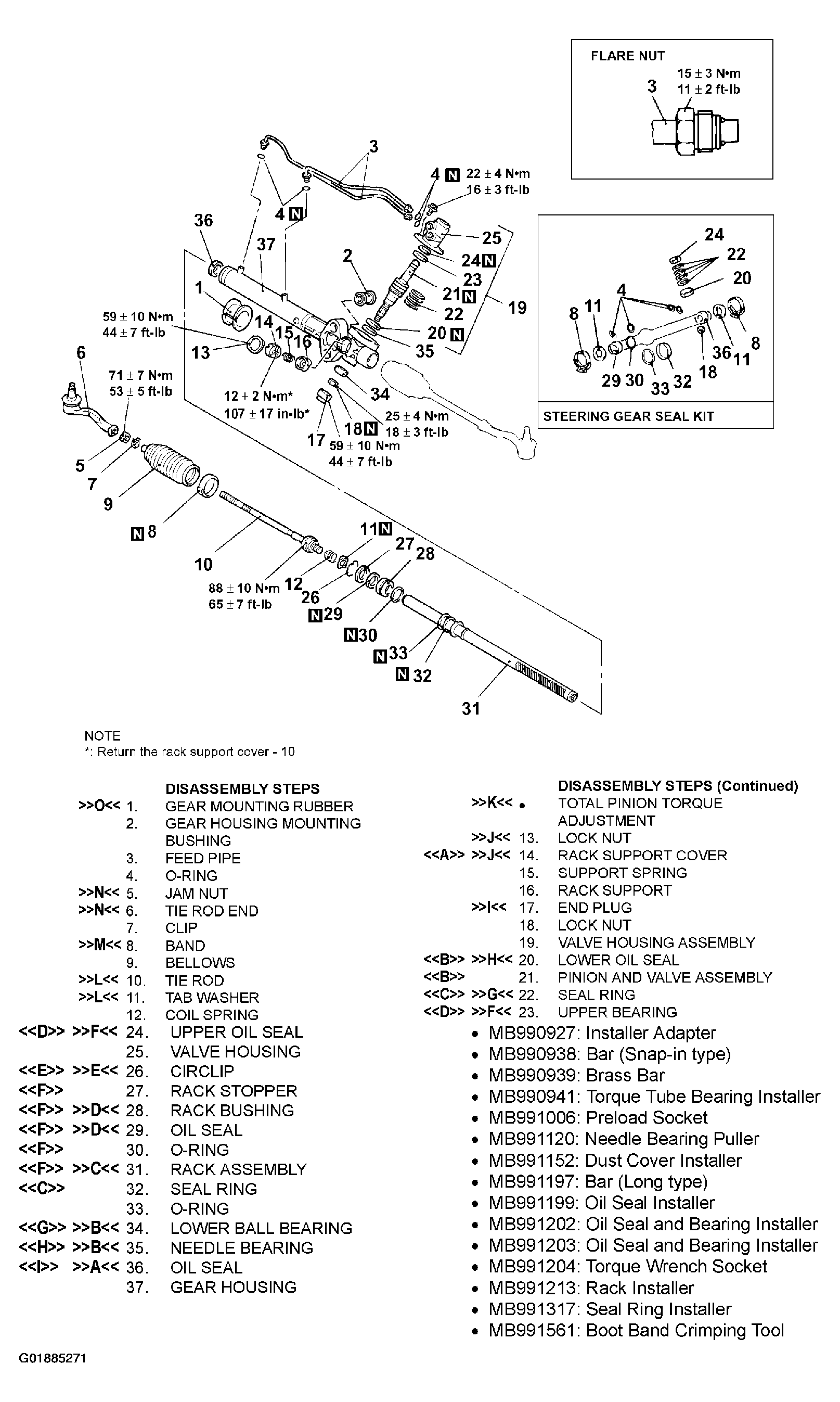

Fig 1: Exploded View & Torque Specifications Of Power Steering Gear Box Assembly

G01885271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
