Intake Manifold Plenum Removal And Installation: Notes

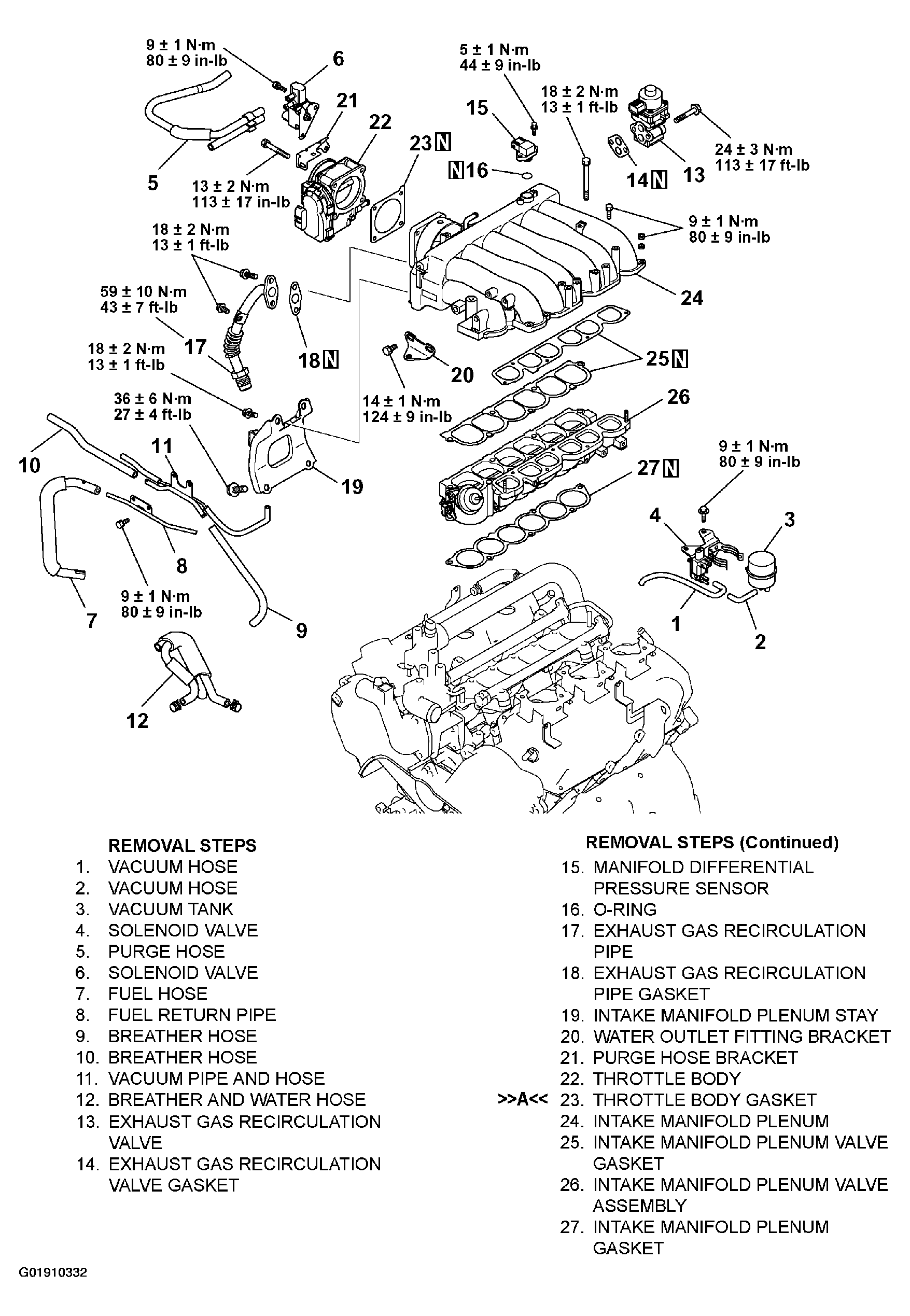

Fig 1: Removing/Installing Intake Manifold Plenum

G01910332

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
