Removal And Installation: Notes

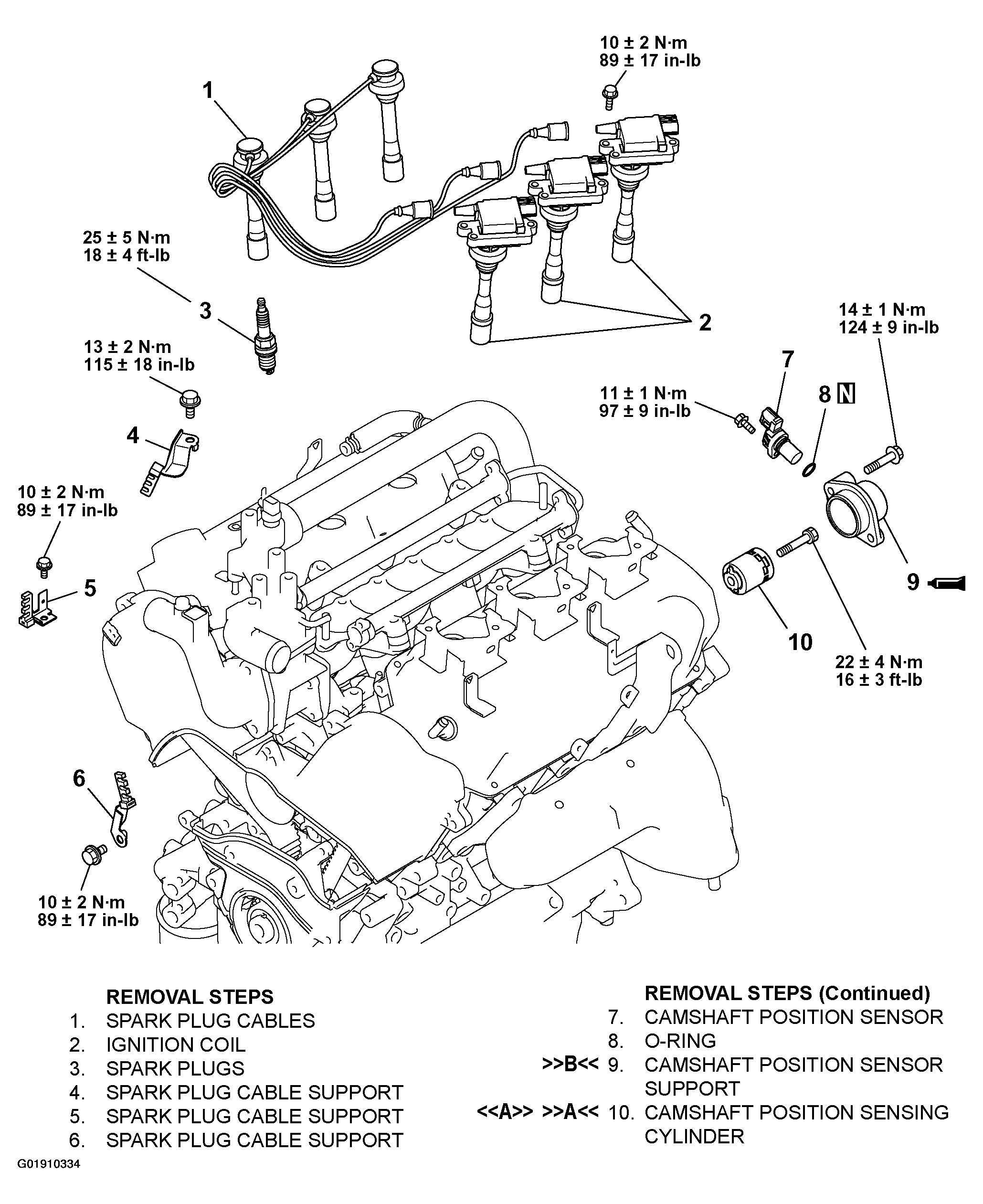

Fig 1: Removing/Installing Ignition System
G01910334Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
