Home >> Mitsubishi >> 2003 >> Montero XLS >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling >> Water Pump >> Removal And Installation >> Notes

Removal And Installation: Notes

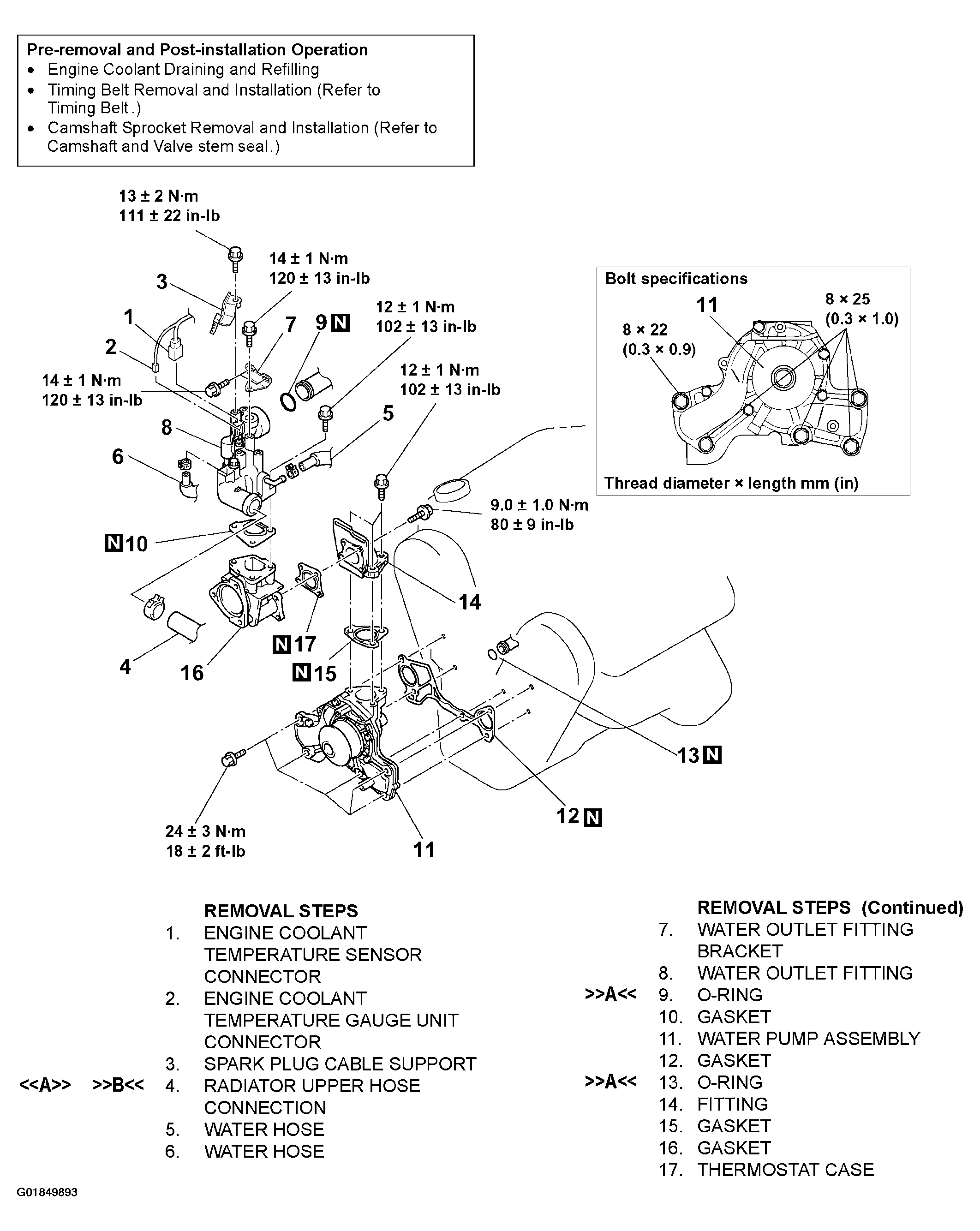

Fig 1: Removing & Installing Water Pump
G01849893Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
