Radiator Removal And Installation: Notes

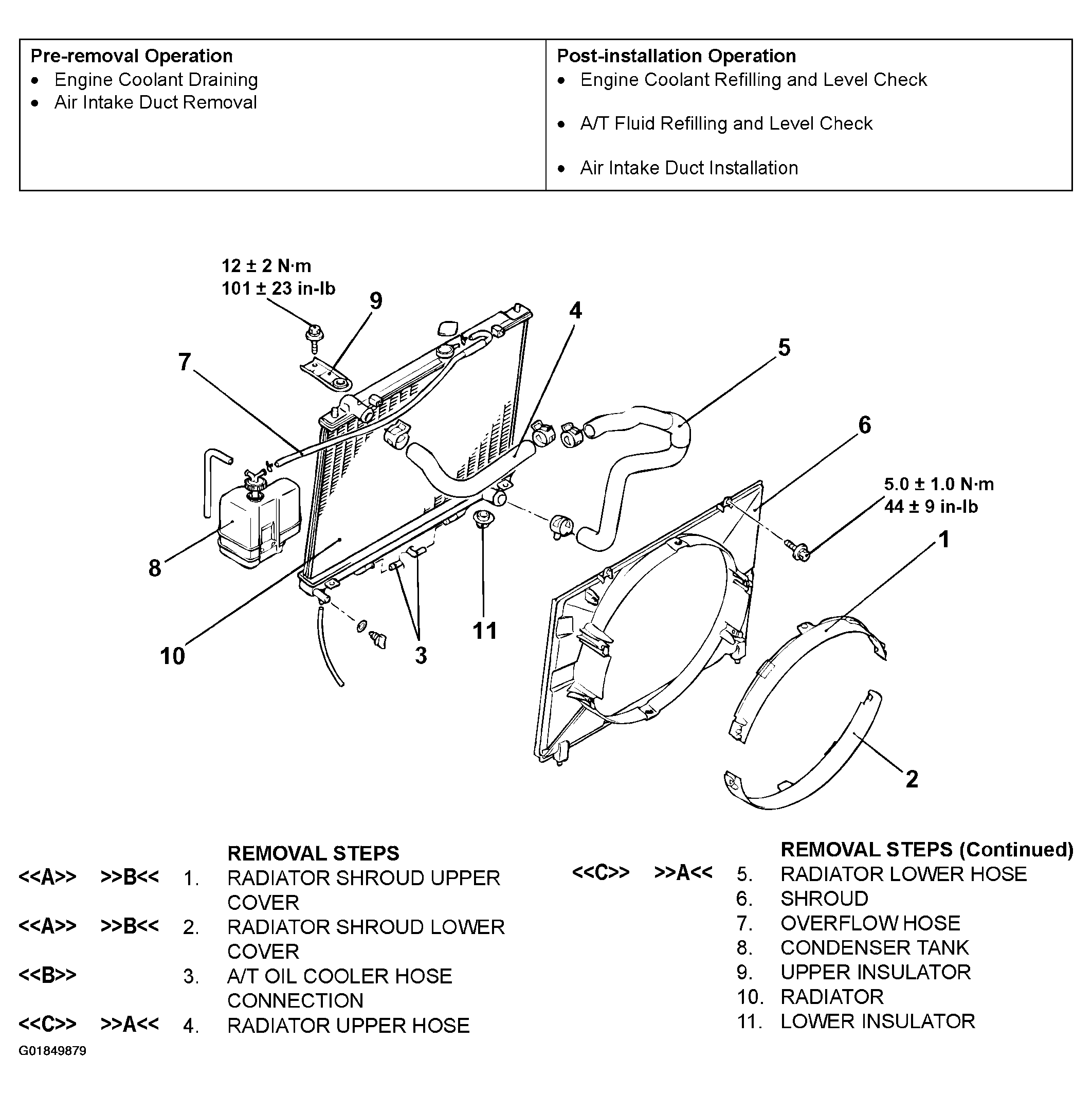

Fig 1: Removing & Installing Radiator

G01849879

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
