Removal & Installation: Notes

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG RESTRAINT SYSTEMS .

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.

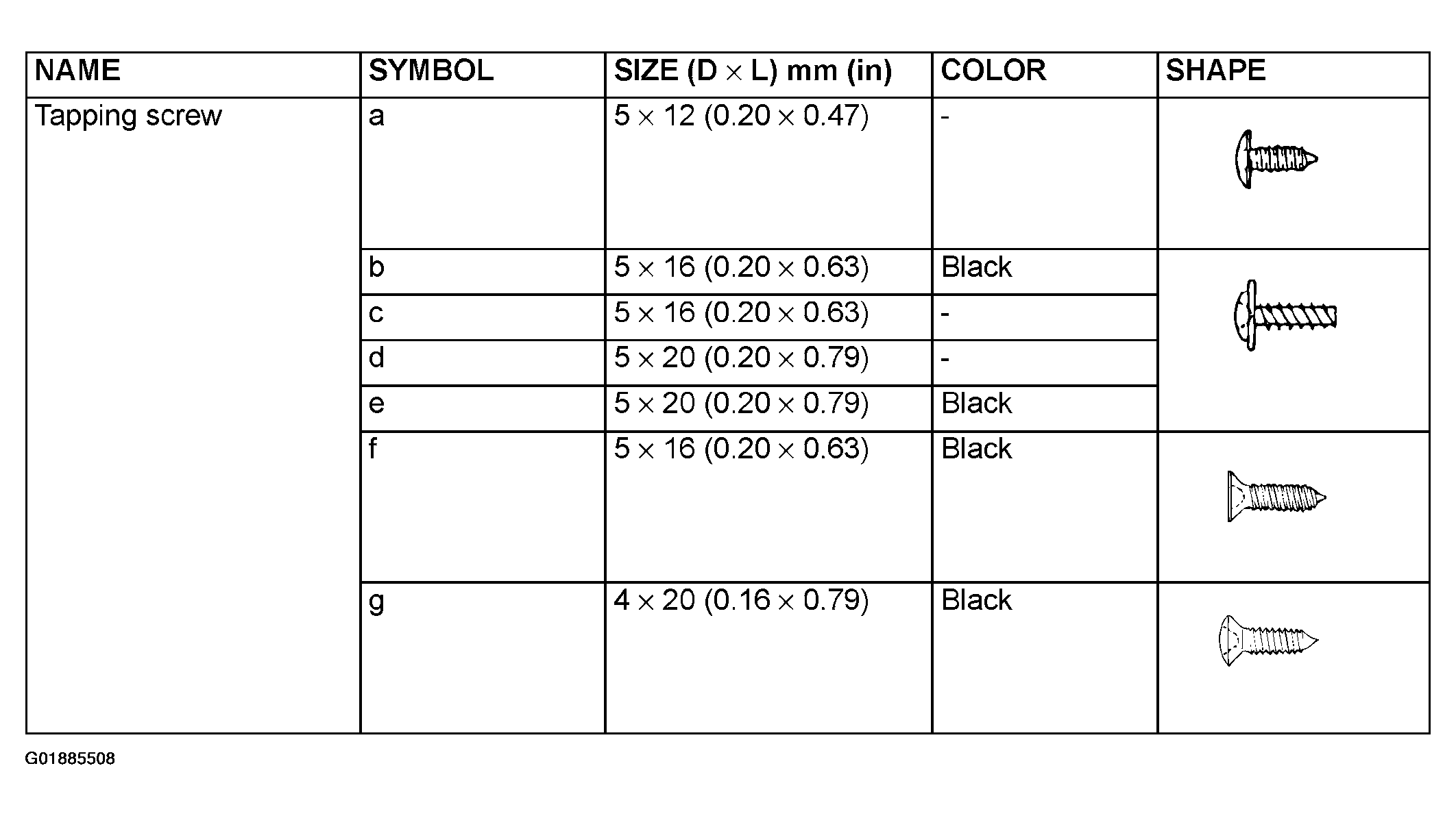

Fig 1: Instrument Panel Assembly Fastener Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

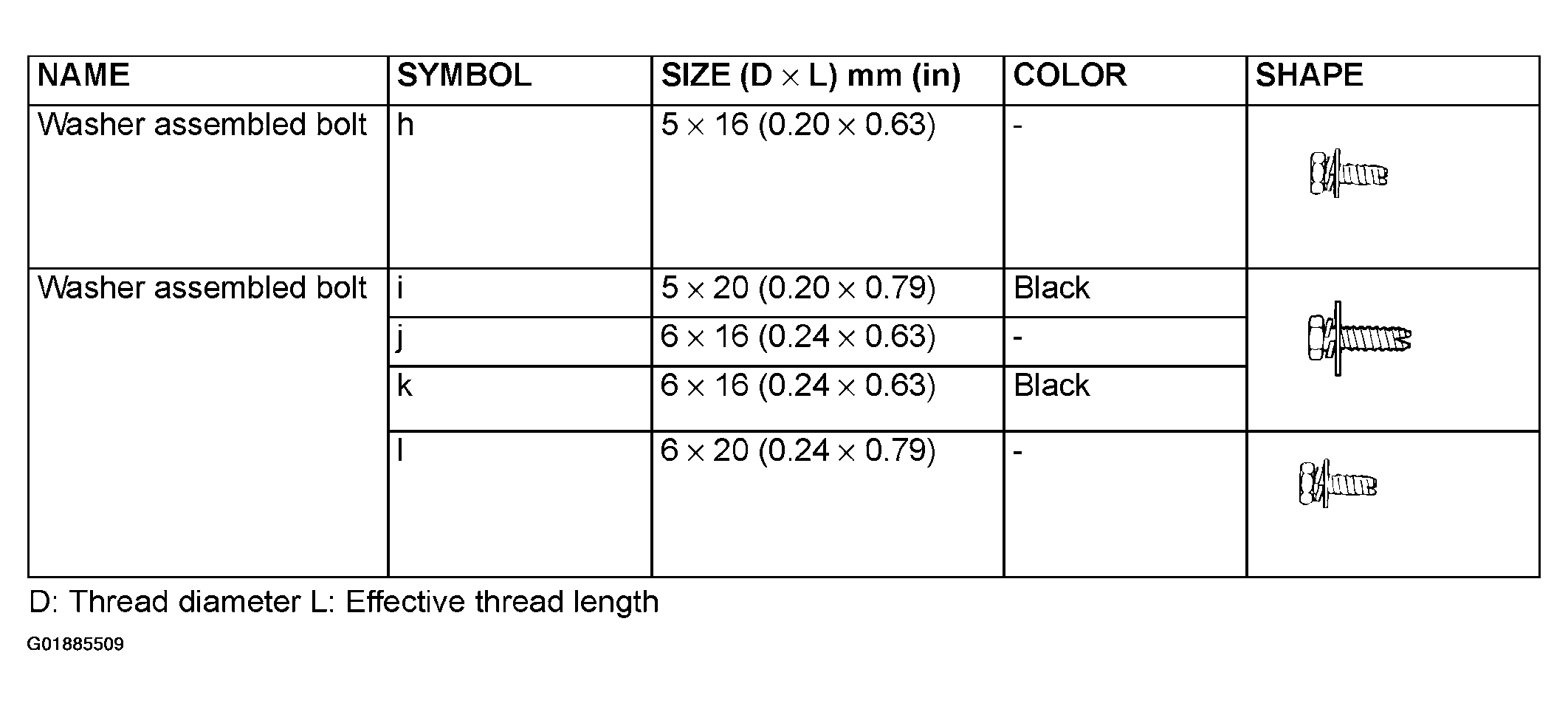

Fig 2: Instrument Panel Assembly Fastener Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

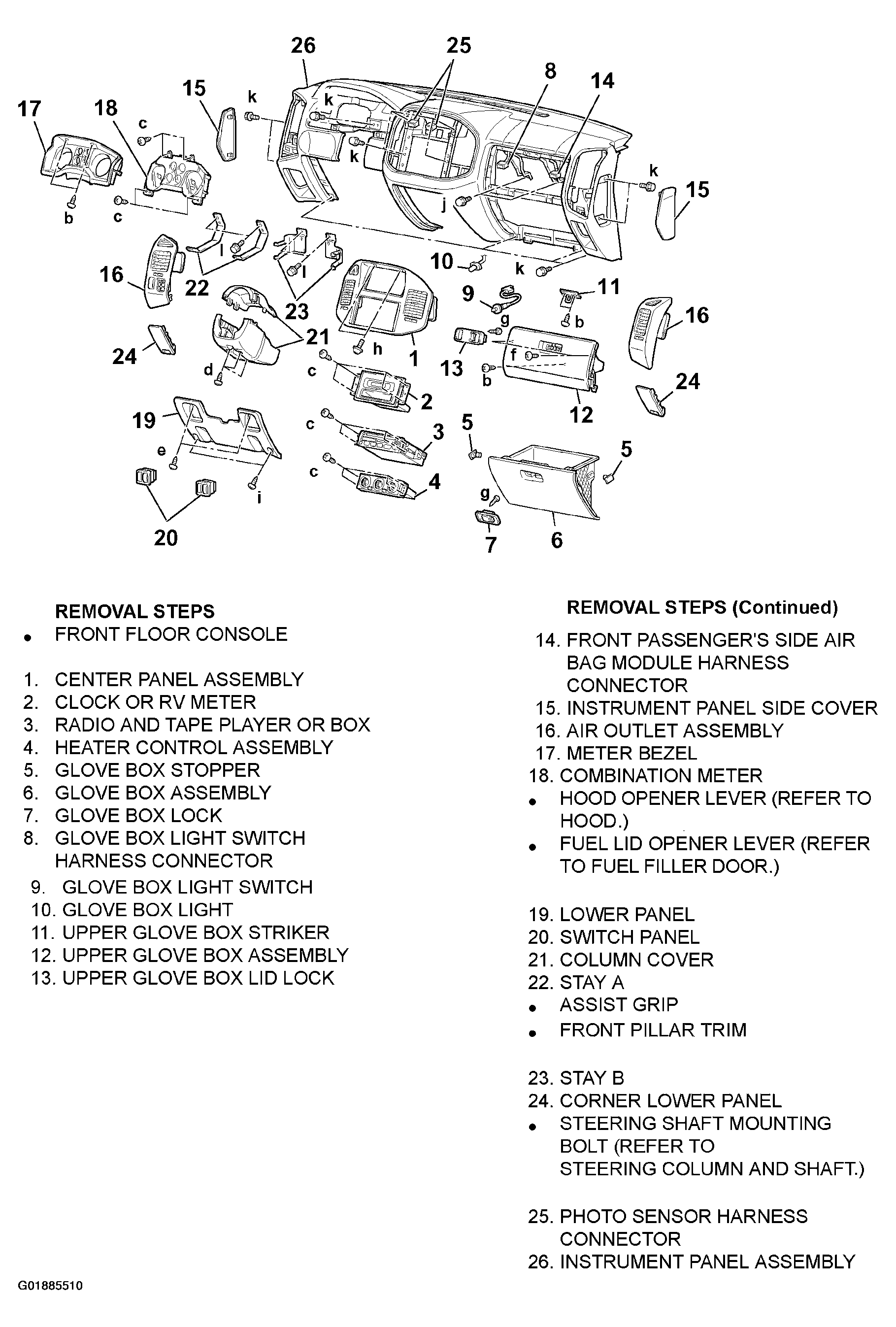

Fig 3: Removing & Installing Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
