Home >> Mitsubishi >> 2003 >> Montero XLS >> Repair and Diagnosis >> Brakes >> Traction Control >> Traction Control System (TCL) >> M-ASTC Diagnosis >> Symptom Chart

Symptom Chart

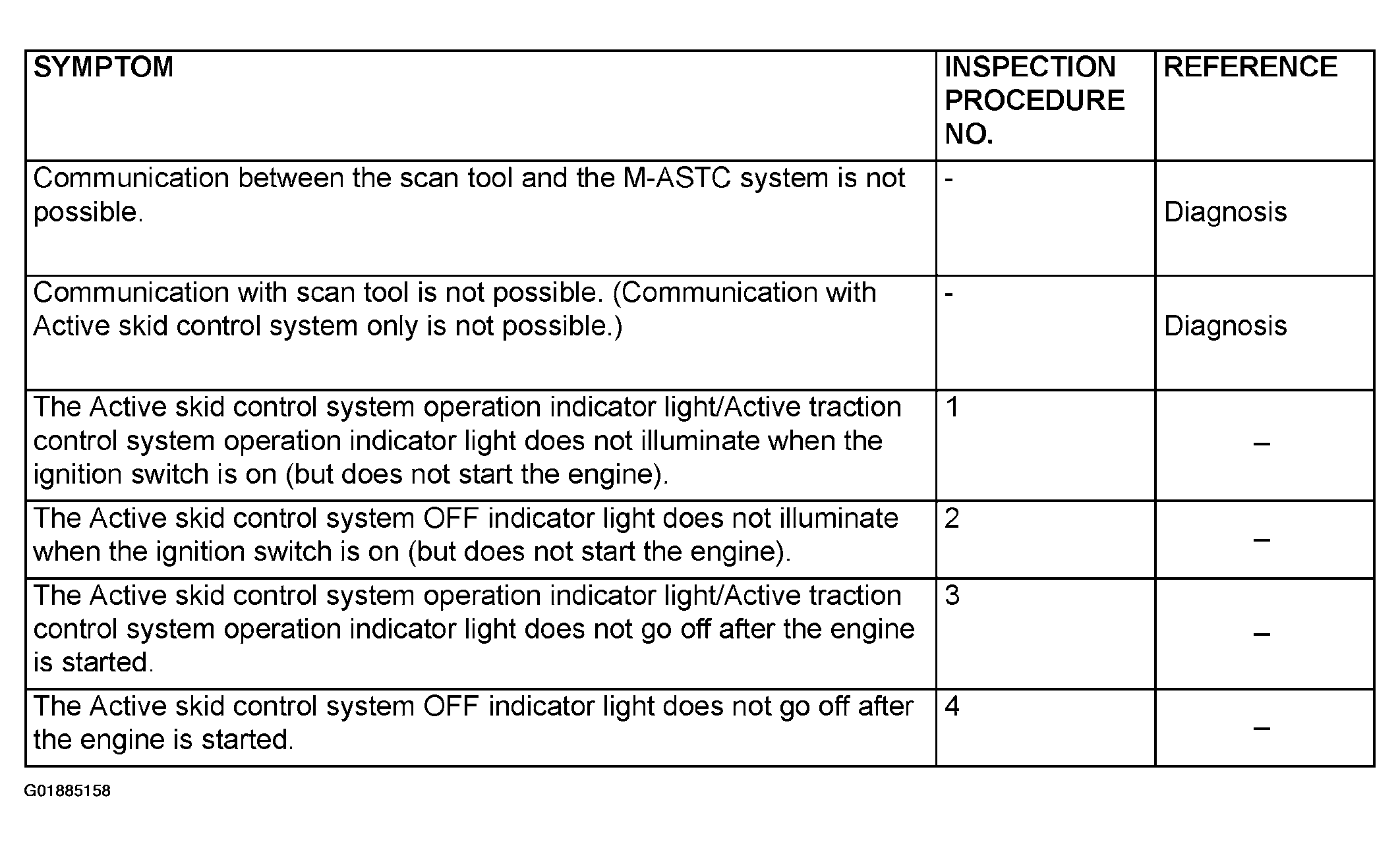

Fig 1: Symptom Chart

G01885158

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
