DTC 17: Defective active skid control switch: Notes

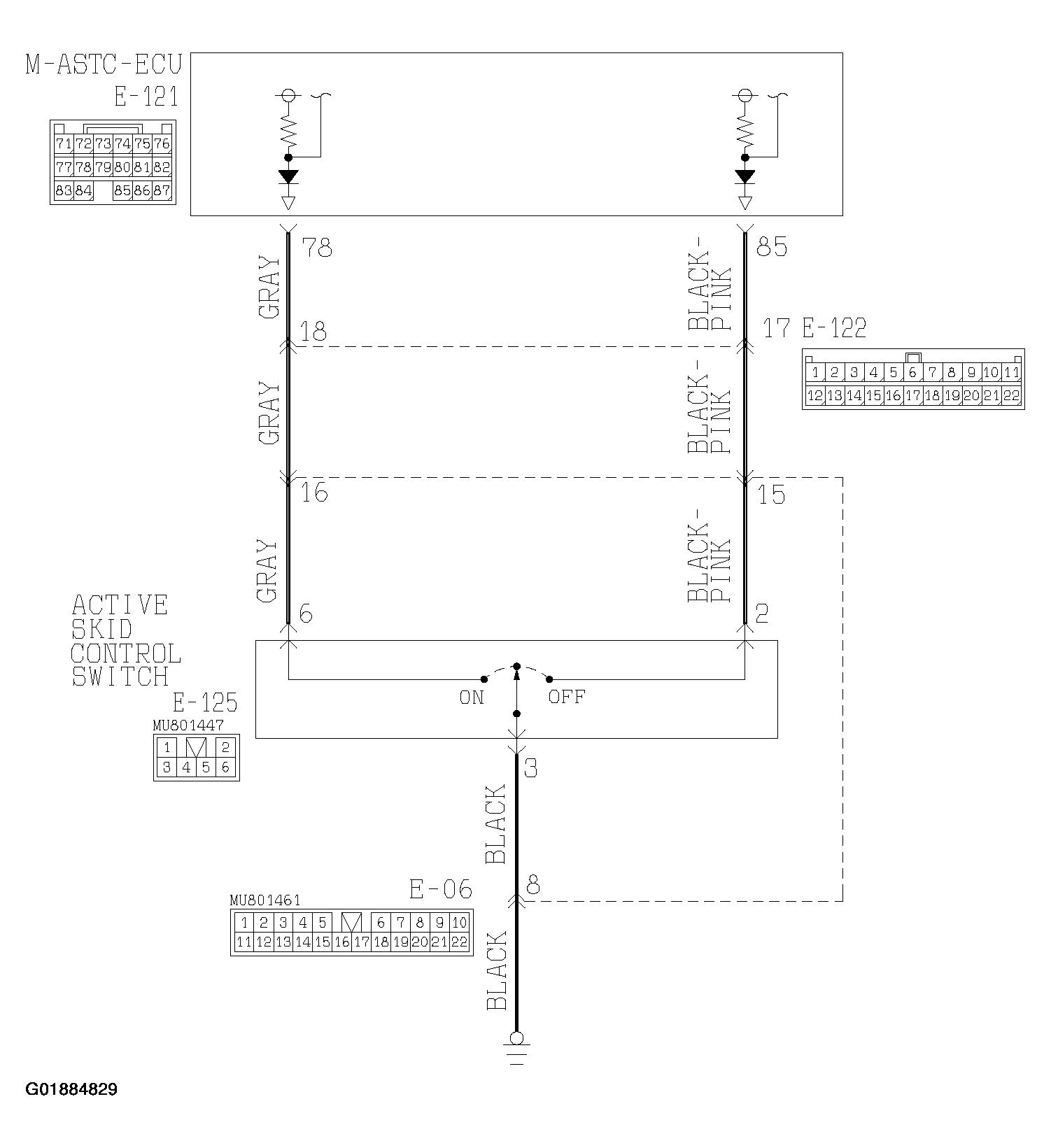

Fig 1: Active Skid Control Switch Circuit Diagram
G01884829Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

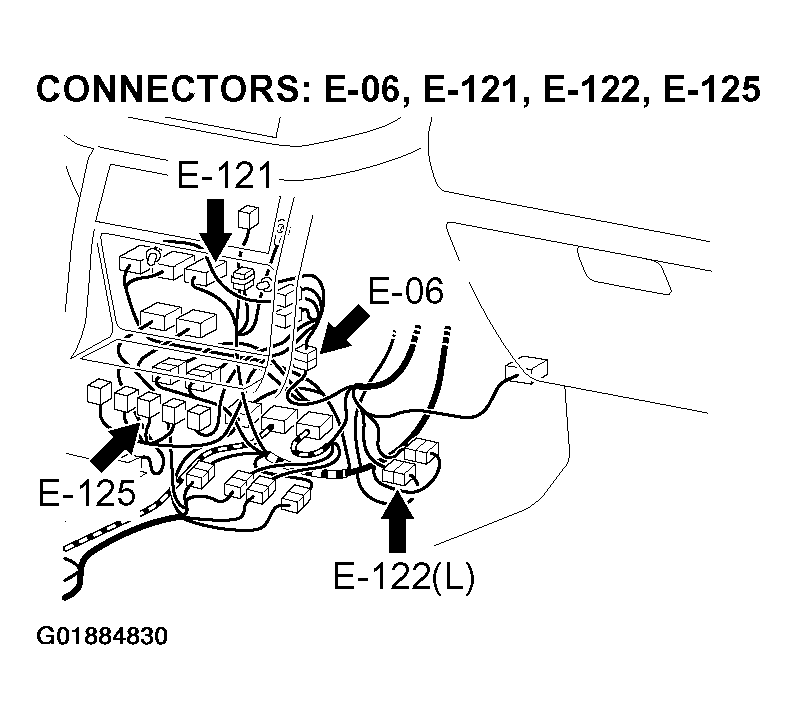

Fig 2: Active Skid Control Switch Circuit Connectors
G01884830Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
